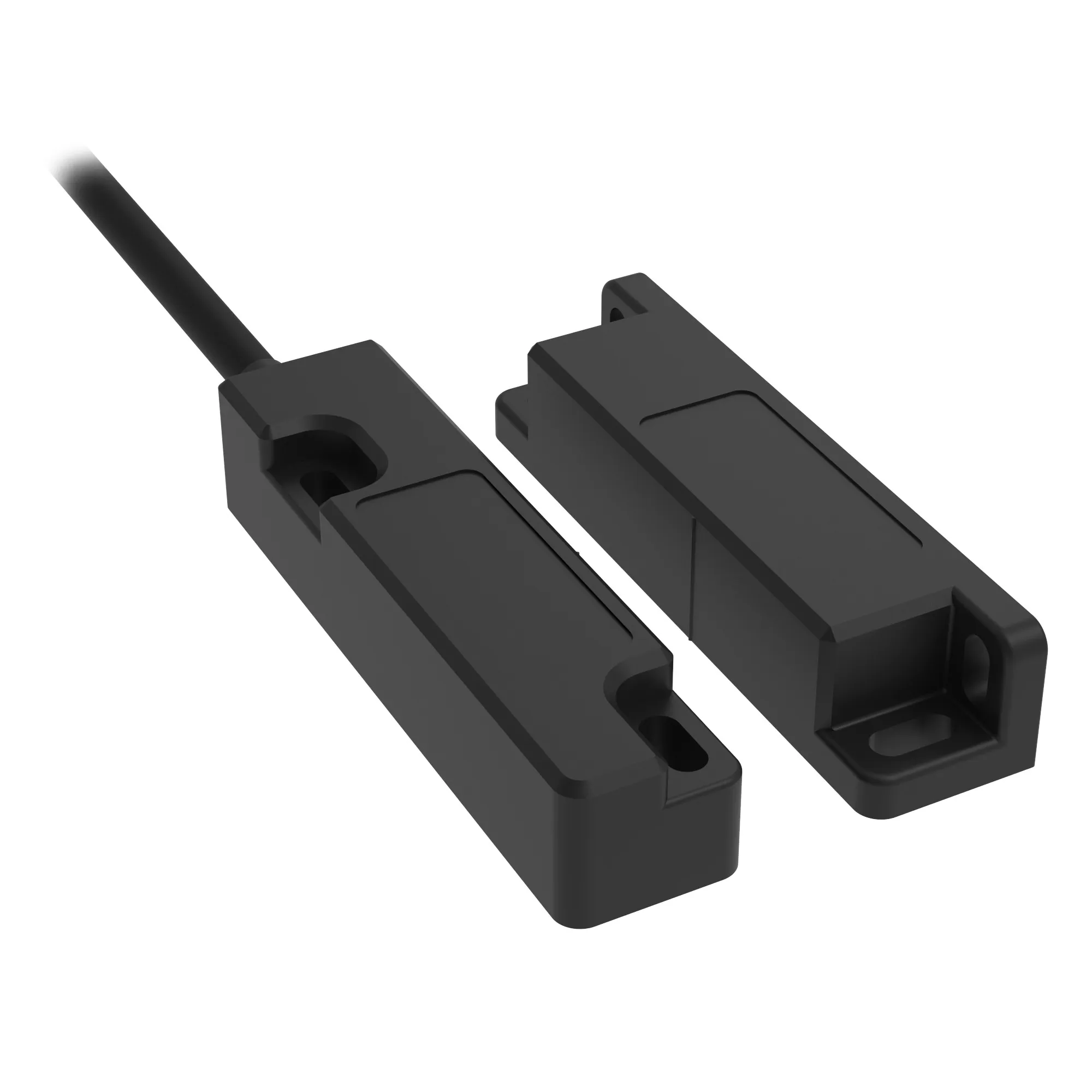

Omron F3S-TGR-NCPR-21-05
Non-contact door switch, reed, comapct sensor 5 m, plastic, 2NC+1NO contacts (D40B size equivalent)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Non-contact door switch, reed, comapct sensor 5 m, plastic, 2NC+1NO contacts (D40B size equivalent)
Specification
| Door switch type | Non-contact, Reed |
|---|---|
| Guard-lock | No |
| Coding | Uncoded |
| Material housing | Polyester |
| Ambient temperature (operating) | -25-80 °C |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| LED indicator | No |
| Connection method | Cable |
| Cable length | 5 m |
| Cable exit direction | Left |
| Degree of protection (IP) | IP69K |
| Output type | Reed contact |
| Shape | Rectangular compact |
| Overall length of sensor | 85 mm |
| Height of sensor | 17 mm |
| Width of sensor | 20 mm |
| Switch without actuator | No |
