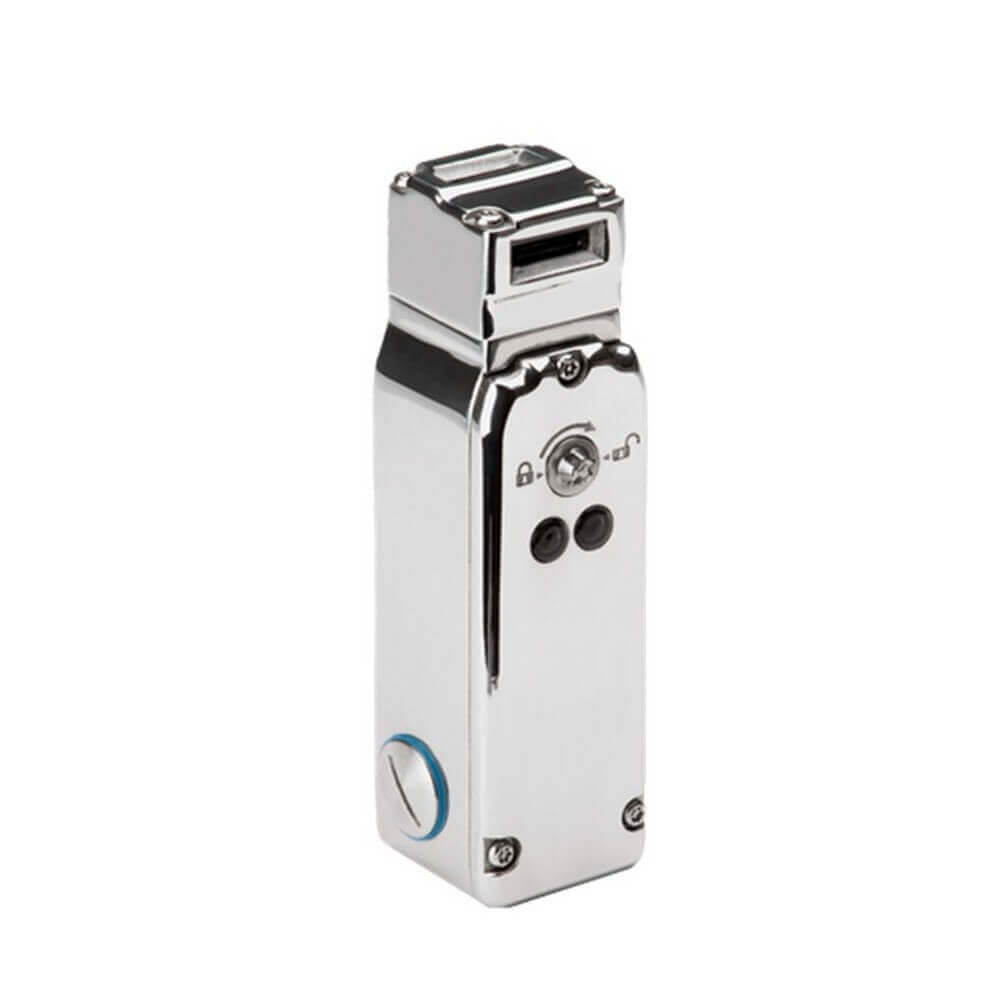

Omron F3S-TGR-KHL3
Safety interlock key switch, hygienic stainless steel housing, 3000 N holding force, M20, 4NC/2NO
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety interlock key switch, hygienic stainless steel housing, 3000 N holding force, M20, 4NC/2NO
Specification
| Door switch type | Key-operated |
|---|---|
| Guard-lock | Yes |
| Material housing | Stainless steel |
| Material head | Stainless steel |
| Ambient temperature (operating) | -25-40 °C |
| Holding force | 3000 N |
| Direction of operation | Horizontal |
| Door contacts NC | 2 |
| Door contacts NO | 1 |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 1 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Front |
| Lock/Release key material | Not Applicable |
| Solenoid voltage | 24 V |
| LED indicator | Yes |
| Connection method | Terminal block |
| Cable length | 0 m |
| Degree of protection (IP) | IP67/IP69K |
| Conduit size | M20 |
| Number of conduits | 2 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length of sensor | 47 mm |
| Height of sensor | 177 mm |
| Width of sensor | 48 mm |
| Switch without actuator | Yes |
| Lock/Release logic | Power to unlock (Mechanical lock) |
