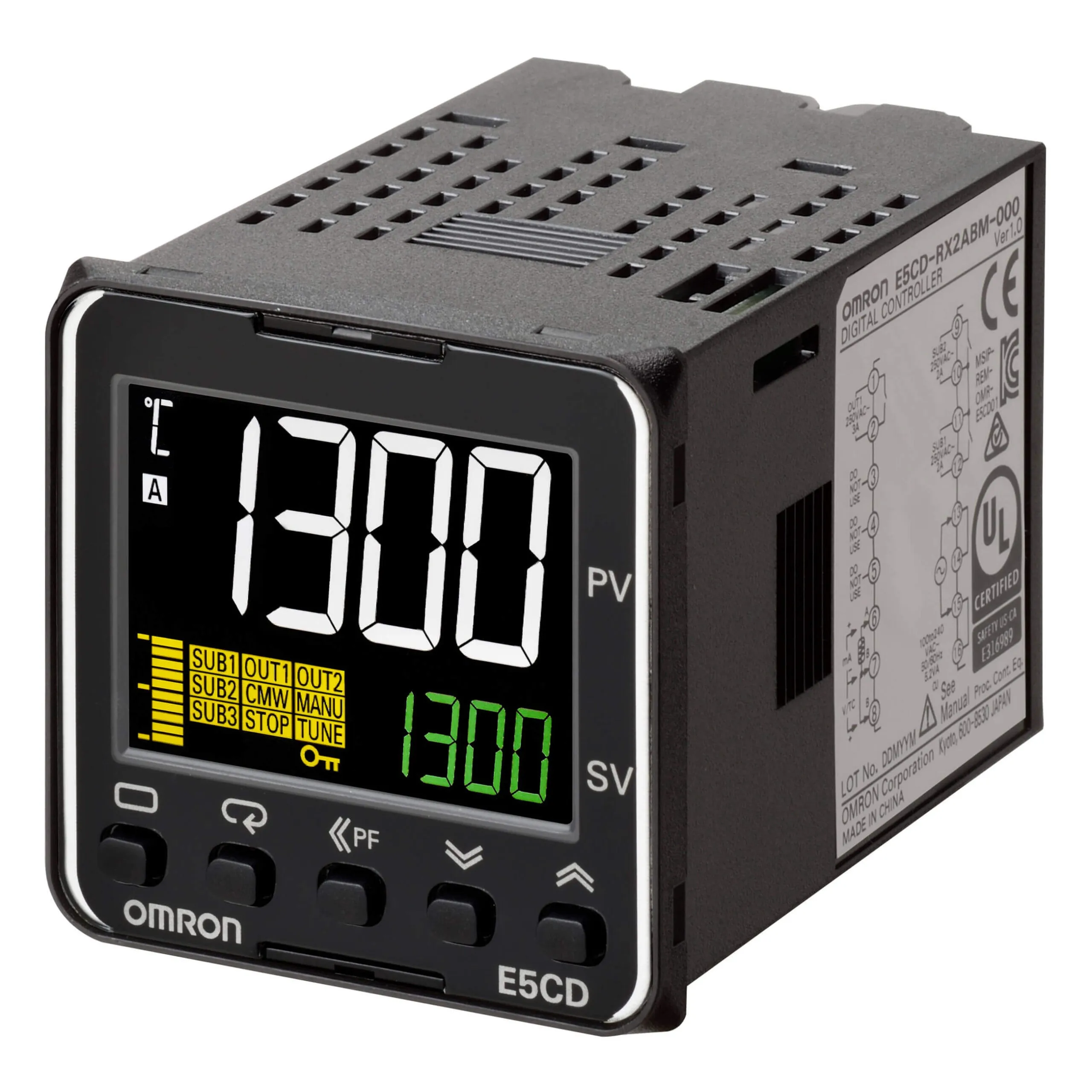

Omron E5CD-QX2DBM-002
Temperature controller, PRO, 1/16 DIN (48 x 48 mm), 1 x 12 VDC pulse OUT, 2 AUX,RS-485, Ht. Burnout SSR fail., 24 VAC/DC
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Temperature controller, PRO, 1/16 DIN (48 x 48 mm), 1 x 12 VDC pulse OUT, 2 AUX,RS-485, Ht. Burnout SSR fail., 24 VAC/DC
Specification
| Size |
1/16 DIN (48 x 48 mm) |
|---|---|
| Functions |
HB/HS alarm for 1-phase heaters, Heater burnout detection, ON/OFF control, PID control |
| Number of control loops |
1 |
| Temperature input type |
B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type |
0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range |
-200-2300 °C |
| Number of event inputs |
0 |
| Number of alarm outputs |
2 |
| Supply voltage AC |
20.4-26.4 V |
| Supply voltage DC |
20.4-26.4 V |
| Control output |
Voltage pulse |
| Communication port(s) |
Serial RS-485 |
| Terminal type |
Push-in |
