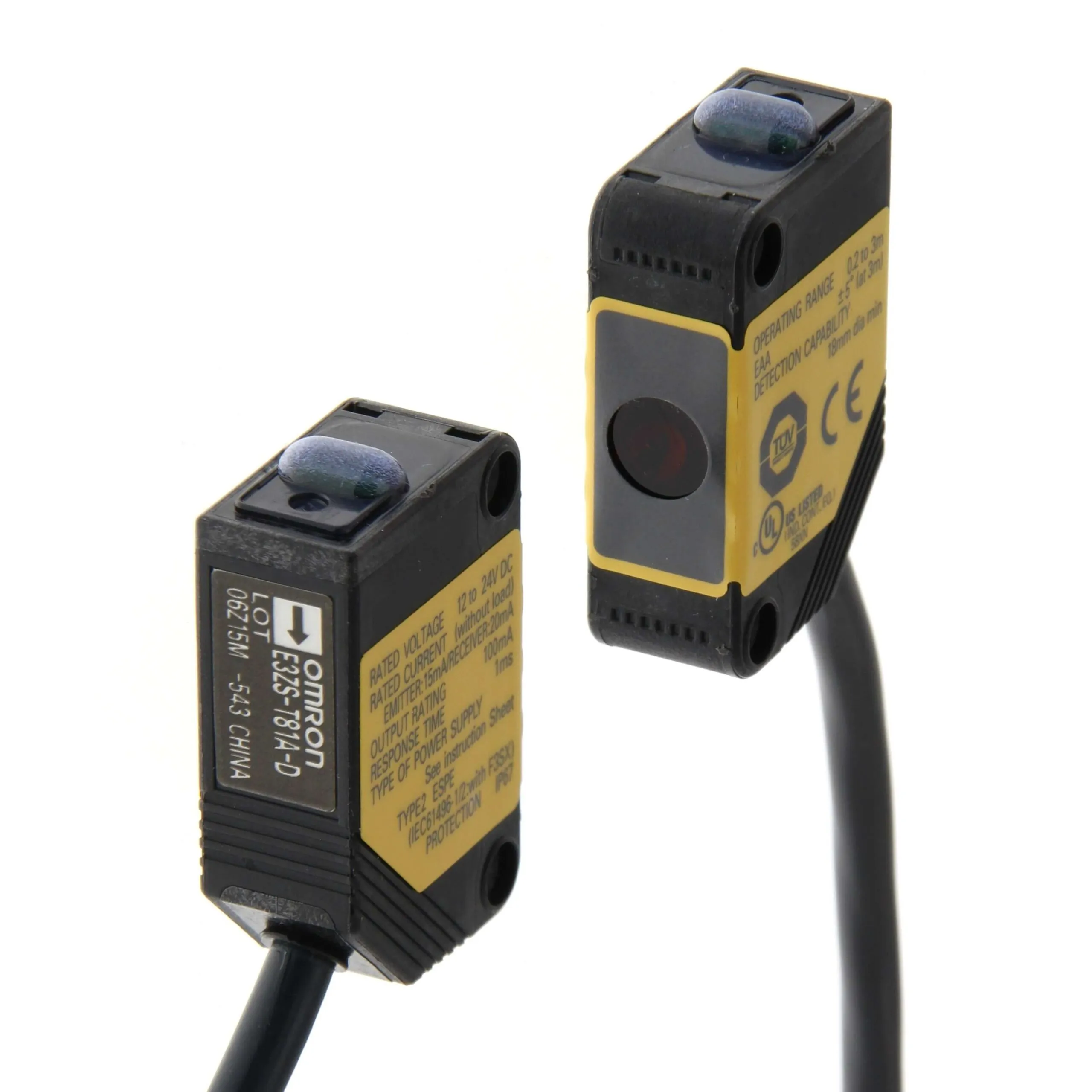

Omron E3ZS-T81A
Photoelectric sensor, E3ZS, rectangular housing, through-beam, red LED, PLc, Safety Category 2, 3 m, DC, 3-wire, PNP, 2 m cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensor, E3ZS, rectangular housing, through-beam, red LED, PLc, Safety Category 2, 3 m, DC, 3-wire, PNP, 2 m cable
Specification
| Sensing method | Safety single-beam |
|---|---|
| Type of safety according to IEC 61496-1 | 2 |
| Number of beams | 1 |
| Maximum safety range | 3 m |
| Minimum operating distance | 0.2 m |
| Key features | External test |
| Degree of protection (IP) | IP67 |
| Cascadable | No |
| Suitable for safety functions | Yes |
| Scope of delivery | Transmitter and receiver |
| Response time | 1 ms |
| Wavelength of the sensor | 660 nm |
| Connection method | Cable |
| Supply voltage DC | 12-24 V |
| Type of switching output of the OSSD | PNP |
| Ambient temperature | -10-55 °C |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
