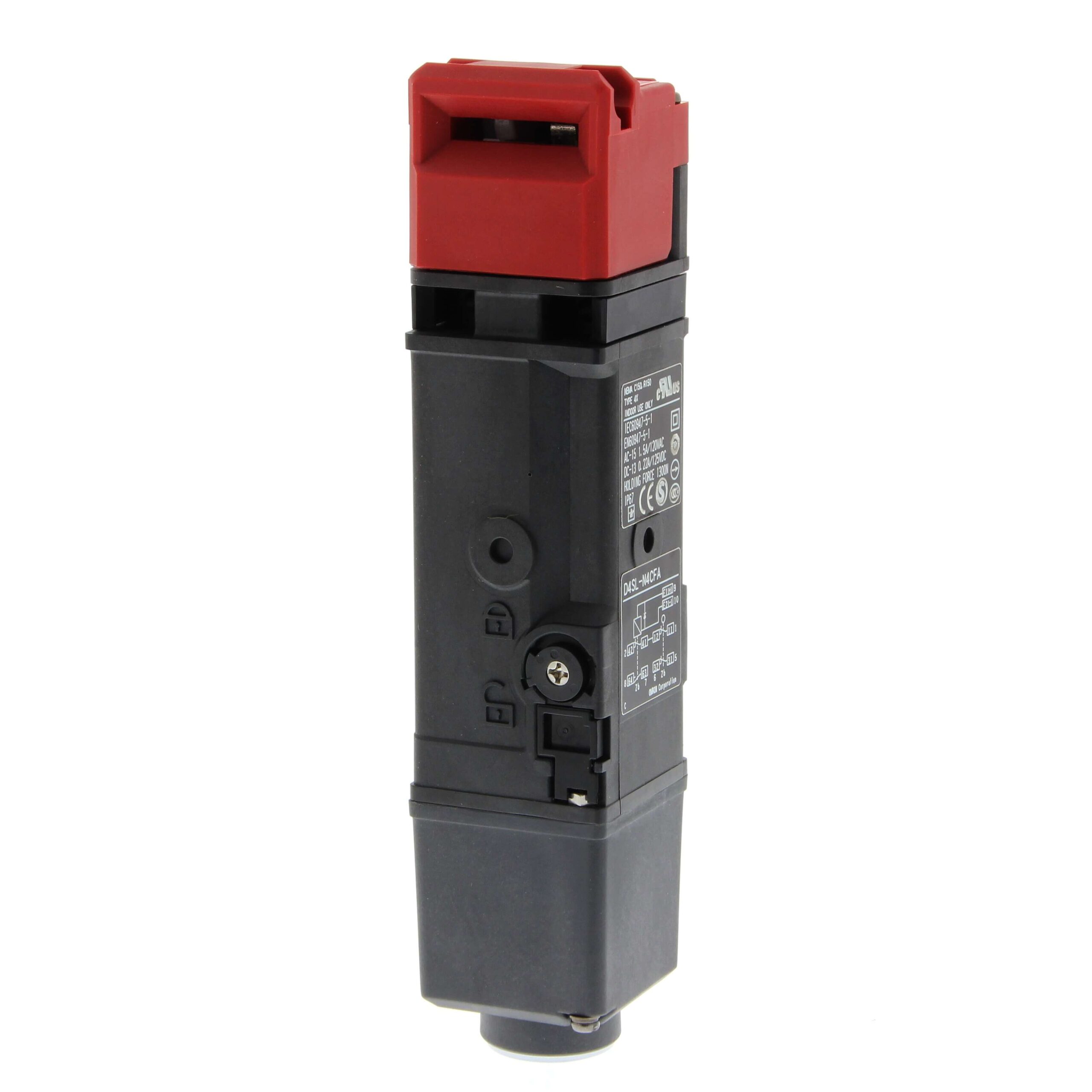

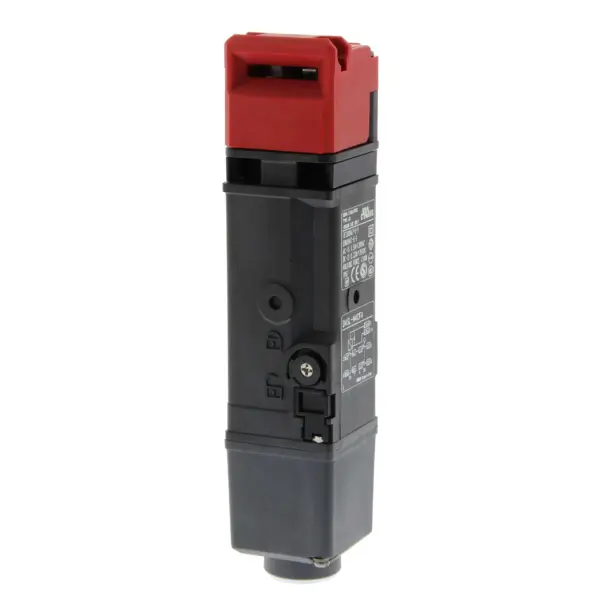

Omron D4SL-N4UFA
Guard lock safety-door switch, D4SL-N, M20, 2NC + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Guard lock safety-door switch, D4SL-N, M20, 2NC + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release
Specification
| Door switch type |
Key-operated |
|---|---|
| Guard-lock |
Yes |
| Material housing |
Plastic |
| Material head |
Resin |
| Ambient temperature (operating) |
-10-55 °C |
| Holding force |
1300 N |
| Direction of operation |
Adjustable |
| Door contacts NC |
2 |
| Door contacts NO |
0 |
| Lock monitor contacts NC |
1 |
| Lock monitor contacts NO |
1 |
| Lock/Release key type |
Standard key |
| Lock/Release key position |
Front + Back |
| Lock/Release key material |
Metal |
| Solenoid voltage |
24 V |
| LED indicator |
No |
| Connection method |
System connector |
| Cable length |
0 m |
| Degree of protection (IP) |
IP67 |
| Conduit size |
M20 |
| Number of conduits |
1 |
| Shape |
Cuboid |
| Overall length of sensor |
155 mm |
| Height of sensor |
39 mm |
| Width of sensor |
39 mm |
| Switch without actuator |
Yes |
| Lock/Release logic |
Power to unlock (Mechanical lock) |
