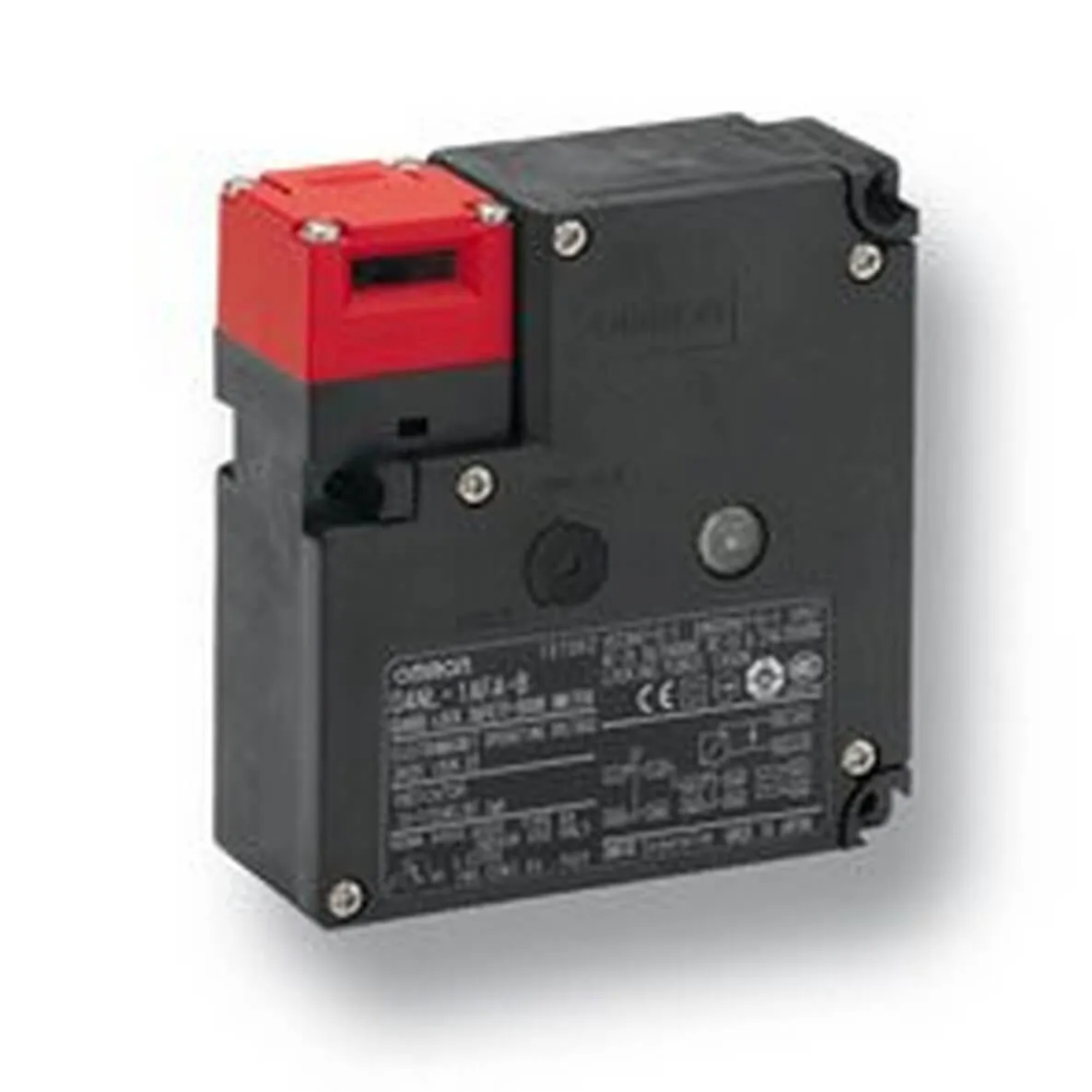

Omron D4NL-1AFA-B
Guard lock safety-door switch, D4NL, PG13.5, 1NC/1NO + 1NC/1NO (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED indicator
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Guard lock safety-door switch, D4NL, PG13.5, 1NC/1NO + 1NC/1NO (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED indicator
Specification
| Door switch type | Key-operated |
|---|---|
| Guard-lock | Yes |
| Material housing | Plastic |
| Material head | Plastic |
| Ambient temperature (operating) | -10-55 °C |
| Connection method | Screw terminal |
| Cable length | 0 m |
| Direction of operation | Adjustable |
| Holding force | 1300 N |
| Door contacts NC | 1 |
| Door contacts NO | 1 |
| Lock monitor contacts NC | 1 |
| Lock monitor contacts NO | 1 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Bottom |
| Lock/Release key material | Resin |
| Solenoid voltage | 24 V |
| LED indicator | Yes |
| Degree of protection (IP) | IP67 |
| Conduit size | PG13.5 |
| Number of conduits | 2 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length of sensor | 95 mm |
| Height of sensor | 35.5 mm |
| Width of sensor | 88.5 mm |
| Switch without actuator | Yes |
| Lock/Release logic | Power to unlock (Mechanical lock) |
