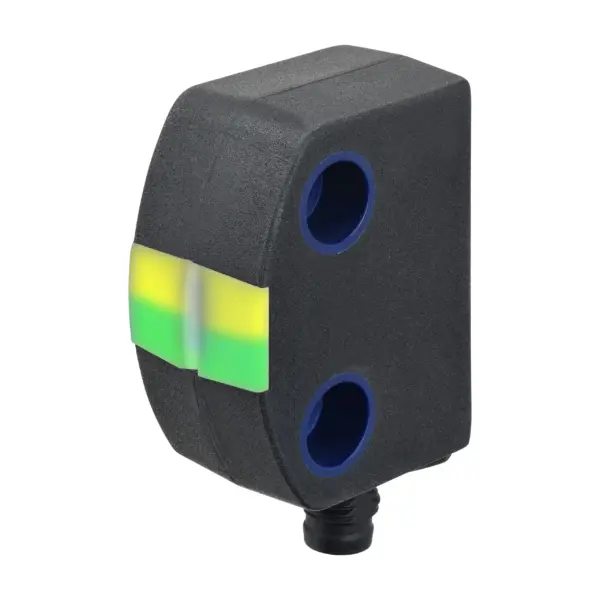

Omron D41D-1CD-N1
Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connector plug M8
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connector plug M8
Specification
| Coding |
Unique |
|---|---|
| Connection method |
Connector M8 – 8 pin |
| Degree of protection (IP) |
IP65/IP67 |
| Diagnostic LED |
Yes |
| Door contacts NC |
2 |
| Door contacts NO |
1 |
| Door switch type |
Non-contact, RFID coded |
| Guard-lock |
No |
| High coding level |
Yes |
| LED indicator |
Yes |
| Material housing |
PBT |
| Number of auxiliary outputs |
1 |
| Auxiliary monitoring output |
PNP type, short-circuit proof |
| Cable exit direction |
Bottom |
| Make before break |
No |
| Max. differential travel |
20 % |
| Max. operating distance ON to OFF |
18 mm |
| Min. operating distance OFF to ON |
10 mm |
| Mounting method |
M4 screws |
| Number of connectable switches |
30 max. (wiring length: 100 m max.) |
| Number of OSSD |
2 |
| Output test pulses |
Yes |
| Output type |
PNP |
| Shape |
Rectangular compact |
| Switch without actuator |
Yes |
| Teaching limitation |
Yes |
| Vibration resistance |
10 to 55 Hz, amplitude 1.0 mm |
