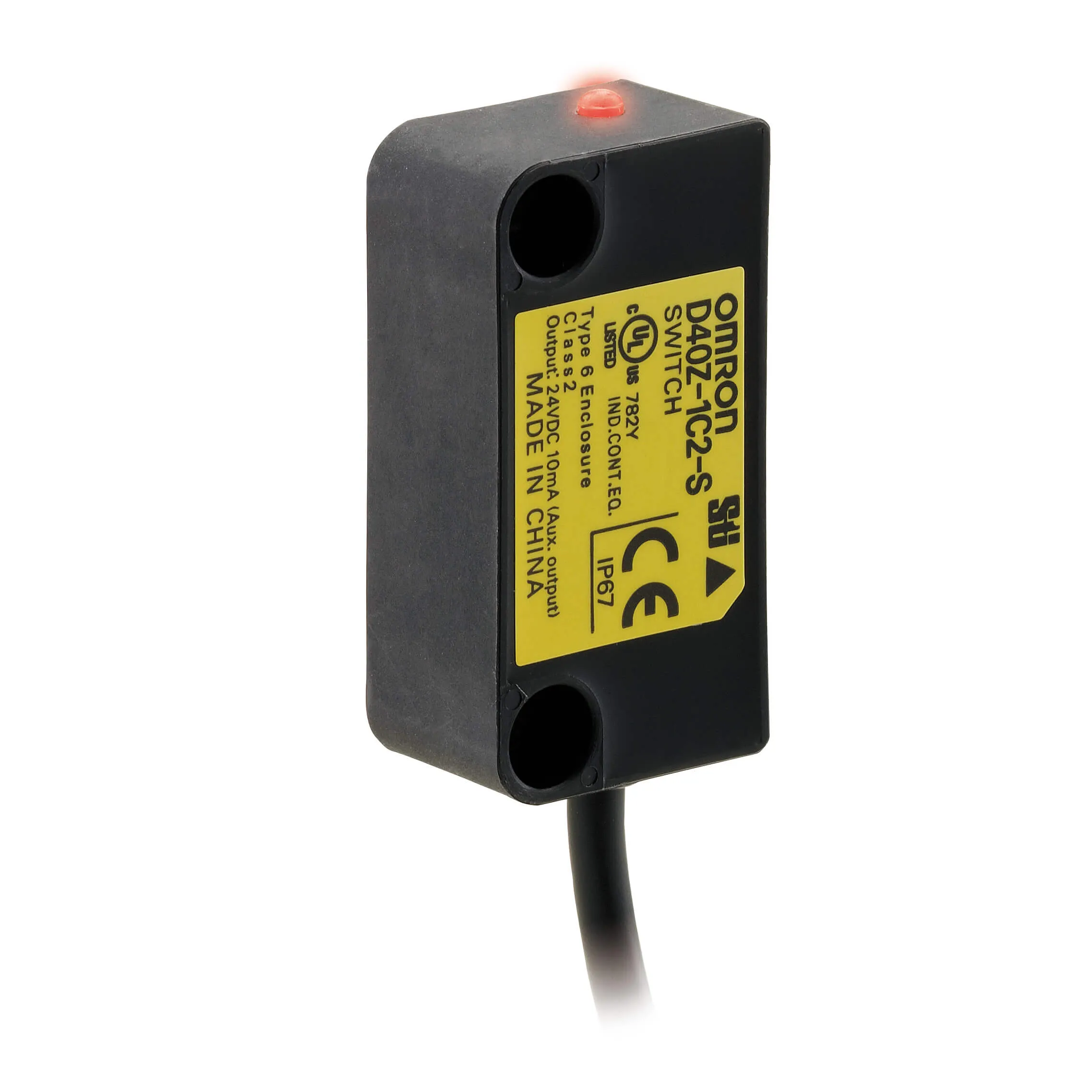

Omron D40Z-1C5-S
Safety non-contact door switch, Cat 4/Ple, 5m cable, switch only
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety non-contact door switch, Cat 4/Ple, 5m cable, switch only
Specification
| Switch without actuator |
Yes |
|---|---|
| Min. operating distance OFF to ON |
5 mm |
| Max. operating distance ON to OFF |
15 mm |
| Max. differential travel |
20 % |
| Ambient temperature (operating) |
-10-65 °C |
| Vibration resistance |
10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) |
| Min. shock resistance |
300 m/s² |
| Degree of protection (IP) |
IP67 |
| Material housing |
PBT |
| Mounting method |
M4 screws |
| Max. power consumption |
0.5 W |
| Auxiliary monitoring output |
Photocoupler output: 24 V DC, load current: 10 mA |
| Cable length |
5 m |
| Number of connectable switches |
30 max. (wiring length: 100 m max.) |
| LED indicator |
Yes |
