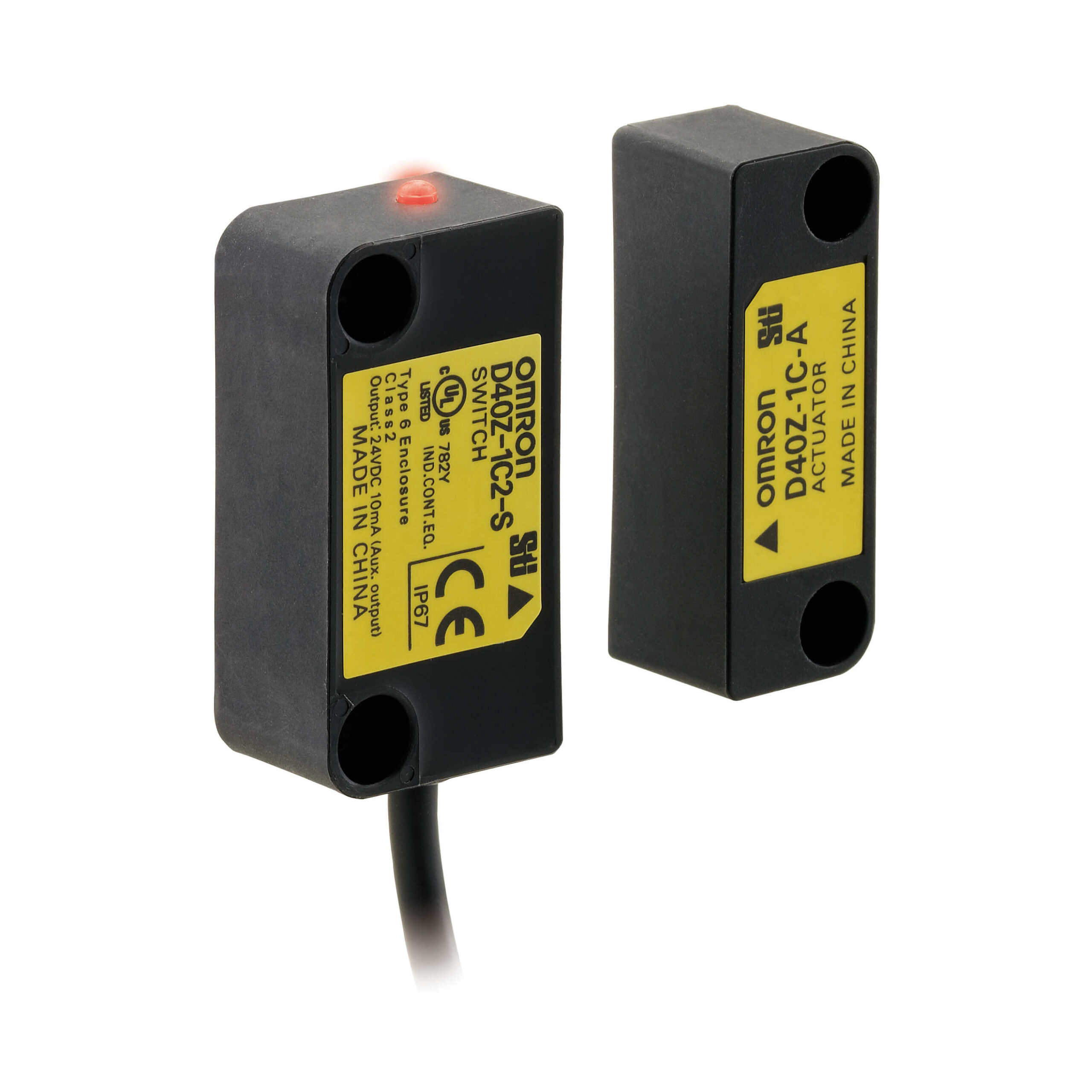

Omron D40Z-1C2
Non-contact door switch, compact sensor, LED indicator, 1NO aux, requires G9SX-NS or G9SP controller for Category 4/PLe, 2 m
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Non-contact door switch, compact sensor, LED indicator, 1NO aux, requires G9SX-NS or G9SP controller for Category 4/PLe, 2 m
Specification
| Switch without actuator | No |
|---|---|
| Min. operating distance OFF to ON | 5 mm |
| Max. operating distance ON to OFF | 15 mm |
| Max. differential travel | 20 % |
| Ambient temperature (operating) | -10-65 °C |
| Vibration resistance | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) |
| Min. shock resistance | 300 m/s² |
| Degree of protection (IP) | IP67 |
| Material housing | PBT |
| Mounting method | M4 screws |
| Max. power consumption | 0.5 W |
| Auxiliary monitoring output | Photocoupler output: 24 V DC, load current: 10 mA |
| Cable length | 2 m |
| Number of connectable switches | 30 max. (wiring length: 100 m max.) |
| LED indicator | Yes |
