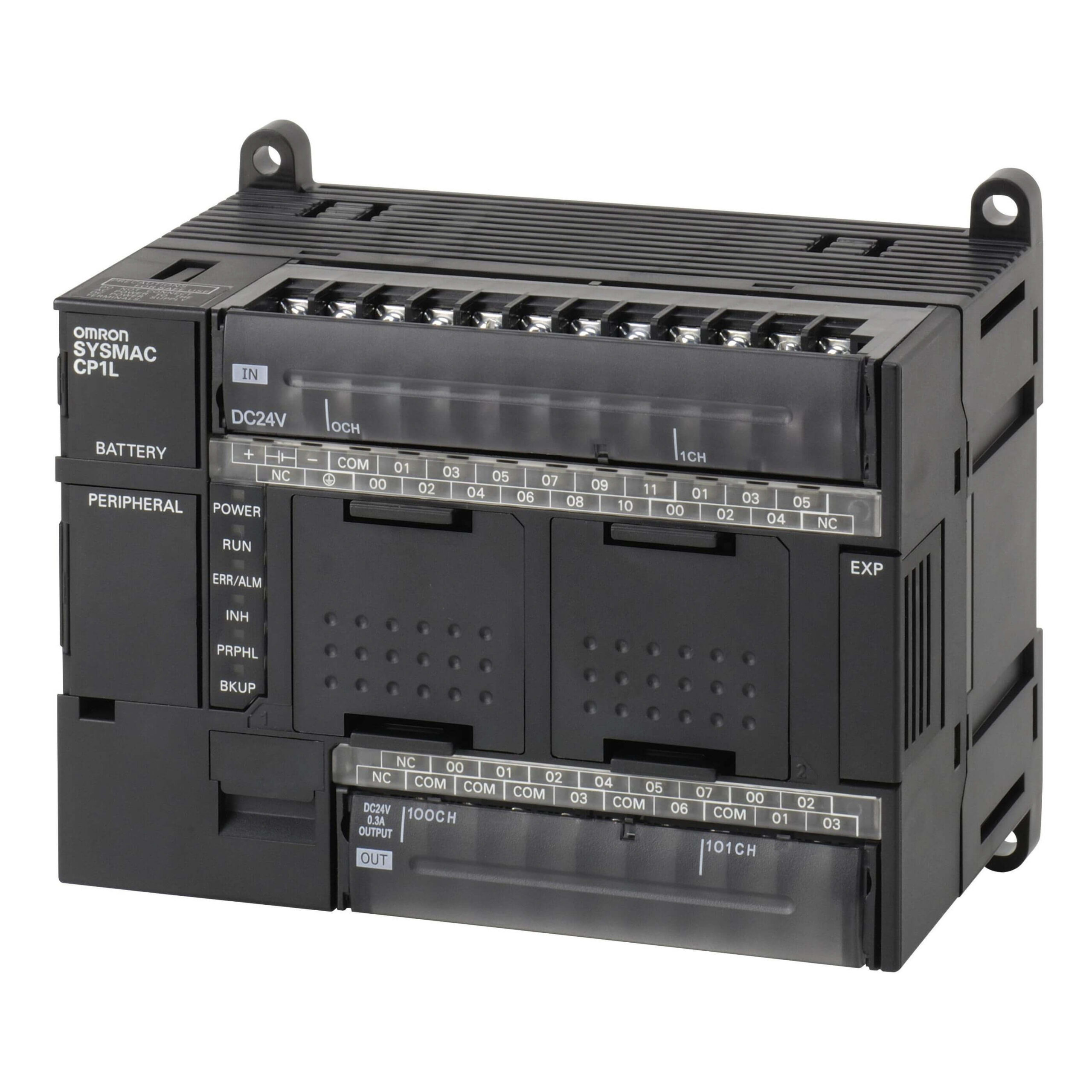

Omron CP1L-M30DT-D
PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x NPN outputs 0.3 A, 10K steps program + 32K words data memory
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x NPN outputs 0.3 A, 10K steps program + 32K words data memory
Specification
| Supply voltage type | DC |
|---|---|
| Number of digital inputs | 18 |
| Input type | PNP/NPN |
| Number of digital outputs | 12 |
| Output type | NPN |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | |
| Number of USB ports | 1 |
| Number of RS-232 ports | |
| Number of RS-485 ports | |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | Yes |
| Battery-free memory backup | No |
| Real-time clock | Yes |
| Analogue option boards | No |
| Max. number of analogue I/O channels | 25 |
| Max. number of local I/O points | 150 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 130 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 495 g |
