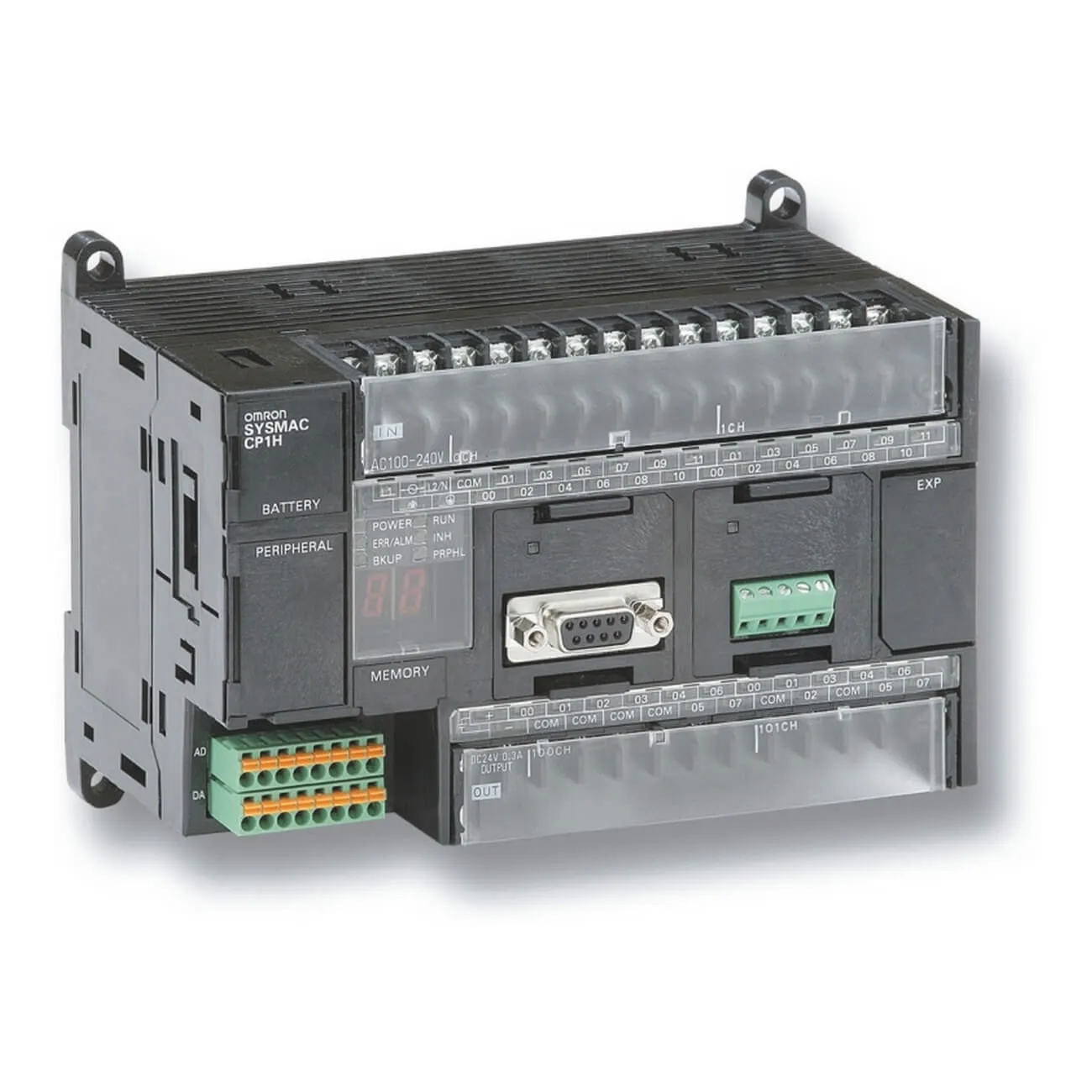

Omron CP1H-X40DT-D
PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory
Specification
| Supply voltage type | DC |
|---|---|
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | NPN |
| Program capacity | 20 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.10 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | |
| Number of USB ports | 1 |
| Number of RS-232 ports | |
| Number of RS-485 ports | |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of analog inputs | |
| Number of analog outputs | |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 4 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | Yes |
| Battery-free memory backup | No |
| Real-time clock | Yes |
| Analogue option boards | No |
| Max. number of analogue I/O channels | 56 |
| Max. number of local I/O points | 320 |
| Max. number of expansion units | 7 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 600 g |
