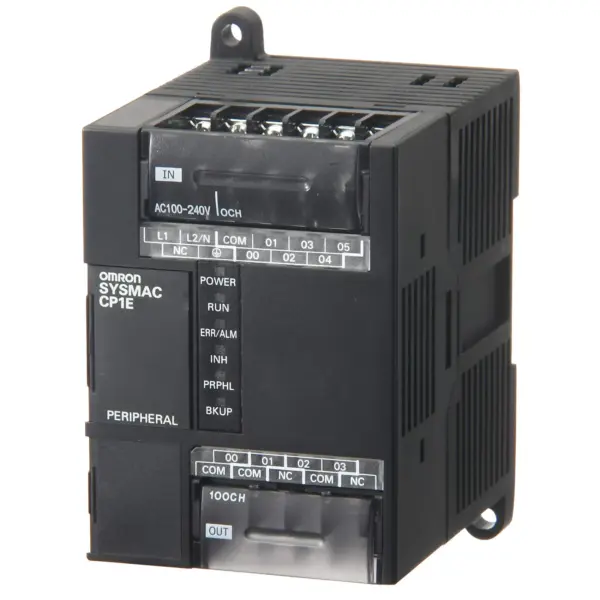

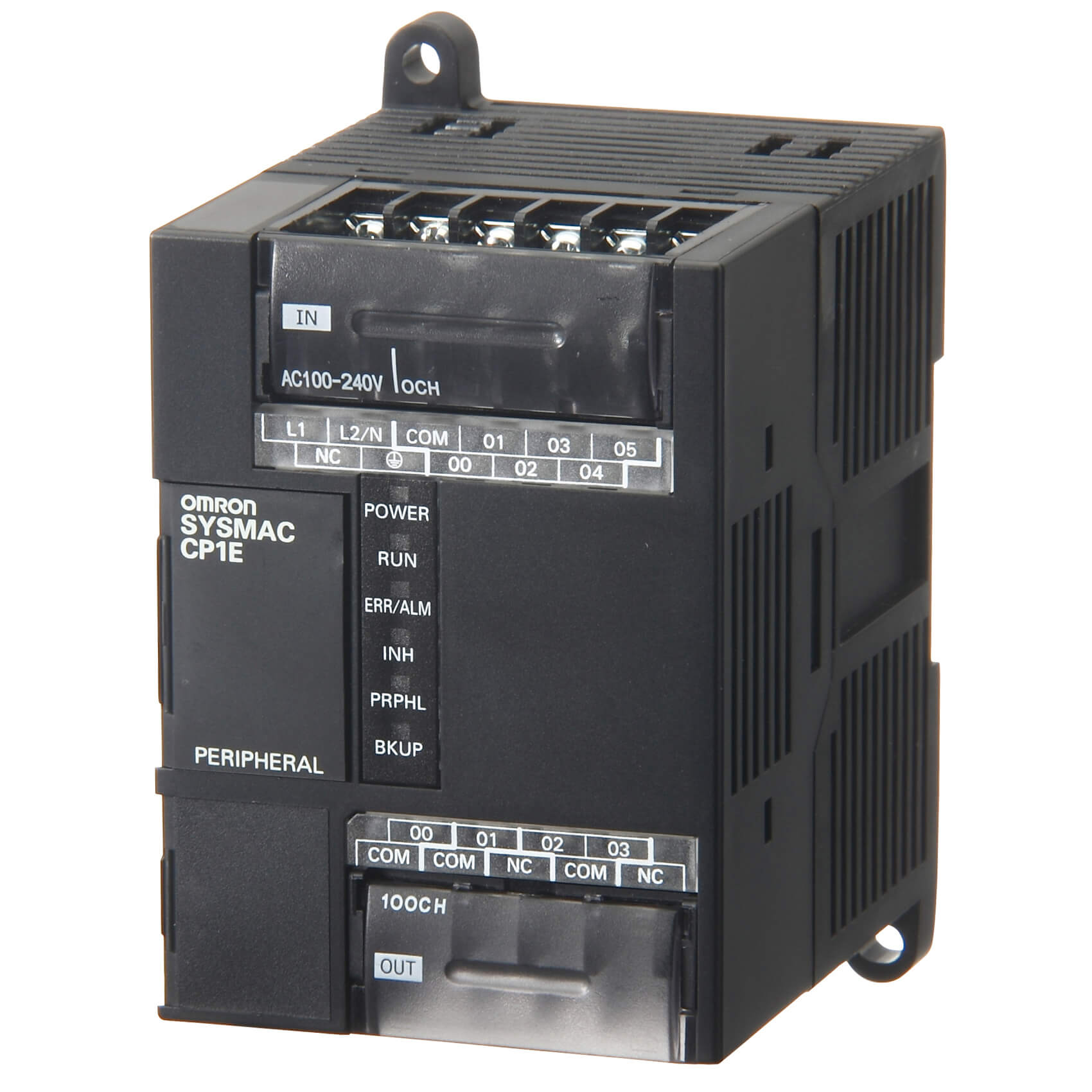

Omron CP1E-E10DR-A
PLC, 100-240 VAC supply, 6 x 24 VDC inputs, 4 x relay outputs 2 A, 2K steps program + 2K words data memory
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PLC, 100-240 VAC supply, 6 x 24 VDC inputs, 4 x relay outputs 2 A, 2K steps program + 2K words data memory
Specification
| Supply voltage type |
AC |
|---|---|
| Number of digital inputs |
6 |
| Input type |
PNP/NPN |
| Number of digital outputs |
4 |
| Output type |
Relay |
| Program capacity |
2 K steps |
| Data memory capacity |
2 K words |
| Logic execution time |
1.19 µs |
| Communication port(s) |
USB |
| Number of Ethernet ports |
0 |
| Number of USB ports |
1 |
| Number of RS-232 ports |
0 |
| Number of RS-485 ports |
0 |
| Communication option(s) |
None |
| Max. encoder input frequency |
10 kHz |
| Max. number of PTP axes |
0 |
| Max. pulse output frequency |
0 kHz |
| Function Block programming |
No |
| Battery-free memory backup |
No |
| Real-time clock |
No |
| Analogue option boards |
No |
| Max. number of analogue I/O channels |
0 |
| Max. number of local I/O points |
10 |
| Max. number of expansion units |
0 |
| Built-in auxiliary 24 VDC output |
0 mA |
| Operating temperature range |
0-55 °C |
| Product Height (unpacked) |
90 mm |
| Product Width (unpacked) |
66 mm |
| Product Depth (unpacked) |
85 mm |
| Product Weight (unpacked) |
300 g |
