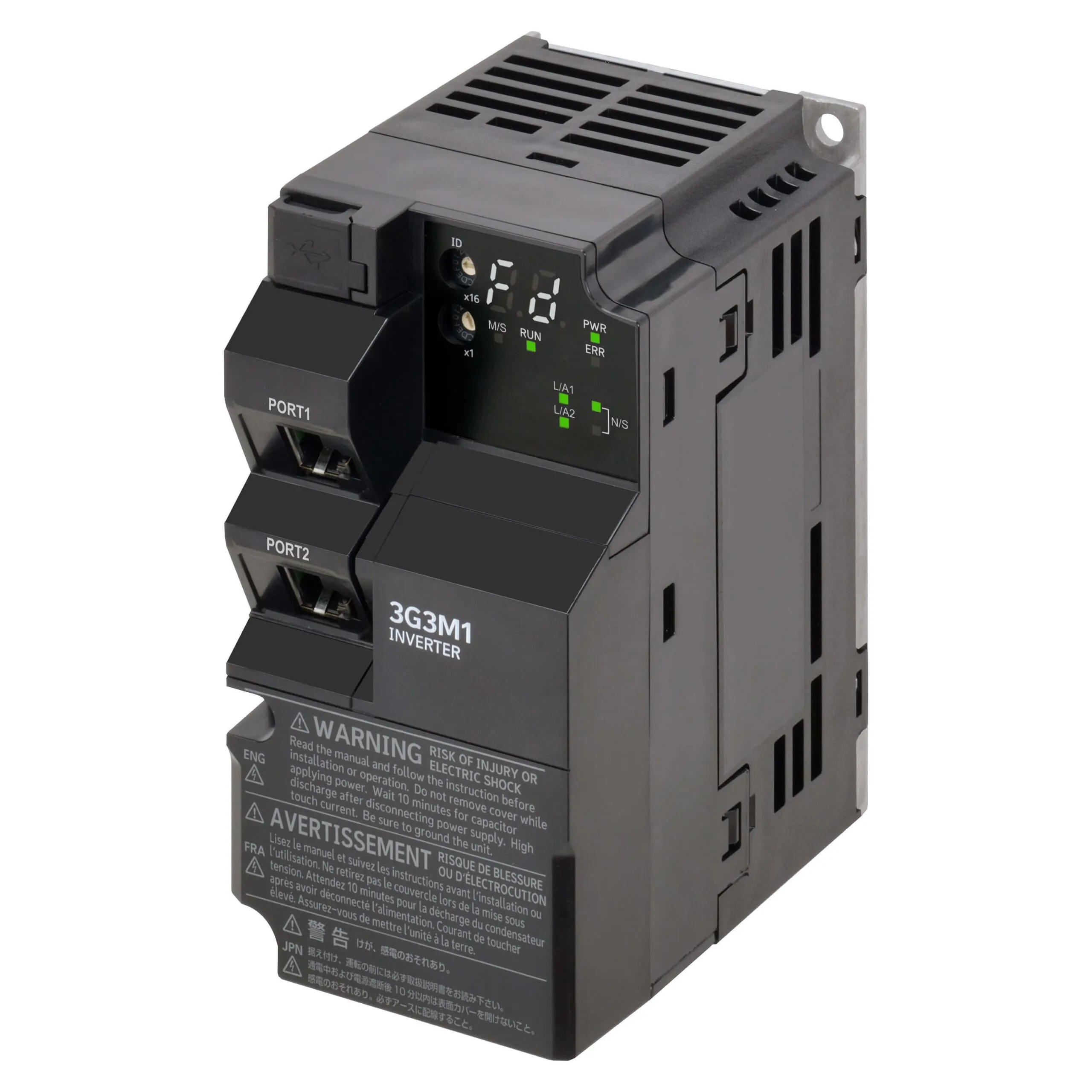

Omron 3G3M1-AB004-EMP
M1 AC Drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, Ethernet Multi-Protocol (EtherNet/IP, PROFINET and Modbus TCP), max. output freq. 590 Hz
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M1 AC Drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, Ethernet Multi-Protocol (EtherNet/IP, PROFINET and Modbus TCP), max. output freq. 590 Hz
Specification
| Drive control method |
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
|---|---|
| Drive supply voltage |
230 V single phase |
| Max. motor output at constant torque |
0.4 kW |
| Max. motor output at variable torque |
0.55 kW |
| Built in EMC filter |
No |
| Degree of protection (IP) |
IP20 |
| Compatible motor type |
Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) |
EtherNet/IP, MODBUS/TCP, PROFINET Slave, USB |
| Communication option(s) |
None |
| Product Height (unpacked) |
127 mm |
| Product Width (unpacked) |
68 mm |
| Product Depth (unpacked) |
120 mm |
| Product Weight (unpacked) |
700 g |
| Finless type |
No |
