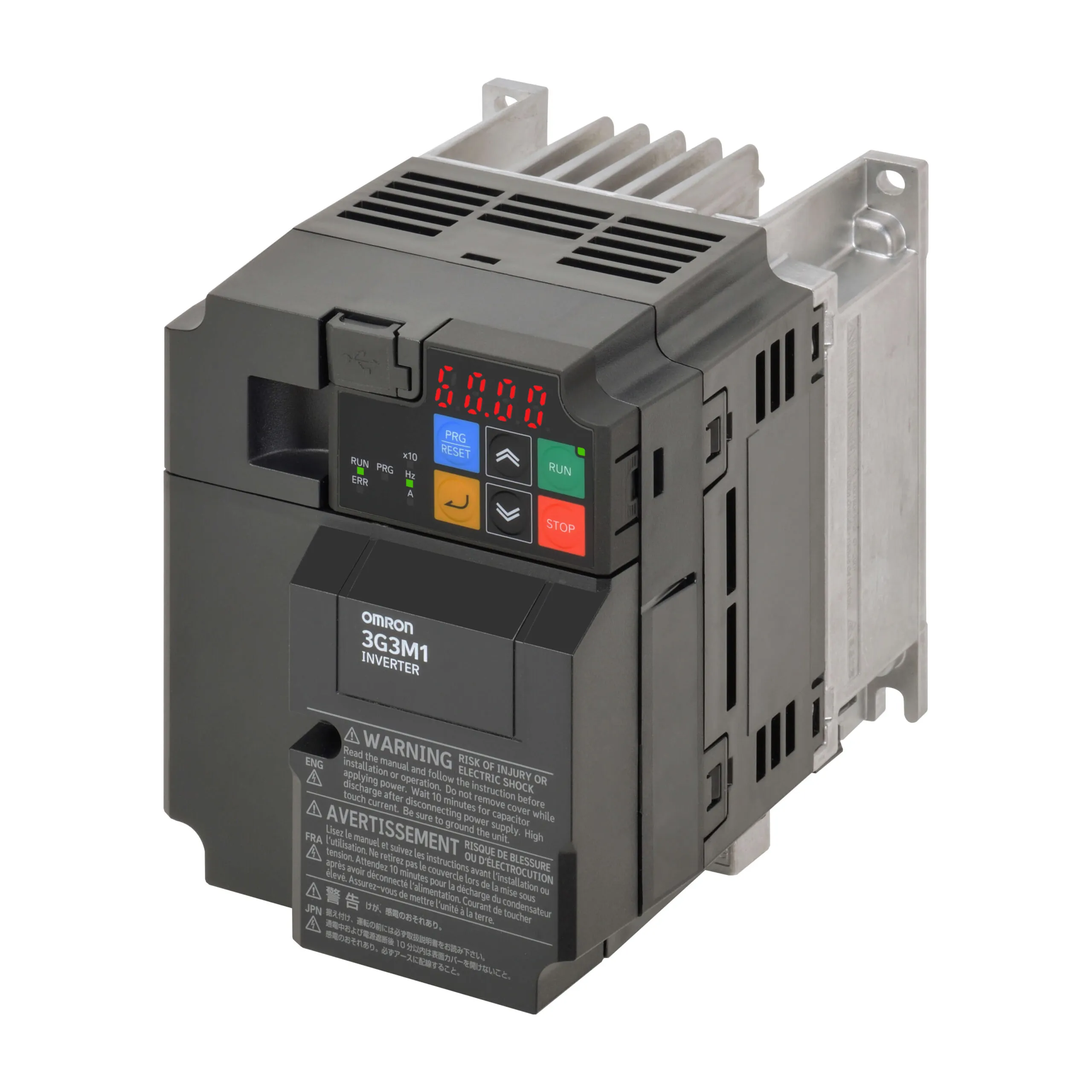

Omron 3G3M1-A4022
M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Specification
| Drive control method |
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
|---|---|
| Drive supply voltage |
400 V three phase |
| Max. motor output at constant torque |
2.2 kW |
| Max. motor output at variable torque |
3 kW |
| Built in EMC filter |
No |
| Degree of protection (IP) |
IP20 |
| Compatible motor type |
Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) |
MODBUS Slave, Serial RS-485, USB |
| Communication option(s) |
None |
| Product Height (unpacked) |
130 mm |
| Product Width (unpacked) |
110 mm |
| Product Depth (unpacked) |
156 mm |
| Product Weight (unpacked) |
1400 g |
| Finless type |
No |
