IFM ZZ1060
ZZ1060
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For quick and easy parameter setting and set-up of IO-Link devices
Robust M12 connectors for field applications for USB, power, and sensor communication
Clearly visible LEDs for displaying operation, switching status and error
For connecting sensors with IO-Link capability to a PC
Reading of the current measured values, process values and parameter settings
Specification
Application
| Application | parameter setting and analysis of units |
|---|---|

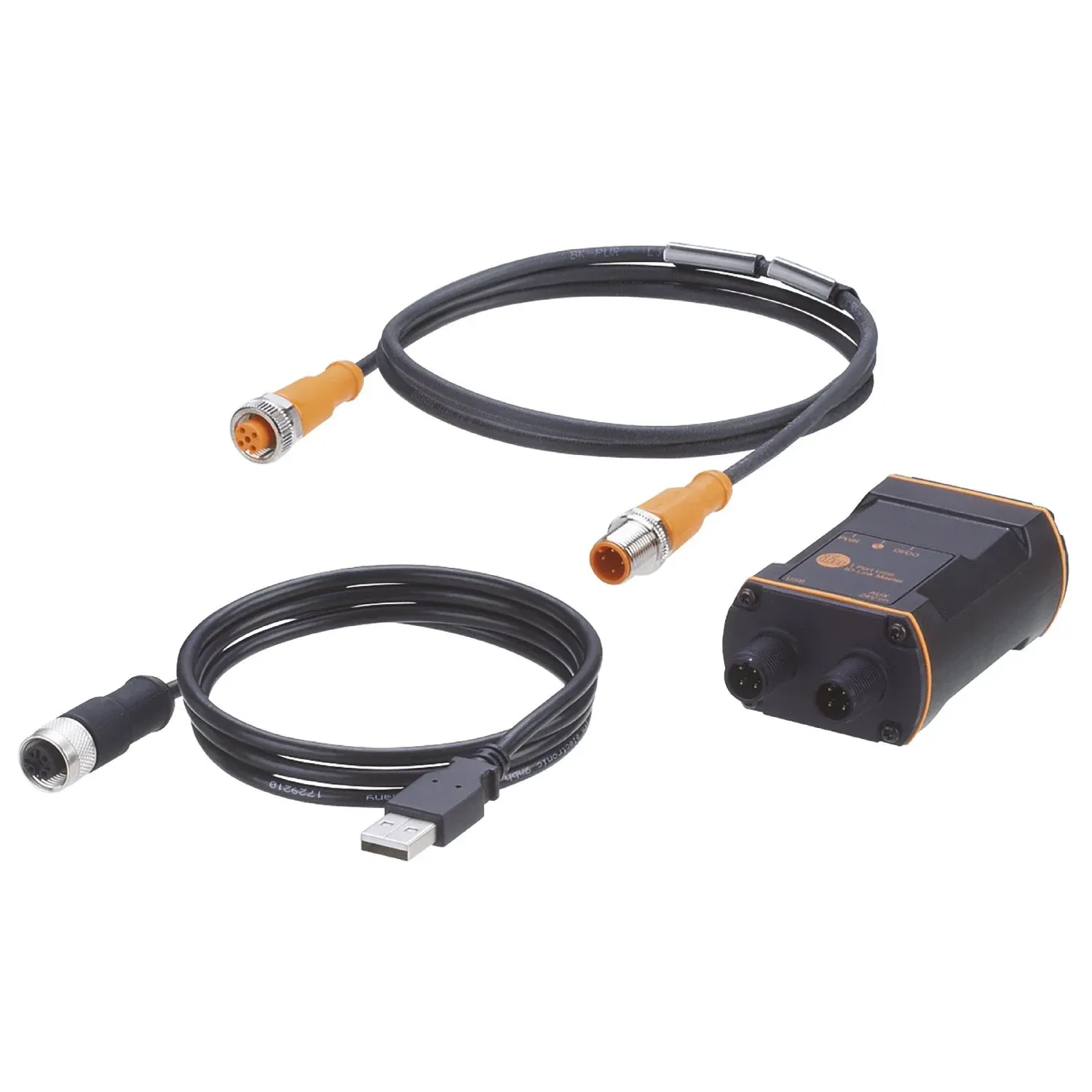

| Components | IO-Link master with USB interface: 1, AL1060 Connection cable: 1 m, M12 A-coded, EVC012 USB cable: 1 m, M12 B-coded, E12689 |
Electrical data
| Nominal voltage DC [V] | 5; (USB) |
|---|---|
| Current consumption [mA] | < 1100; (USB) |
| Protection class | III |
| Sensor supply | 24 V DC |
| Current rating per port [A] | 0.15 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2; (IO-Link port Class A : 1 x 2) |
|---|---|
| Switching level high [V] | 11...30 |
| Switching level low [V] | 0...5 |
| Short-circuit protection digital inputs | yes |
Outputs
| Number of digital outputs | 2; (IO-Link port Class A: 1 x 2) |
|---|---|
| Max. current load per output [mA] | 150 |
| Short-circuit proof | yes |
Interfaces
| Communication interface | IO-Link; USB |
|---|---|
| Number of USB interfaces | 1 |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 1 |
| Version | USB 2.0 |
Operating conditions
| Ambient temperature [°C] | -25...50 |
|---|---|
| Storage temperature [°C] | -25...85 |
| Max. relative air humidity [%] | 90 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
Mechanical data
| Weight [g] | 388.3 |
|---|---|
| Materials | housing: PA; socket: PA; lock nut: nickel-plated brass |
| Sealing material | FKM |
Displays / operating elements
| Display | PWR 1 x LED, green/red power supply IO-Link 1 x LED, green/red communication DI/DO 1 x LED, orange digital input/output |
|---|
Accessories
| Accessories (optional) | Switched-mode power supply 24 V DC:, M12 A-coded, E80121 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - AUX
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - USB
| Connector | 1 x M12; coding: B |
|---|
