IFM ZZ0668
ZZ0668
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

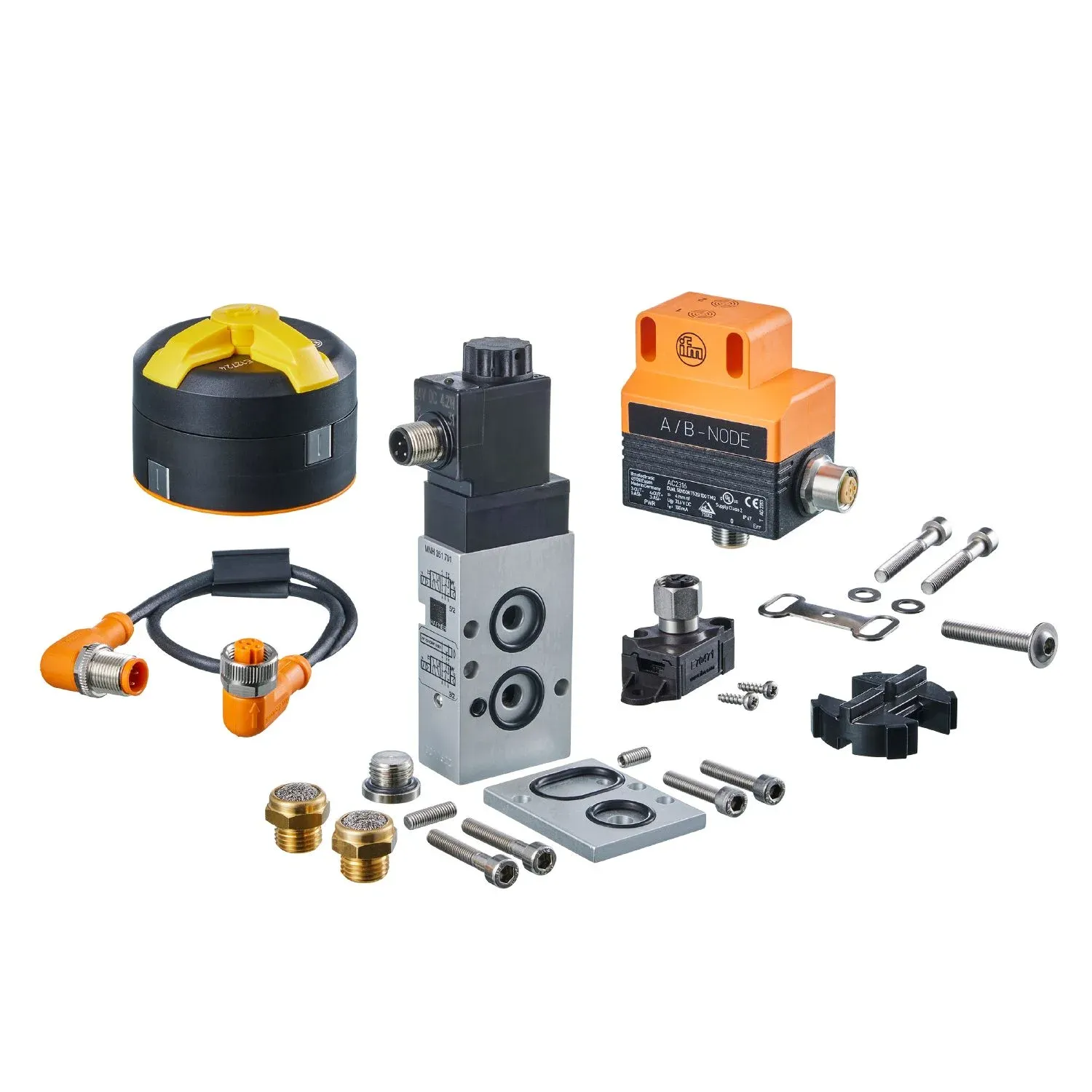

Complete automation set for quick set-up
For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Quick and secure mounting with only three screws
Specification
Product characteristics
| Output function | PNP |
|---|
Application
| Application | direct open and close valve control |
|---|---|
| Components | T5 connection: 1, AC2316 target puck: 1, E12724 spacer: 1, E12526 Flat cable insulation displacement connector: 1, E75471 screw: 1, E12752 solenoid valve: 1, ZJF131 silencer: 2 Connection cable: 1, EVC030 |
Electrical data
| Max. current consumption from AS-i [mA] | 160 |
|---|---|
| Operating voltage AUX DC [V] | 26.5...31.6; ("supply class 2" to cULus) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 1 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|
Outputs
| Number of digital outputs | 1 |
|---|---|
| Output function | PNP |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| AS-i profile | S-7.A.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | A.E |
Mechanical data
| Weight [g] | 784.5 |
|---|---|
| Mounting | non-flush mountable |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 20 |
Remarks
| Pack quantity | 1 pcs. |
|---|
