IFM ZZ0600
ZZ0600
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Product characteristics
| Process connection | threaded connection G 1/2 internal thread |
|---|---|
| Measuring range [l/min] | 0.1...25 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | Industrial applications / factory automation; cooling water control |
| Installation | connection to pipe by means of an adapter; tube connection |
| Measuring parameters | flow; temperature; totaliser |
| Control | manual |
| Media | conductive liquids; hydrous media; glycol solutions |
| Medium temperature [°C] | -10...70 |

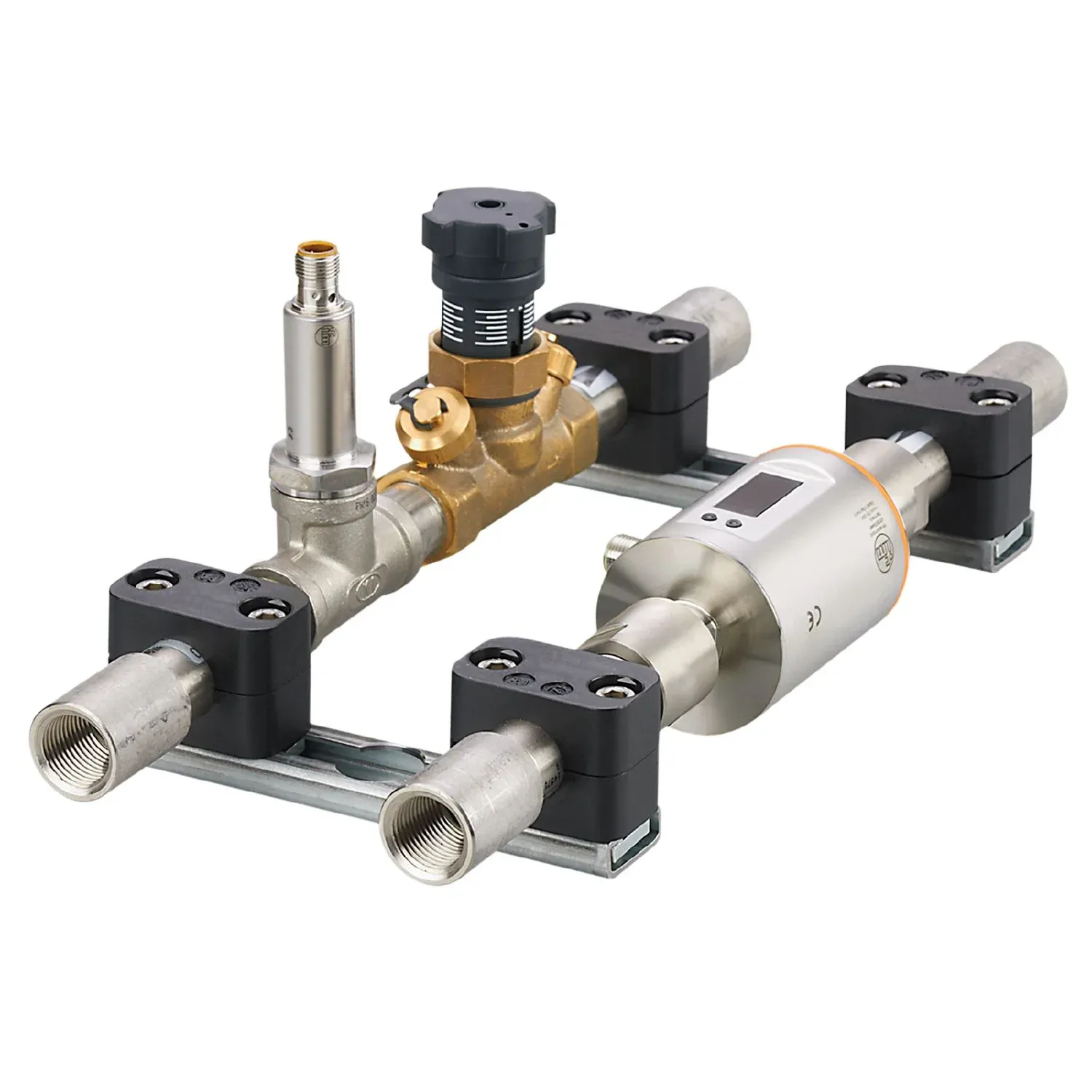

| Components | Magnetic-inductive flow meter, SM6000 Temperature transmitter, TA2405 regulating valve |
Outputs
| Output signal | switching signal; analogue signal; pulse signal; IO-Link |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
Measuring/setting range
| Measuring range [l/min] | 0.1...25 |
|---|---|
| Measuring range [°C] | -50...150 |
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; (sensors) |
Tests / approvals
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
|---|
Mechanical data
| Weight [g] | 2662.35 |
|---|---|
| Type of mounting | Mounting bracket |
| Materials | stainless steel (316L/1.4404); PEI; PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01) |
| Materials (wetted parts) | stainless steel (316L/1.4404); PEEK; FKM; NBR; PVDF |
| Process connection | threaded connection G 1/2 internal thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 2 x M12; Contacts: gold-plated |
|---|
