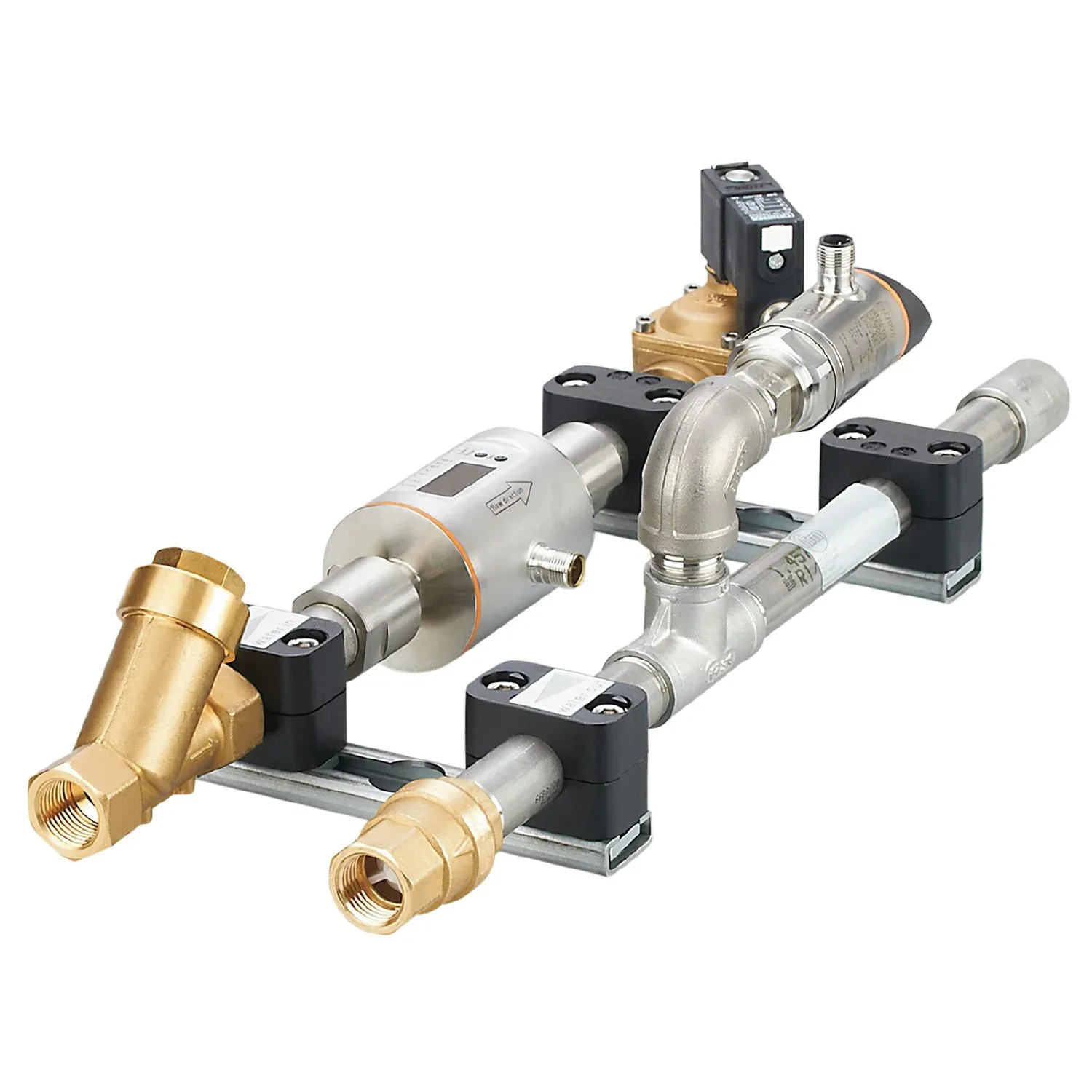

IFM ZZ0452
ZZ0452
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Product characteristics
| Process connection | threaded connection G 1/2 internal thread |
|---|---|
| Measuring range [l/min] | 0.1...25 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | Industrial applications / factory automation; cooling water control |
| Installation | connection to pipe by means of an adapter; tube connection |
| Measuring parameters | flow; temperature; pressure; totaliser |
| Control | manual |
| Media | conductive liquids; hydrous media; glycol solutions |
| Medium temperature [°C] | -10...70 |
| Pressure rating [bar] | 10 |
| Components | Magnetic-inductive flow meter, SM6000 Electronic pressure monitor, PN7094 filter water stop valve backstop |
Outputs
| Output signal | switching signal; analogue signal; pulse signal; IO-Link |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
Measuring/setting range
| Measuring range [bar] | -1...10 |
|---|---|
| Measuring range [l/min] | 0.1...25 |
| Measuring range [°C] | -20...80 |
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; (sensors) |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 3388.5 |
|---|---|
| Type of mounting | Mounting bracket |
| Materials | stainless steel (316L/1.4404); PBT-GF20; PBT; PC; FKM; TPE; gunmetal (2.1096.01) |
| Materials (wetted parts) | stainless steel (316L/1.4404); PEEK; FKM; NBR; PVDF; ceramics |
| Process connection | threaded connection G 1/2 internal thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 3 x M12; Contacts: gold-plated |
|---|
