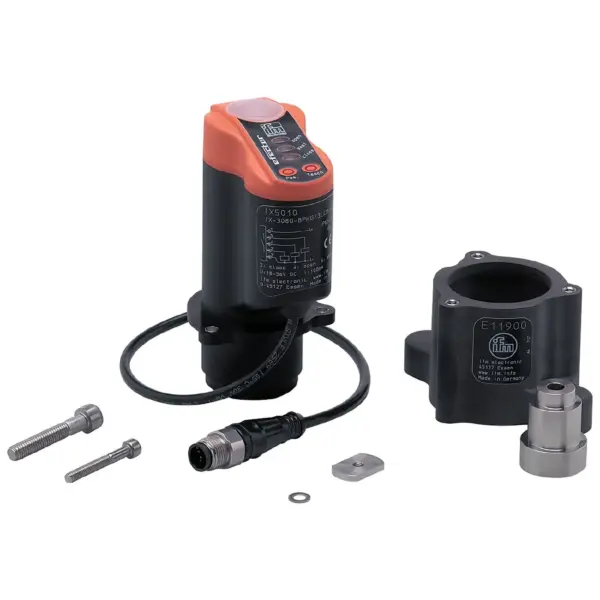

IFM ZZ0214
ZZ0214
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Position feedback for single and double seat valve and for diaphragm valves
Freely selectable switching outputs: valve open / closed, seat lift
Replaces three binary pulse pick-ups
Resolution of 0.2 mm across the entire measuring range
Programming of valve positions with pushbuttons
Specification
Product characteristics
| Dimensions[mm] [mm] | 65 x 43 x 110 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Note on ambient temperature | for firmly laid cable |
| Protection | IP 65; IP 67; (only in conjunction with an installation in the valve head that provides sufficient protection against mechanical damage of the sensor) |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV CD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV coupling clamp EN 61000-4-6 HF conducted 3 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV CD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV coupling clamp |
| EN 61000-4-6 HF conducted | 3 V |
Mechanical data
| Weight[g] [g] | 491 |
|---|---|
| Dimensions[mm] [mm] | 65 x 43 x 110 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
