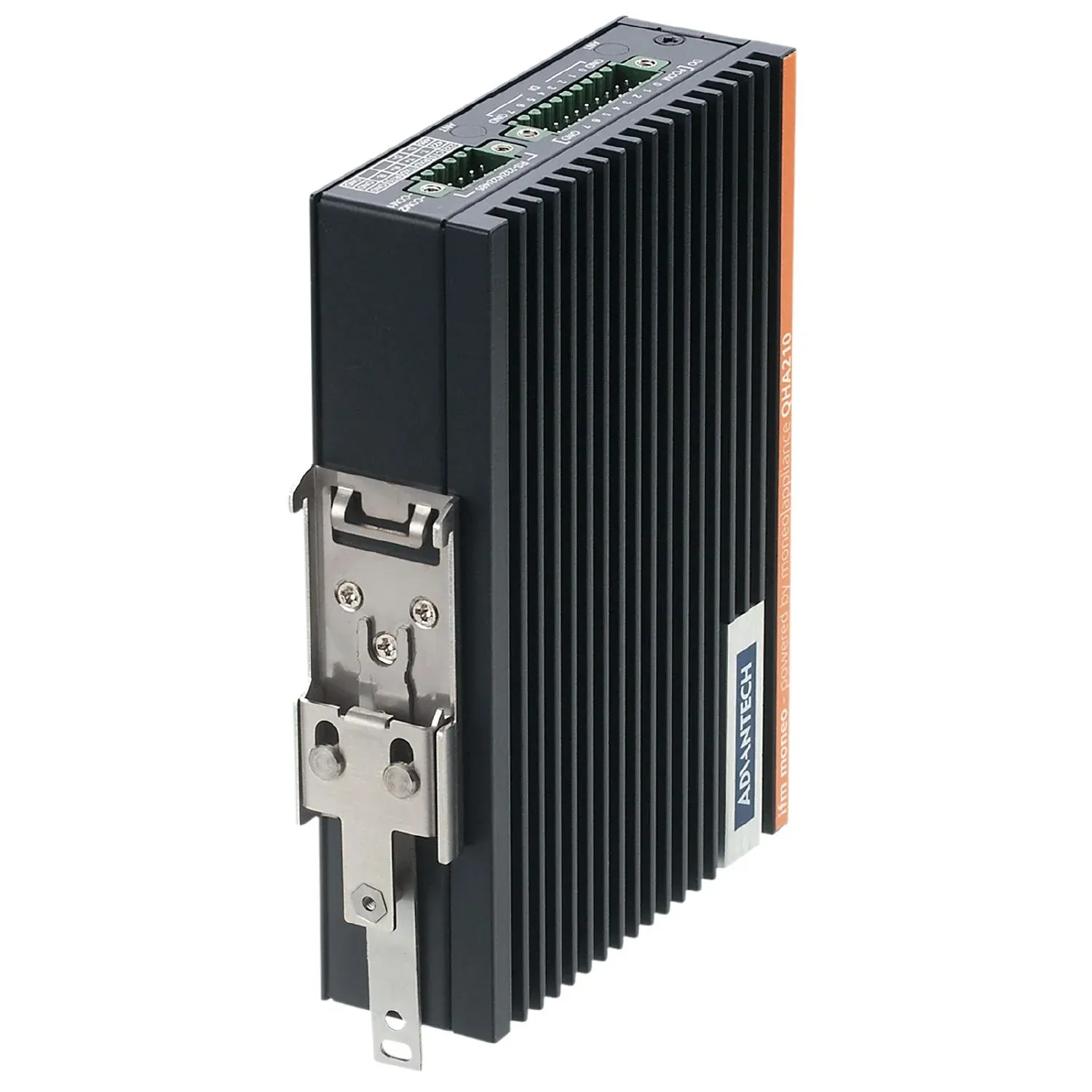

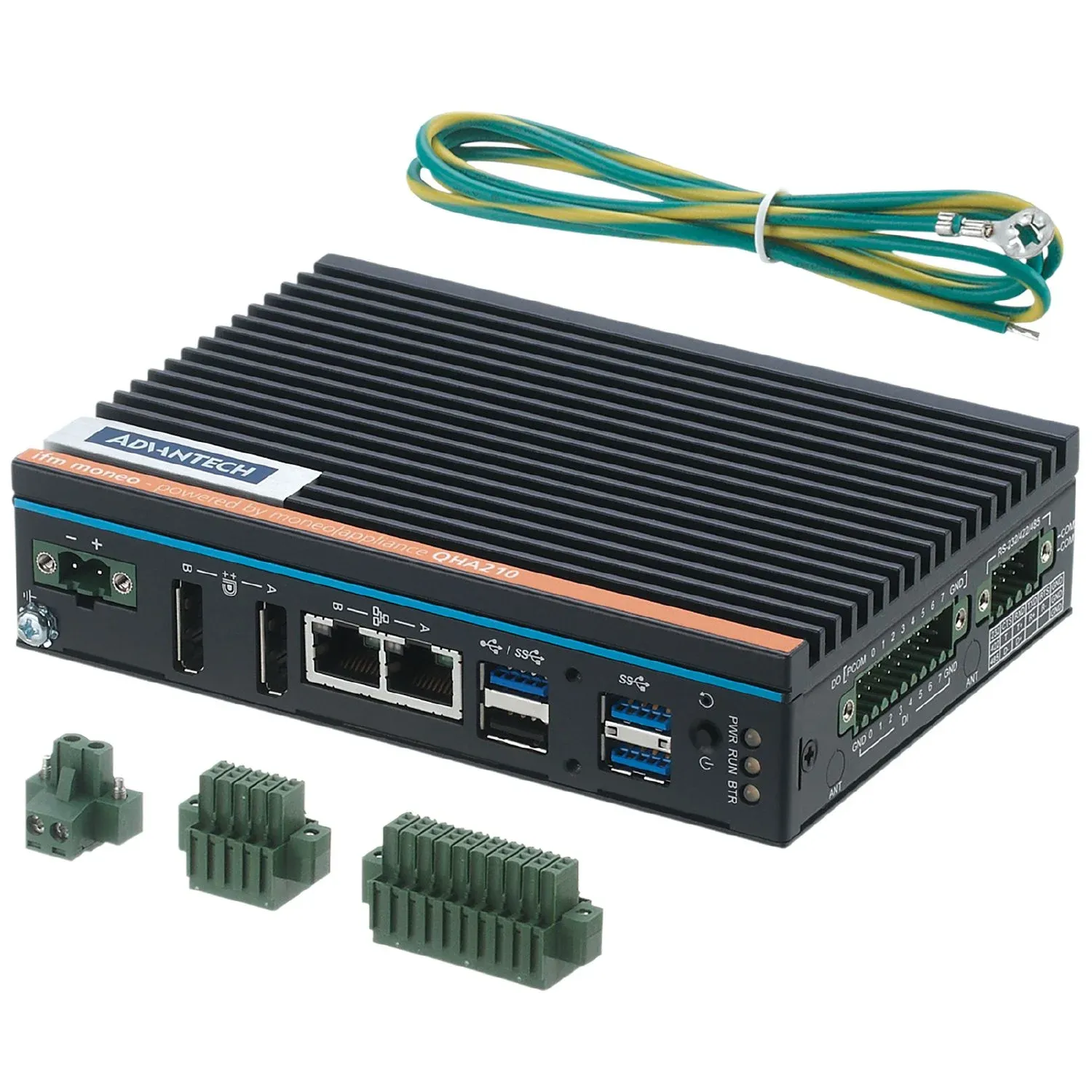

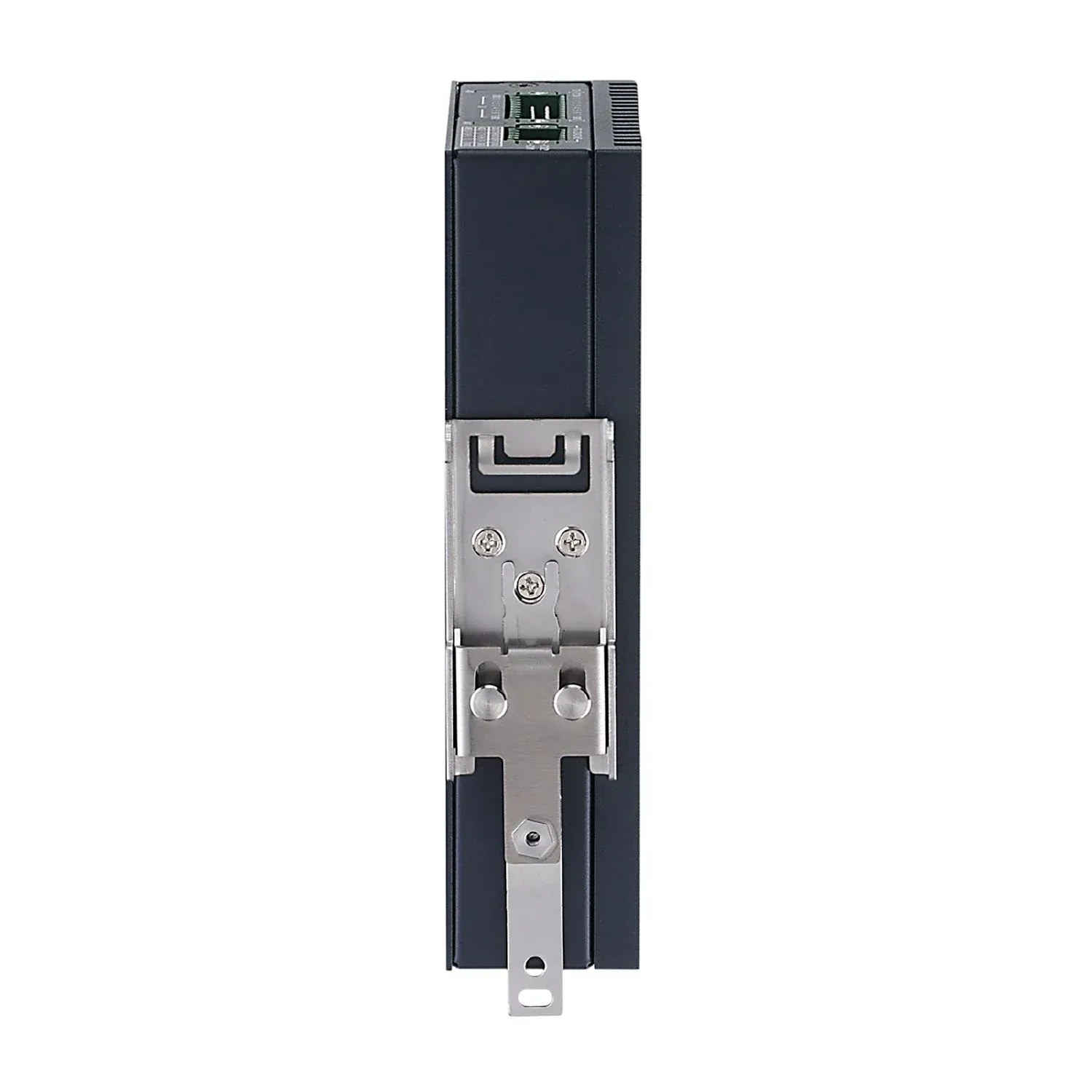

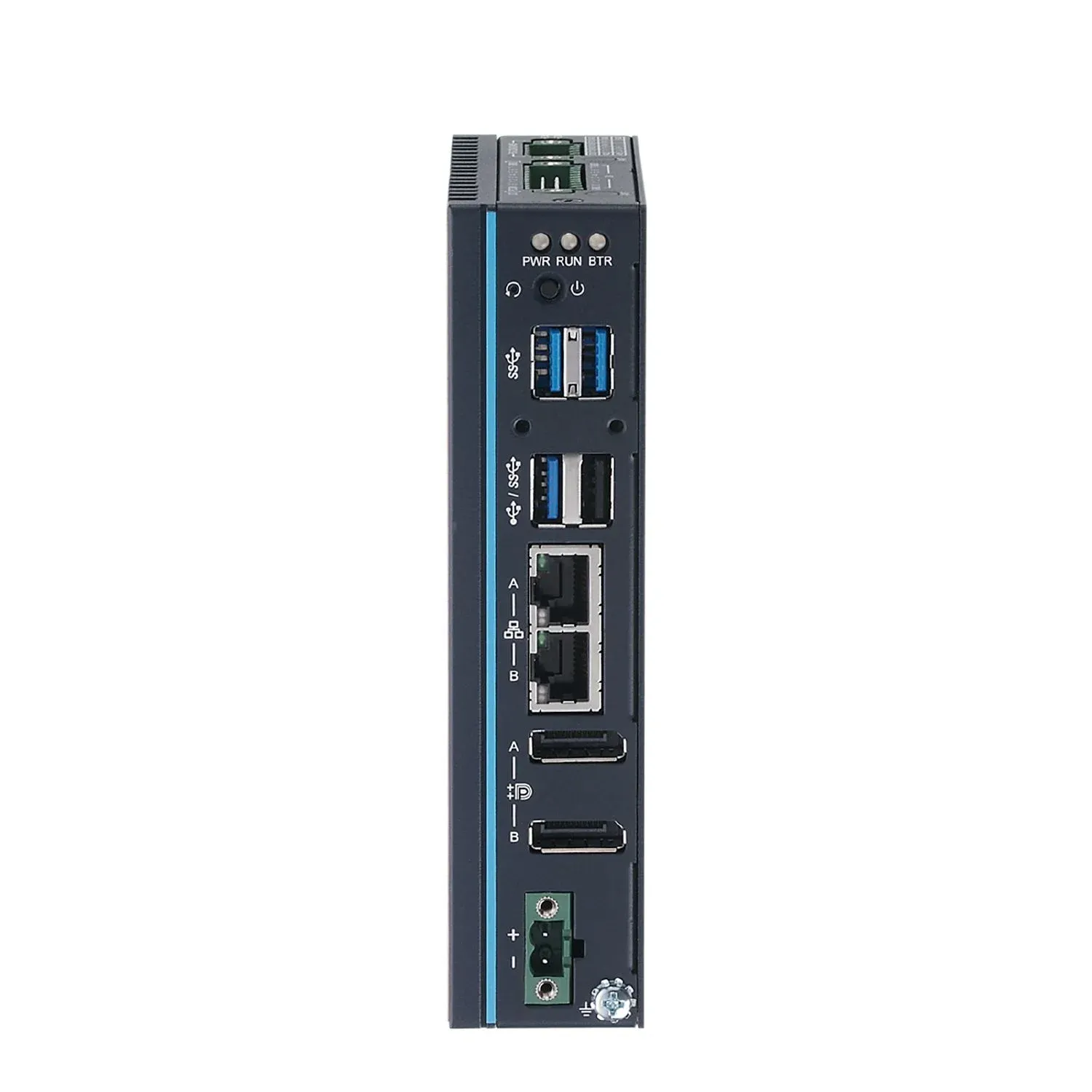

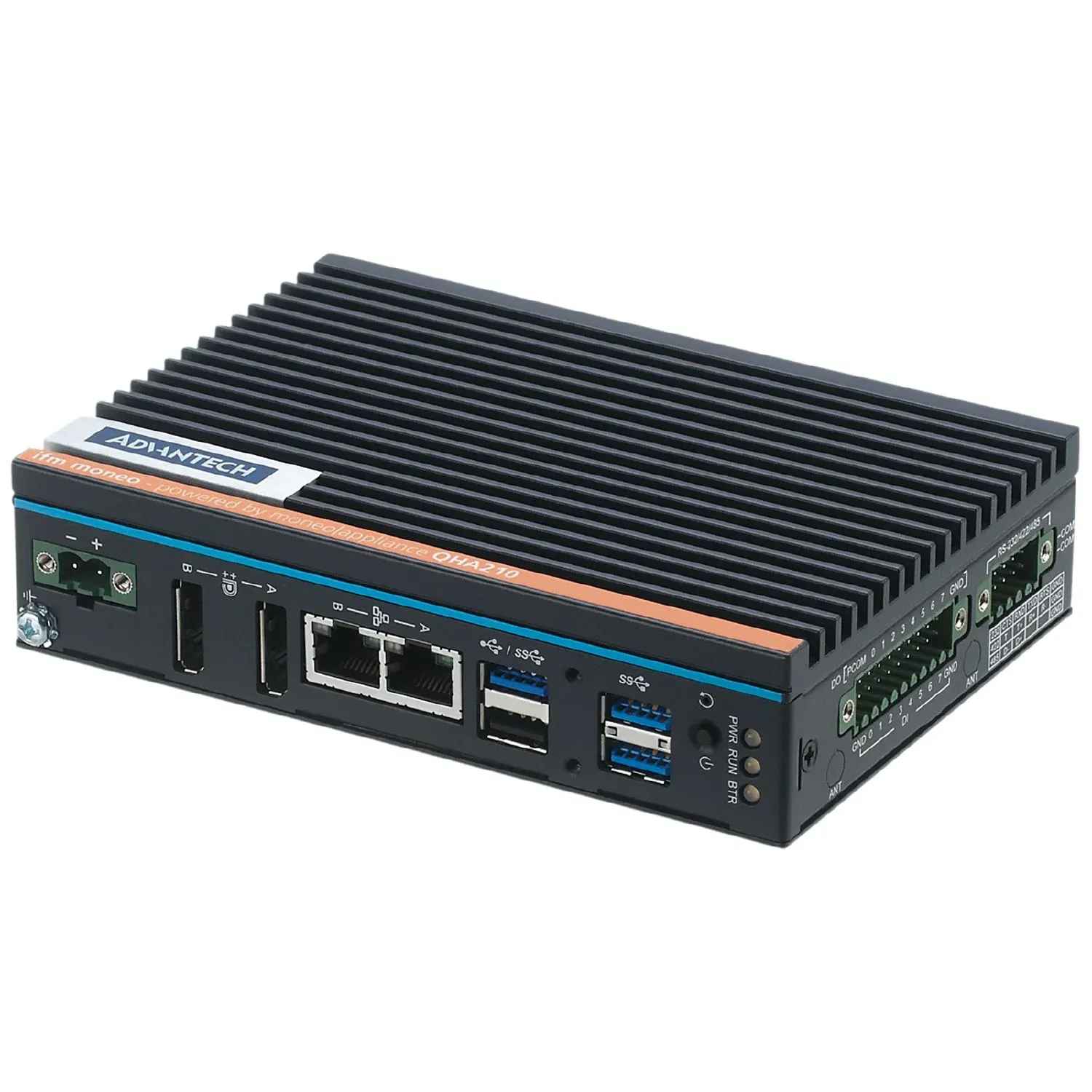

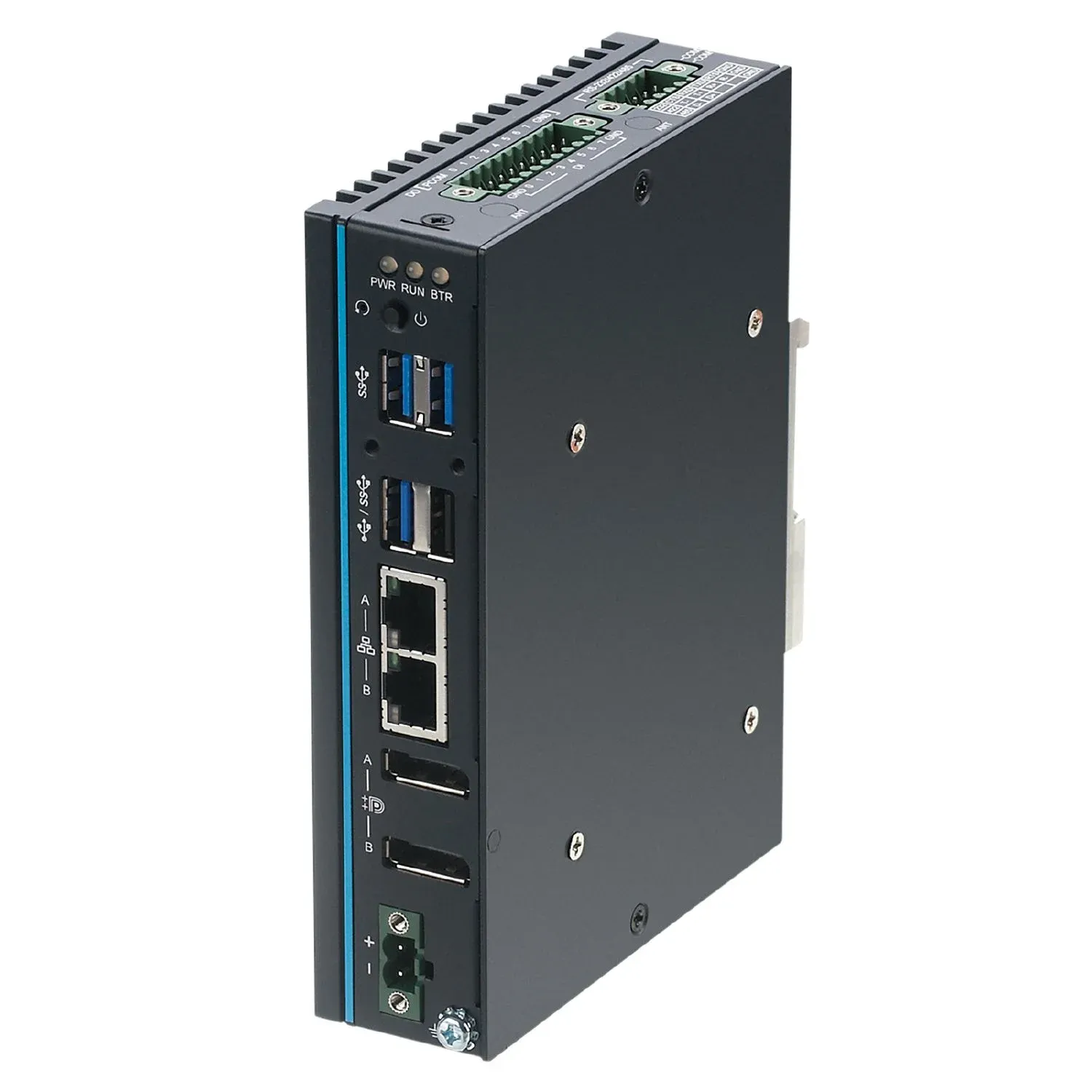

IFM ZJF049
ZJF049
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ideal hardware to operate production-related software
Specification
Application
| Application | IT hardware to operate production-related software providing memory capacity and processing power Easy set-up without requiring special IT knowledge |
|---|---|
| Content description | hardware without software licences |
| Compatibility | can be used independent of IT infrastructure can be integrated in IT network structure at any time |
| Connectivity | interfaces for sensor and IT network |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Power consumption[W] [W] | 21; (maximum: 47) |
Outputs
| Number of video outputs | 2; (DisplayPort) |
|---|
Software / programming
| Operating system | Microsoft Windows 10 IOT |
|---|
Interfaces
| Communication interface | Ethernet; RS232; USB |
|---|---|
| Number of Ethernet interfaces | 2; (GBit) |
| Number of R232 interfaces | 2; (RS232/RS422/RS485) |
| Number of USB interfaces | 4; (3 x USB 3.2 Gen1; 1 x USB 2.0 Type A) |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -20...60 |
| Max. relative air humidity[%] [%] | 95; (40 °C non condensing) |
| Protection | IP 40 |
Tests / approvals
| Shock resistance | IEC60068-2-27 50 g 11 ms |
|---|---|
| IEC60068-2-27 | 50 g 11 ms |
| Vibration resistance | IEC 60068-2-6 4 Grms / 10...500 Hz |
| IEC 60068-2-6 | 4 Grms / 10...500 Hz |
Mechanical data
| Weight[g] [g] | 1272 |
|---|---|
| Dimensions[mm] [mm] | 35 x 105 x 150 |
Hardware
| Processor | Intel Atom E3940 Quad Core |
|---|---|
| TPM chip | V 2.0 |
| BIOS | AMI UEFI (128 Mbit) |
| RAM | 8 GB |
| Mass storage | 256 GB SSD |
Accessories
| Items supplied | Power supply: 1, 24 V DC |
|---|
Remarks
| Remarks | software must be ordered and installed separately for operation |
|---|---|
| Pack quantity | 1 pcs. |
