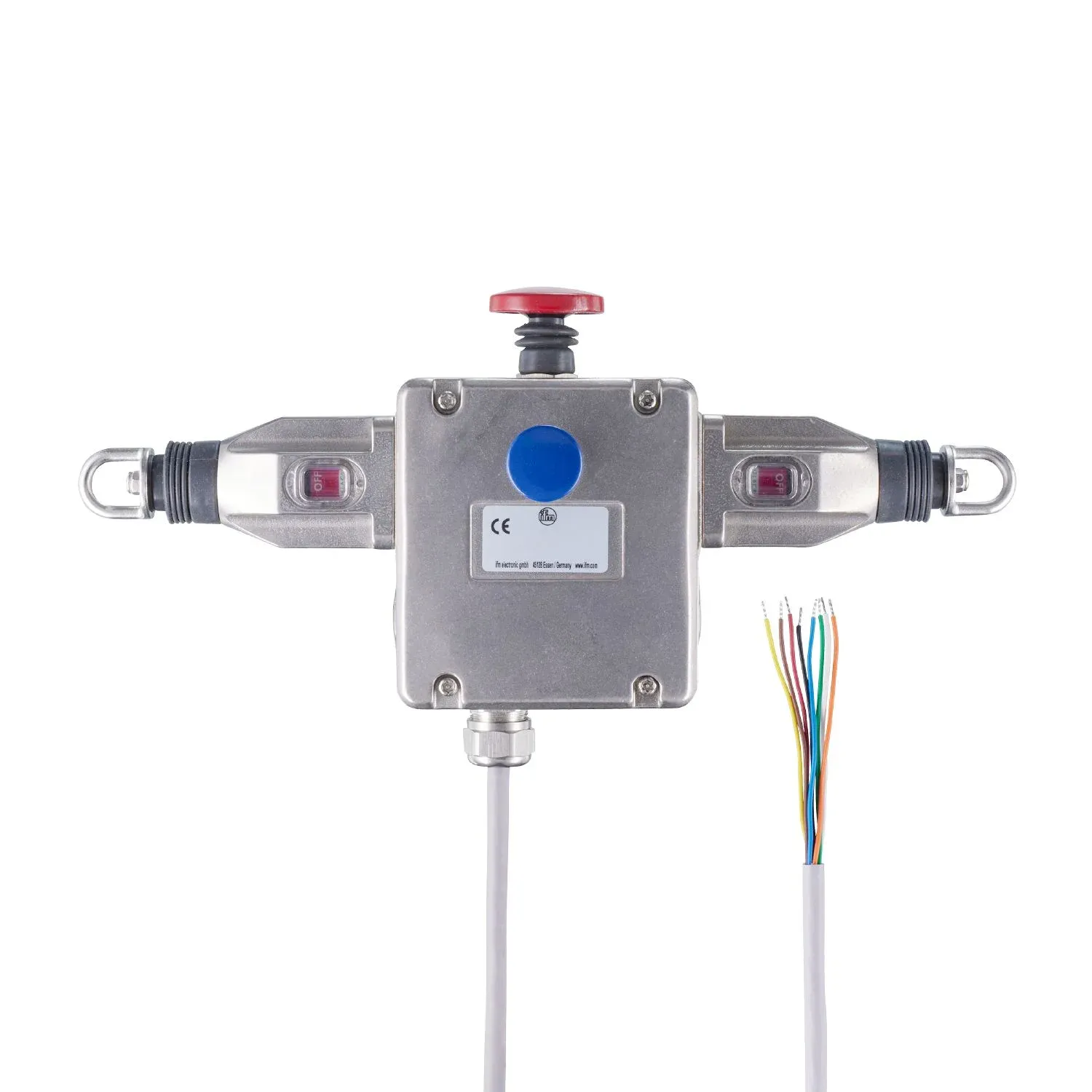

IFM ZB0074
ZB0074
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable protection of extensive hazardous areas
For use on conveyor belts
Robust design for use in harsh industrial environments
Easy setting of the rope tension
Use in zone 21/zone 22 hazardous areas
Specification
Application
| Application | zone 21 hazardous area; zone 22 hazardous area; food industry |
|---|
Electrical data
| Operating voltage[V] [V] | 250 AC/DC |
|---|---|
| Rated insulation voltage[V] [V] | 500 |
Outputs
| Electrical design | snap-action contact; thermal current: 10 A |
|---|---|
| Output function | auxiliary contact 2 x normally open safety contact 2 x normally closed |
| auxiliary contact | 2 x normally open |
| safety contact | 2 x normally closed |
| Contact rating | 2,5 A |
| Short-circuit protection | no |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance | 15 g / 11 ms |
|---|---|
| Vibration resistance | IEC62-2-6 10-55 Hz / +1 Hz |
| IEC62-2-6 | 10-55 Hz / +1 Hz |
Mechanical data
| Weight[g] [g] | 3447.2 |
|---|---|
| Materials | housing: stainless steel (316 / 1.4401) |
| Information on service life | Switching cycles (mechanical): > 1.000.000 |
| Switching cycles (mechanical): | > 1.000.000 |
| Installation position | any |
| Rope span | 125 m; (per side) |
| Activation force[N] [N] | < 125; (tension force: 130 N) |
Electrical connection
| Required protection | 10 A; fast acting |
|---|
Remarks
| Remarks | For information about installation and operation please see the operating instructions. Ex-approved switch type LS-Ex: Ex d IIC T6 (-20 °C ≤ Ta ≤ 60 °C) Gb; Ex td IIIC T85 °C ( -20 °C ≤ Ta ≤ 60 °C) Db |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 3 m; Cable gland (stainless steel) |
|---|
