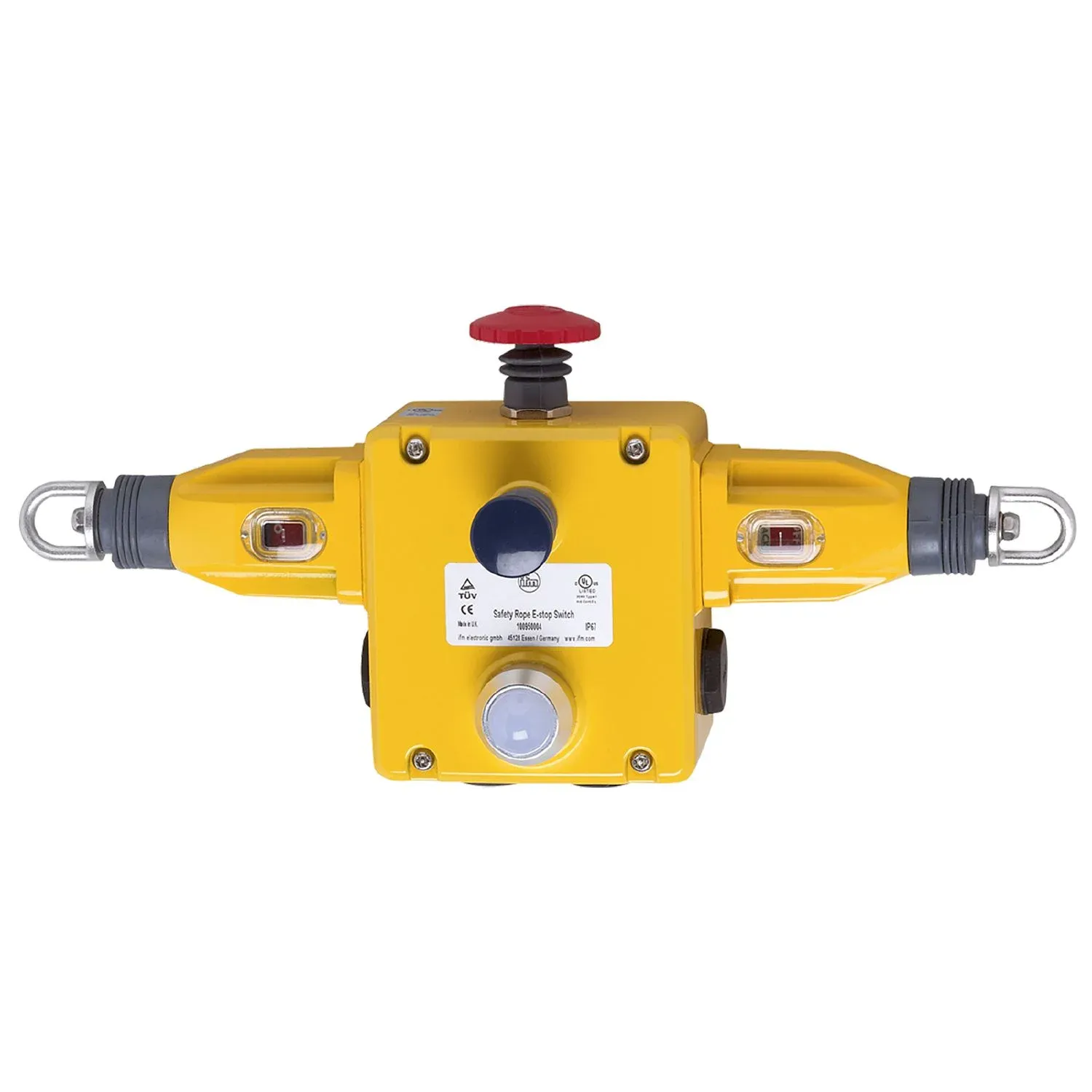

IFM ZB0051
ZB0051
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable protection of extensive hazardous areas
For use on conveyor belts
Robust design for use in harsh industrial environments
Easy setting of the rope tension
Integration into AS-i networks
Specification
Electrical data
| Operating voltage[V] [V] | 110...240 AC / 5...24 DC; (LED) |
|---|---|
| Rated insulation voltage[V] [V] | 500 |
Outputs
| Electrical design | snap-action contact; max. switching voltage: 240 V; switching capacity: 720 VA; thermal current: 10 A |
|---|---|
| Output function | auxiliary contact 2 x normally open safety contact 4 x NC |
| auxiliary contact | 2 x normally open |
| safety contact | 4 x NC |
| Minimum load current[mA] [mA] | 5; (5 V DC) |
| Contact rating | 3 A (240 V AC) / 6 A (120 V AC) / 2,5 A (24 V DC); (inductive load) |
| Short-circuit protection | no |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Shock resistance | 15 g / 11 ms |
|---|---|
| Vibration resistance | 10-500 Hz |
Mechanical data
| Weight[g] [g] | 1536.5 |
|---|---|
| Materials | housing: diecast aluminium yellow; switching contact: silver-plated |
| Information on service life | Switching cycles (mechanical): > 1.000.000 |
| Switching cycles (mechanical): | > 1.000.000 |
| Installation position | any |
| Rope span | 125 m; (per side) |
| Activation force[N] [N] | < 125; (tension force: 130 N) |
Displays / operating elements
| Display | operation LED, green errors LED, red flashing |
|---|---|
| operation | LED, green |
| errors | LED, red flashing |
Electrical connection
| Required protection | 10 A; fast acting |
|---|
Remarks
| Remarks | For information about installation and operation please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | ...2.5 mm² |
|---|
