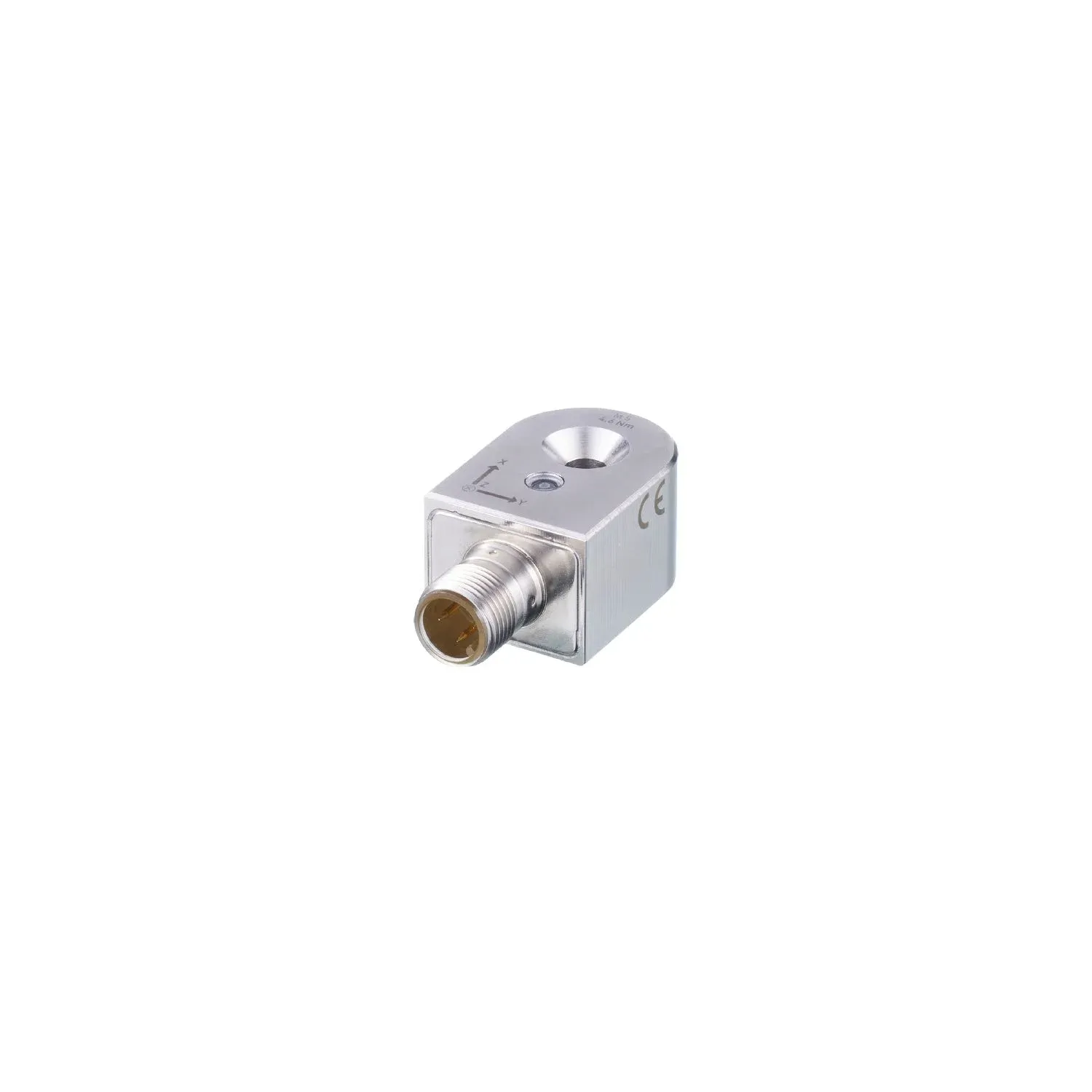

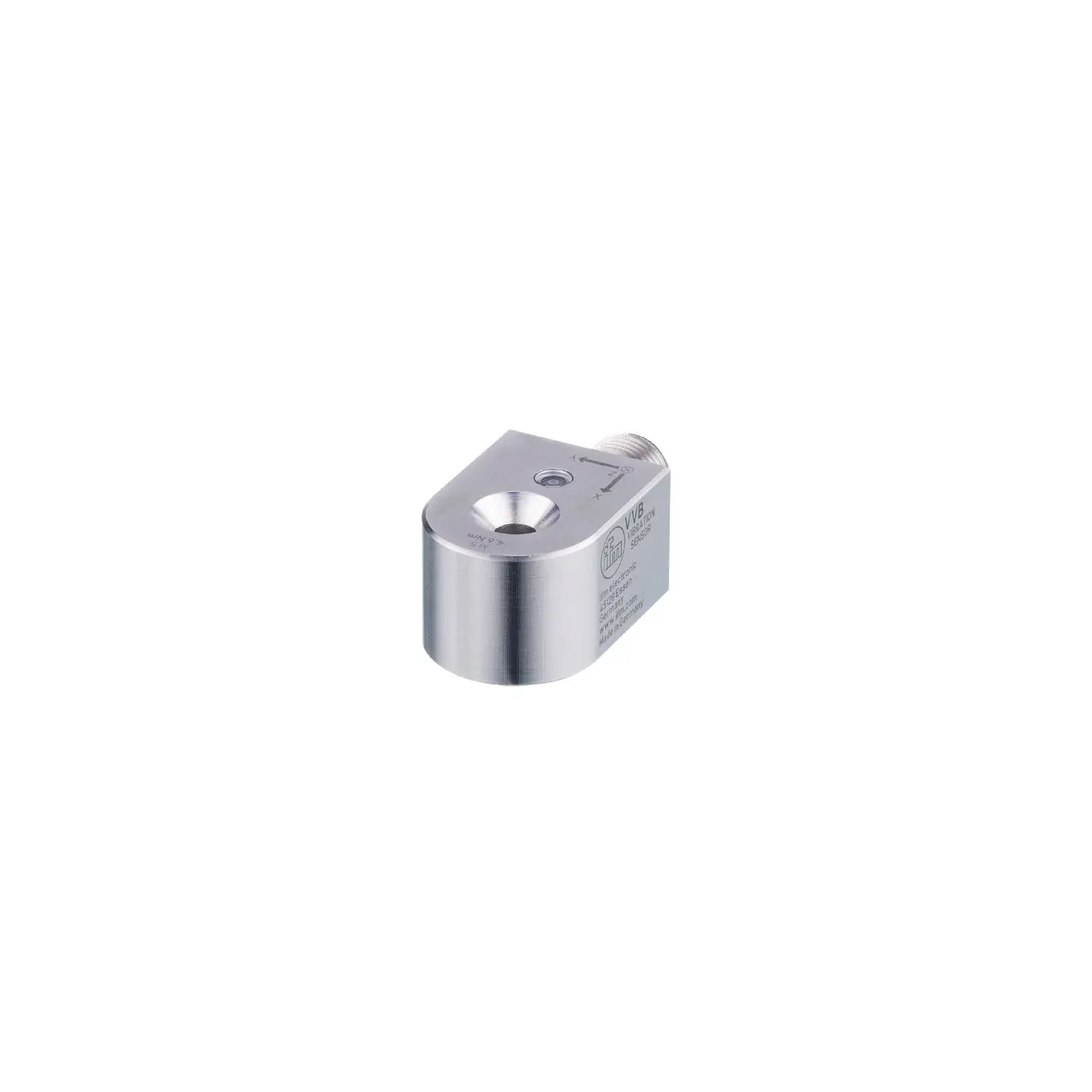

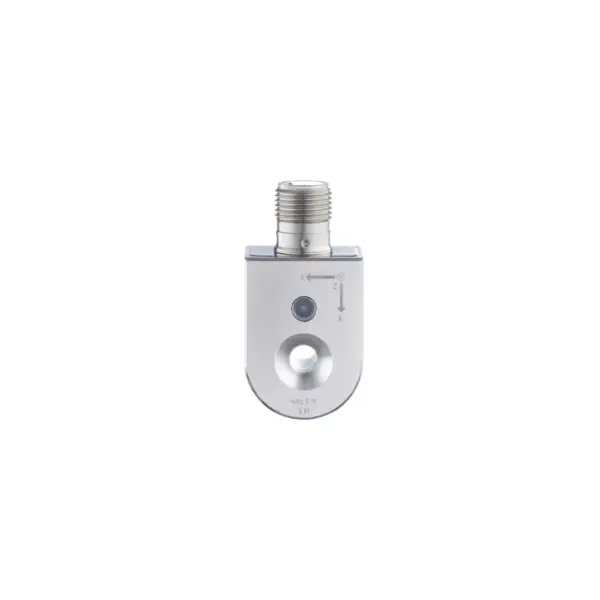

IFM VVB302

VVB302

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

reliable and permanent monitoring of condition parameters in 3 axes
condition-based analysis of imbalance and rolling element bearing damages
suited for harsh industrial environments, with sensor self-test and status LED
asynchronous transmission of raw data (BLOB) and integrated characteristic value history
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Frequency range[Hz] [Hz]2...5600
Measuring principlecapacitive

Application

DesignDataScience condition monitoring
Applicationindustrial machines

Electrical data

Operating voltage[V] [V]18...30 DC
Current consumption[mA] [mA]< 50
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Sensor typemicroelectromechanical system (MEMS)

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Output signalswitching signal; IO-Link
Electrical designPNP/NPN; (configurable)
Number of digital outputs2
Output functionnormally open / normally closed
Max. voltage drop switching output DC[V] [V]2
Max. current load per output[mA] [mA]100
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Note on setpoint SPparameterisable
Frequency range[Hz] [Hz]2...5600
Measuring principlecapacitive
Number of measurement axes3
Measuring range of vibration[m/s] [m/s]0...0.3
Resolution[m/s] [m/s]0.0001
Set point SP[m/s] [m/s]0.0002...0.3
Reset point rP[m/s] [m/s]0...0.2998
Measuring range of vibration[m/s²] [m/s²]0...156.91
Resolution[m/s²] [m/s²]0.01
Set point SP[m/s²] [m/s²]2...156.91
Reset point rP[m/s²] [m/s²]0...154.91
Measuring range[°C] [°C]-30...80
Resolution[°C] [°C]0.1
Set point SP[°C] [°C]-28...80
Reset point rP[°C] [°C]-30...78

Accuracy / deviations

Accuracy[K] [K]± 5
Linearity deviation2; (% of the final value)
Accuracy2-5000Hz +/- 10%, 5000...5600Hz -3dB

Software / programming

Parameter setting optionsIO-Link
Diagnostic functionsself-test

Interfaces

Communication interfaceIO-Link
Transmission typeCOM3 (230,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9: 2013-07
ProfilesBLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
Function
Locator
Function
ProductURI
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
FunctionProductURI
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]4.1
IO-Link process data (cyclical)v-RMS (x)
16
v-RMS (y)
16
v-RMS (z)
16
v-RMS (Magnitude)
16
scaling / v-RMS
8
a-Peak (x)
16
a-Peak (y)
16
a-Peak (z)
16
a-Peak ( Magnitude)
16
a-RMS (x)
16
a-RMS (y)
16
a-RMS (z)
16
a-RMS ( Magnitude)
16
scaling / a-Peak/a-RMS
8
temperature
16
scaling / temperature
8
device status
4
unbalance / bearing event
1
virtual switching output (v-ou1)
1
binary switching information
2
v-RMS (x)16
v-RMS (y)16
v-RMS (z)16
v-RMS (Magnitude)16
scaling / v-RMS8
a-Peak (x)16
a-Peak (y)16
a-Peak (z)16
a-Peak ( Magnitude)16
a-RMS (x)16
a-RMS (y)16
a-RMS (z)16
a-RMS ( Magnitude)16
scaling / a-Peak/a-RMS8
temperature16
scaling / temperature8
device status4
unbalance / bearing event1
virtual switching output (v-ou1)1
binary switching information2
IO-Link functions (acyclical)filter for v-RMS, a-RMS, a-Peak; Hysteresis; window; switch points; switching logic; unbalance measurement; machine operating hours counter; bearing analysis (BearingScout)
Supported DeviceIDsdefault
1778
default1778
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]-30...80
Storage temperature[°C] [°C]-30...80
ProtectionIP 67; IP 68; IP 69

Tests / approvals

EMCEN IEC 61000-6-2
immunity / industrial environments
EN IEC 61000-6-4
noise emission
EN IEC 61000-6-2immunity / industrial environments
EN IEC 61000-6-4noise emission
Shock resistanceDIN EN 60068-2-27
50 g 11 ms
500 g 1 ms
DIN EN 60068-2-2750 g 11 ms
Vibration resistanceDIN EN 60068-2-6
20 g / 10...3000 Hz
DIN EN 60068-2-620 g / 10...3000 Hz
MTTF[years] [years]480
UL approvalUL approval no.
L006
File number UL
E251902
UL approval no.L006
File number ULE251902
Standardmechanical vibration; ISO 10816-3; ISO 2954; ISO 20816-3

Mechanical data

Weight[g] [g]98.4
Type of mountingmounting screw
Materialshousing: stainless steel (316L/1.4404)
Tightening torque[Nm] [Nm]4.6

Displays / operating elements

Displayoperation
1 LED, green
fault
1 LED, red
operation1 LED, green
fault1 LED, red

Accessories

Items suppliedmounting screw: 1 x (M5 x 25 mm)

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Maximum cable length: 20 m
