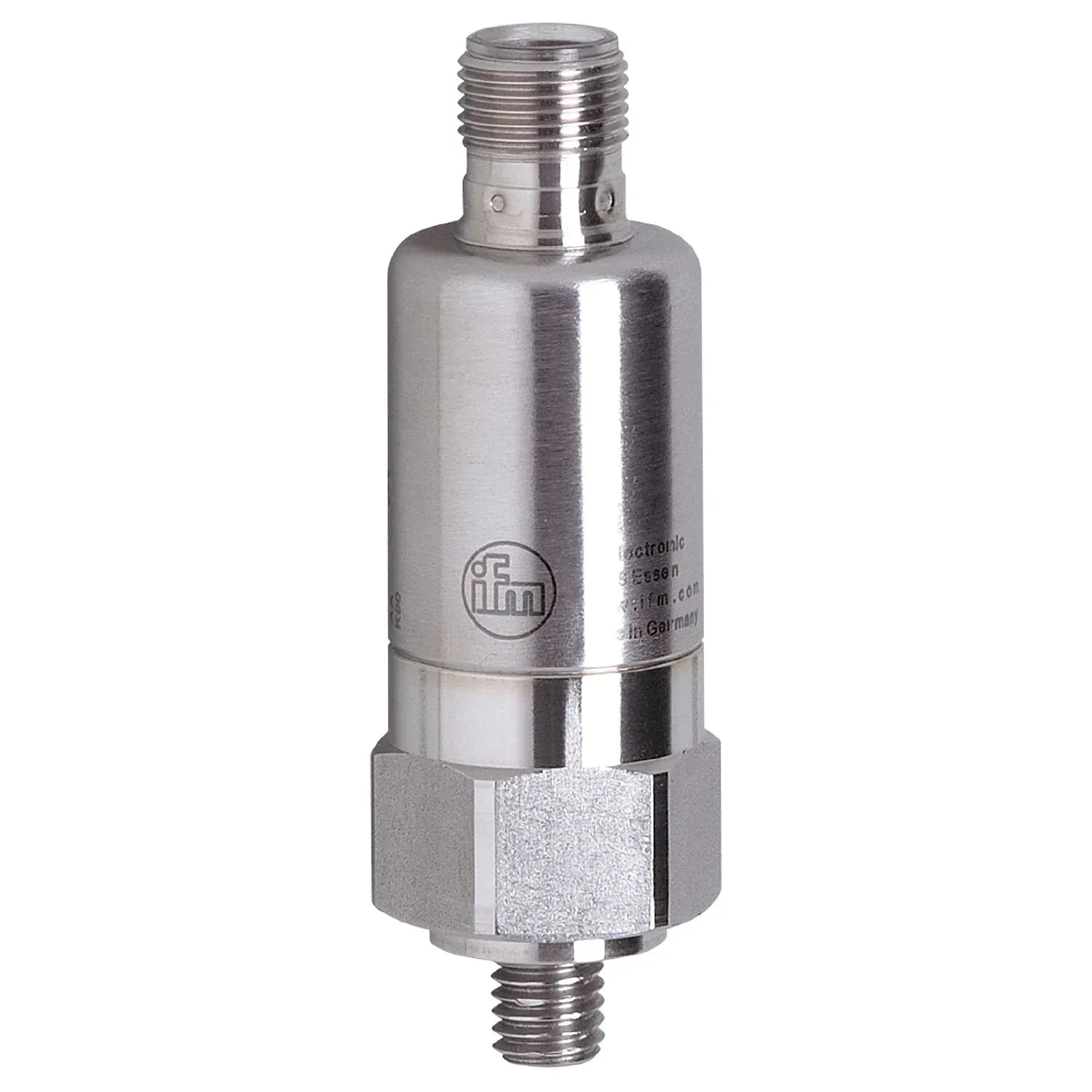

IFM VTV122
VTV122
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable permanent monitoring of the overall vibration to DIN ISO 10816
Two-wire technology
Precise linearized analogue output
Large operating temperature range and high protection rating
Compact and robust housing for the requirements of harsh industrial environments
Specification
Product characteristics
| Measuring range of vibration[mm/s] [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range[Hz] [Hz] | 10...1000 |
Application
| Application | vibration transmitter to ISO 10816 |
|---|
Electrical data
| Operating voltage[V] [V] | 9.6...32 DC |
|---|---|
| Protection class | III |
| Sensor type | microelectromechanical system (MEMS) |
Inputs / outputs
| Total number of inputs and outputs | 1 |
|---|
Outputs
| Analogue current output[mA] [mA] | 4...20 |
|---|---|
| Max. load[Ω] [Ω] | < (Ub - 9,6 V) x 50; Ub = 24 V: 720 |
Measuring/setting range
| Measuring range of vibration[mm/s] [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range[Hz] [Hz] | 10...1000 |
| Number of measurement axes | 1 |
Accuracy / deviations
| Measuring error[% of the final value] [% of the final value] | < ± 3 |
|---|---|
| Repeatability | < 0,5; (% of the final value) |
| Linearity deviation | 0,25 % |
Operating conditions
| Ambient temperature[°C] [°C] | -30...125 |
|---|---|
| Note on ambient temperature | UL application: < 80 °C |
| Storage temperature[°C] [°C] | -30...125 |
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g 11 ms 500 g 1 ms |
| DIN EN 60068-2-27 | 50 g 11 ms |
| Vibration resistance | DIN EN 60068-2-6 20 g / 10...3000 Hz |
| DIN EN 60068-2-6 | 20 g / 10...3000 Hz |
| MTTF[years] [years] | 868 |
Mechanical data
| Weight[g] [g] | 123.5 |
|---|---|
| Type of mounting | set screw |
| Materials | stainless steel (316L/1.4404) |
| Tightening torque[Nm] [Nm] | 8 |
Accessories
| Items supplied | set screw: 1 x (1/4"-28 UNF / M8 x 1,25 mm) set screw: 1 x (1/4"-28 UNF) |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
