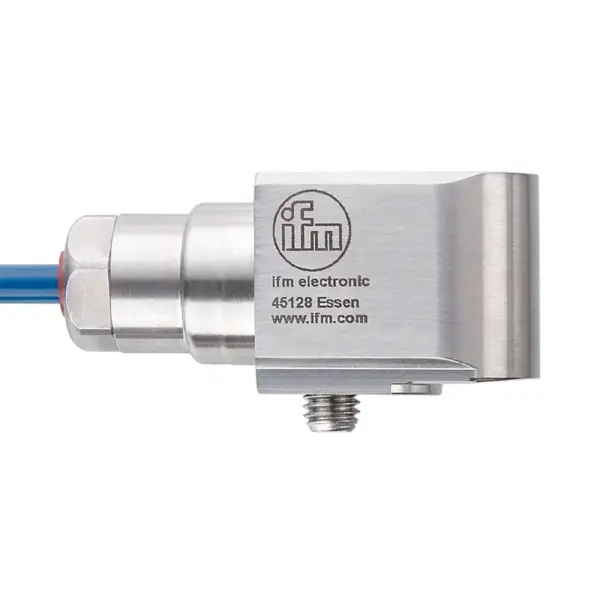

IFM VSP02A
VSP02A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Protection against permanent machine overload and unexpected standstill
For connection to a diagnostic electronics for vibration sensors
Large operating temperature range and high protection rating for the requirements of harsh industrial environments
Compact and robust stainless steel housing with high mechanical overload protection
Specification
Product characteristics
| Measuring range of vibration[g] [g] | -50...50 |
|---|---|
| Frequency range[Hz] [Hz] | 2...10000 |
| Measuring principle | piezoelectric |
Application
| Design | for connection to external diagnostic electronics VSExxx |
|---|
Electrical data
| Switching amplifiers | connection to intrinsically safe supply isolators (Ex ia) |
|---|---|
| Operating voltage[V] [V] | 10...12 DC |
| Current consumption[mA] [mA] | 0.5...8 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Max. load[Ω] [Ω] | 200 |
|---|---|
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range of vibration[g] [g] | -50...50 |
|---|---|
| Frequency range[Hz] [Hz] | 2...10000 |
| Measuring principle | piezoelectric |
| Sensitivity[mV/g] [mV/g] | 100 |
| Noise density[mg] [mg] | 0.1 |
| Max. transverse sensitivity[%] [%] | 5 |
| Minimum measuring time[s] [s] | 2 |
| Number of measurement axes | 1 |
Operating conditions
| Ambient temperature[°C] [°C] | -55...90 |
|---|---|
| Storage temperature[°C] [°C] | -55...90 |
| Protection | IP 68; (1D application: IP 65) |
Tests / approvals
| Approval | Baseefa12ATEX0247; IECEx BAS 12.0132 |
|---|---|
| ATEX marking | I M1 Ex ia I Ma (-55°C < Ta < +90°C) |
| EMC | EN 61000-6-2 EN 61000-6-4 |
| Shock resistance | 5000 g |
Mechanical data
| Weight[g] [g] | 669 |
|---|---|
| Type of mounting | M8 x 1,25 |
| Dimensions[mm] [mm] | 30 x 25.5 x 64.7 |
| Materials | housing: stainless steel |
| Tightening torque[Nm] [Nm] | 8 |
Accessories
| Accessories (optional) | Safety barrier, ZB0633 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR |
|---|
