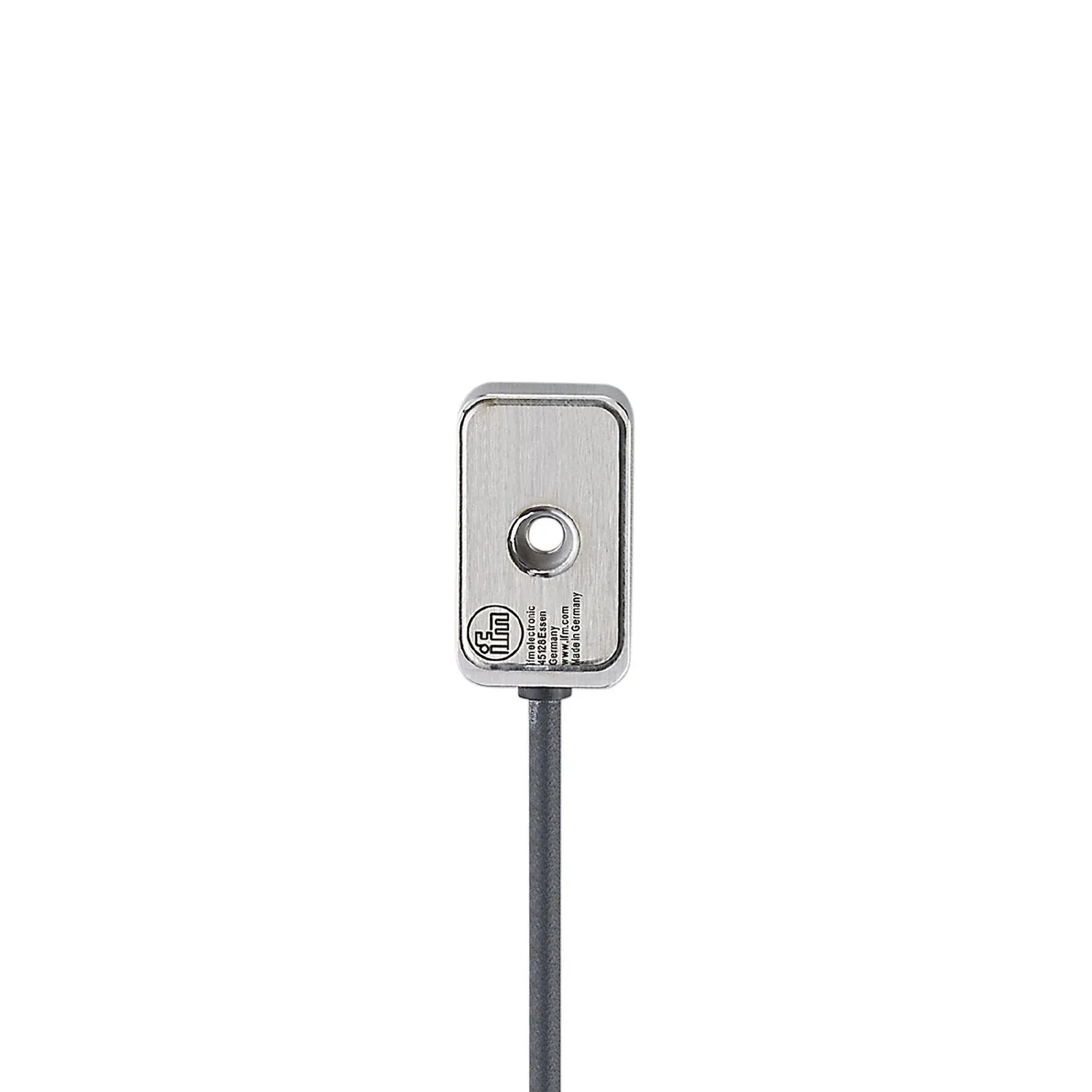

For reliable vibration detection on machines and plants in 3 measurement axes (x, y and z)
For connection to a diagnostic electronics for vibration sensors
High protection rating for the requirements of harsh industrial environments
Compact and robust stainless steel housing with high mechanical overload protection
Universal use thanks to the IEPE interface
Specification
Product characteristics
| Measuring range of vibration[g] [g] | -40...40 |
|---|---|
| Frequency range[Hz] [Hz] | 0...4500 |
| Measuring principle | capacitive |
Application
| Special feature | Screened cable; Drag chain suitability |
|---|
Electrical data
| Bias voltage DC[V] [V] | 11...16 |
|---|---|
| Operating current[mA] [mA] | 4...6 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Sensor type | microelectromechanical system (MEMS) |
Measuring/setting range
| Measuring range of vibration[g] [g] | -40...40 |
|---|---|
| Frequency range[Hz] [Hz] | 0...4500 |
| Measuring principle | capacitive |
| Max. transverse sensitivity[%] [%] | 5 |
| Number of measurement axes | 3 |
Accuracy / deviations
| Accuracy | 0...3 kHz: +/- 10 % 3...4.5 kHz: 3 dB |
|---|---|
| Measuring sensitivity | 100 mV/g |
| Linearity deviation[% of the span] [% of the span] | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...85 |
|---|---|
| Storage temperature[°C] [°C] | -30...100 |
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g 11 ms |
| DIN EN 60068-2-27 | 50 g 11 ms |
| Vibration resistance | DIN EN 60068-2-6 20 g / 10...3000 Hz |
| DIN EN 60068-2-6 | 20 g / 10...3000 Hz |
| MTTF[years] [years] | 529 |
| UL approval | Ta ≤ 70 °C Enclosure type 1 power supply Limited Voltage/Current UL approval no. L003 File number UL E251902 |
| Ta | ≤ 70 °C |
| Enclosure type | 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | L003 |
| File number UL | E251902 |
Mechanical data
| Weight[g] [g] | 427.6 |
|---|---|
| Type of mounting | mounting screw |
| Dimensions[mm] [mm] | 26.2 x 47.3 x 11.6 |
| Materials | housing: stainless steel (444/1.4404) |
| Tightening torque[Nm] [Nm] | 3.5 |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 4 x cable diameter |
| bending radius for flexible use | min. 10 x cable diameter |
| bending radius for fixed installation | min. 4 x cable diameter |
Accessories
| Items supplied | socket head screw: 1 x (M5 x 12 mm) |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR, Ø 4.9 mm, shielded; Maximum cable length: 250 m; screen (connected to the housing); 5 x 0.14 mm² |
|---|
