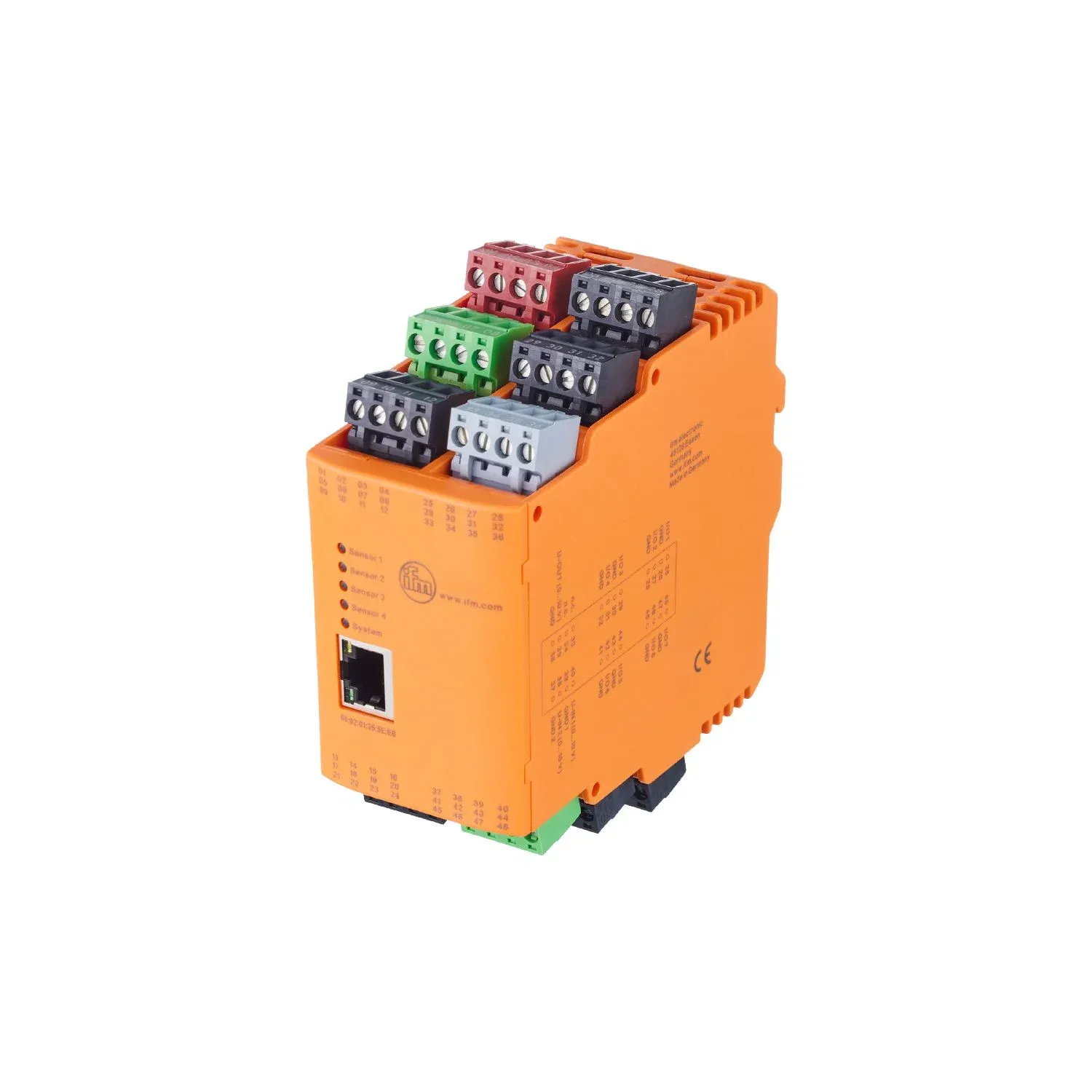

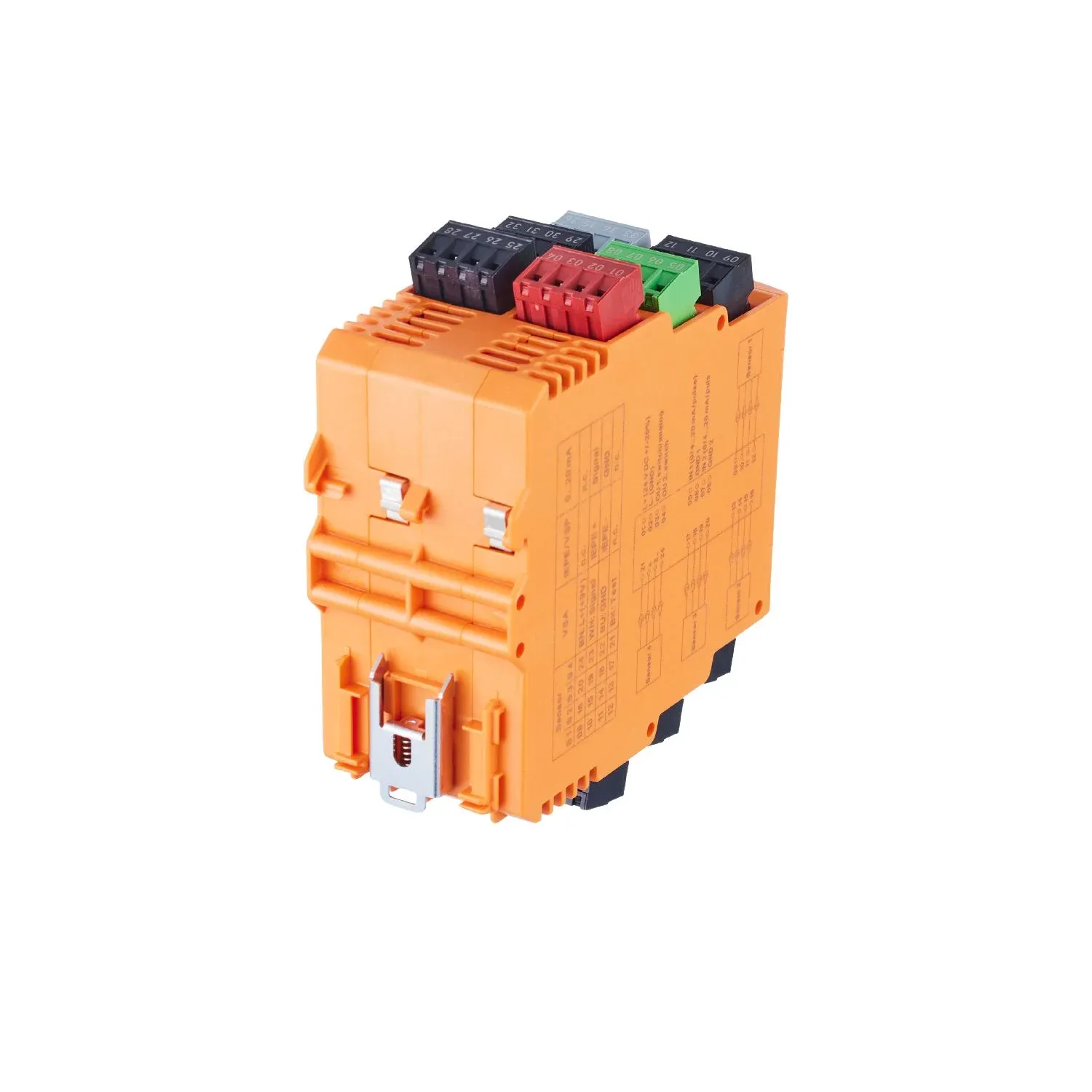

IFM VSE100
VSE100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Application
| Design | housing for DIN rail mounting, parameter setting via PC software, VES004 |
|---|---|
| Application | continuous vibration monitoring |
Electrical data
| Operating voltage tolerance[%] [%] | 20 |
|---|---|
| Operating voltage[V] [V] | 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption[mA] [mA] | 200; (24 V DC) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16; (parameterisable) |
|---|
Multifunktionale Ein-/Ausgänge
| Number | 8 |
|---|---|
| Connection | I/O1...I/O8 |
| Digital input | Circuit HTL |
| Circuit | HTL |
| Digital output | Electrical design PNP Output function normally open / normally closed (configurable) |
| Electrical design | PNP |
| Output function | normally open / normally closed (configurable) |
Inputs
| Number | 2 |
|---|---|
| Connection | U-IN1, U-IN2 |
| Analogue input | function type Voltage Connection U-IN1, U-IN2 input range [V] 0...10 Resolution 12 bit |
| function type | Voltage |
| input range | 0...10 mA / IEPE / 4...20 mA |
| input frequency [Hz] | 0,1...12000 |
| Resolution | 12 bit |
| sampling rate | 100 kSamples |
| Digital input | function type pulse Circuit HTL frequency [Hz] 0,1...100000 |
| Circuit | HTL |
| frequency [Hz] | 0,1...100000 |
| input range [mA] | 4...20 |
| input range [V] | 0...10 |
Outputs
| Max. load[Ω] [Ω] | 500 |
|---|---|
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Number | 1 |
| Connection | OU2 |
| Digital output | Electrical design PNP Output function normally open / normally closed (configurable) |
| Electrical design | PNP |
| Output function | normally open / normally closed (configurable) |
| Analogue output | function type Voltage Connection U-OUT output range [V] 0...10 |
| function type | Voltage |
| output range [mA] | 4...20 |
| output range [V] | 0...10 |
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10/100 MBit/s |
| Connector type | RJ45 |
| Protocol | TCP/IP |
| Factory settings | IP address: 192.168.0.1 port 3321 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | 0...70 |
| Protection | IP 20 |
Tests / approvals
| EMC | EN IEC 61000-6-2 EN IEC 61000-6-4 |
|---|---|
| MTTF[years] [years] | 89 |
Mechanical data
| Weight[g] [g] | 460.6 |
|---|---|
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 114.2 x 50 x 105.3 |
| Materials | Housing: PA |
Data memories
| History memory | yes |
|---|---|
| Data memory buffered | yes |
| Data memory type | ring memory; FIFO |
| Real-time clock | yes |
| Memory location | internal |
| Memory interval | min. 1 min |
| Memory size | 881664 data records |
Accessories
| Accessories (optional) | cross-over Ethernet patch cable for the direct connection to the PC |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| COMBICON | ; Maximum cable length: 250 m |
|---|
Electrical connection - Ethernet
| Connector | RJ45 |
|---|
