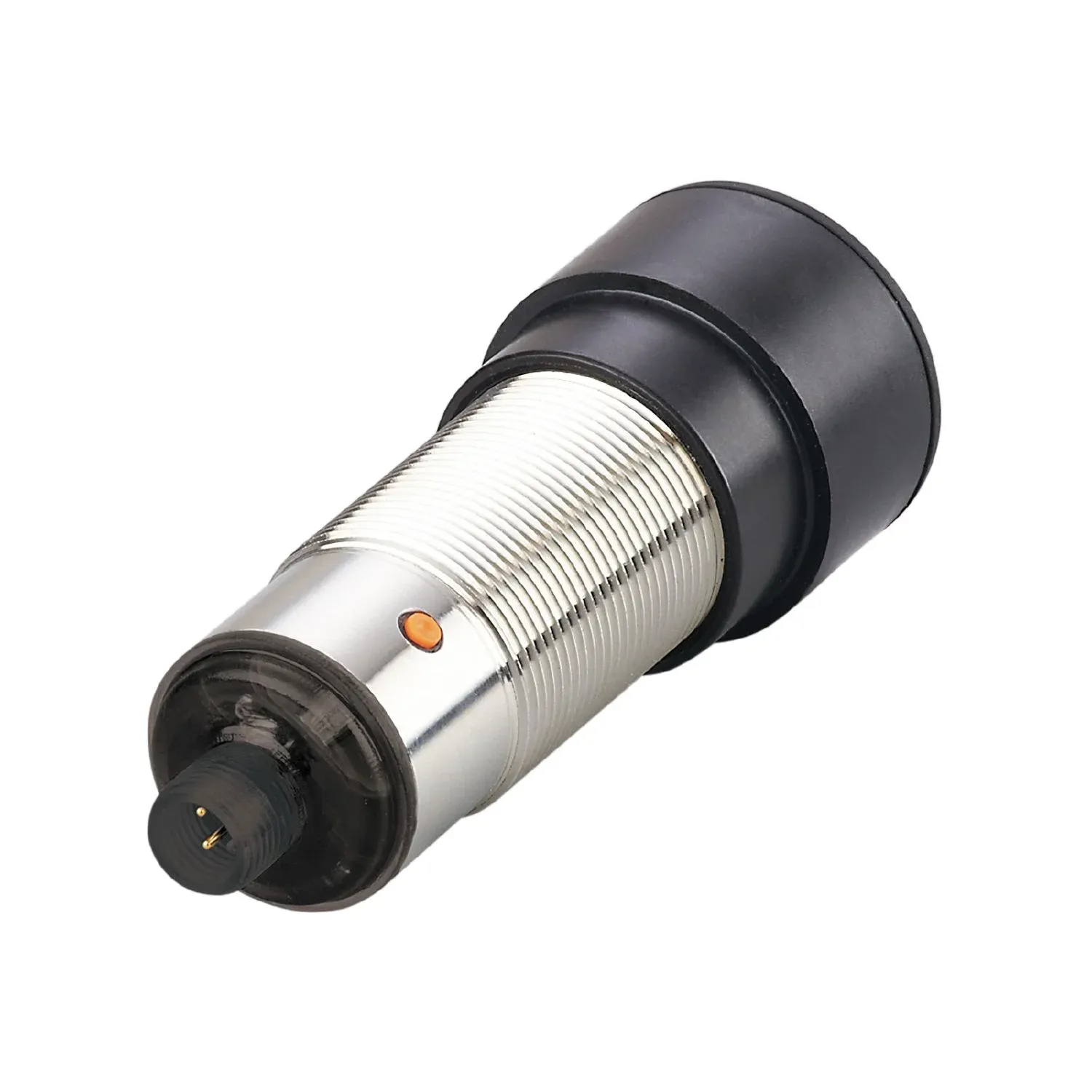

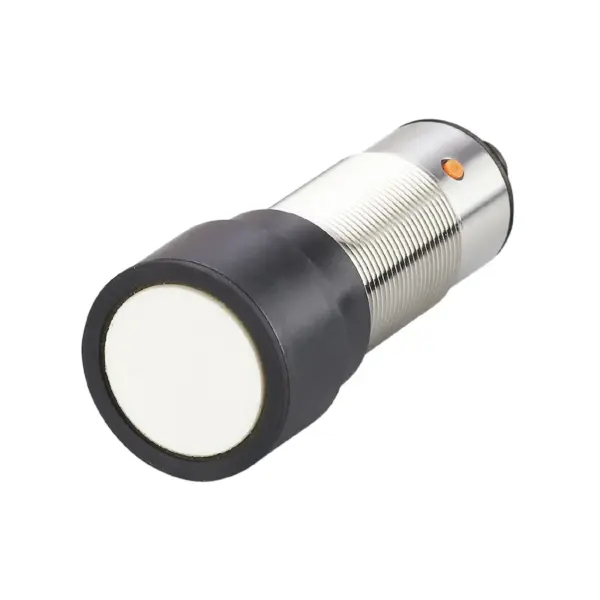

IFM UIT503
UIT503
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very large detection range
Intuitive setting of the detection range via pushbutton or IO-Link
Clearly visible LED for indicating switching status and echo
Output function normally open / normally closed programmable
Non-contact detection independent of colour, transparency or surface characteristics of the object
Width of the sound beam adjustable via IO-Link
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range[mm] [mm] | 350...6000; (Target: 400 x 400 mm) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 103.8 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.3 |
| Converter frequency[kHz] [kHz] | 75 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 350...6000; (Target: 400 x 400 mm) |
|---|---|
| Blind zone[mm] [mm] | 350 |
| Angle of aperture cylindrical[°] [°] | 15; (±2) |
| Max. deviation from the 90° angle sensor/object[°] [°] | ± 4 |
Accuracy / deviations
| Temperature compensation | yes |
|---|---|
| Hysteresis[%] [%] | < 3 |
| Switch point drift[%] [%] | -5...5 |
| Repeatability | 1 % |
| Resolution[mm] [mm] | 3 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
Software / programming
| Parameter setting options | hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Process data variable Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 3.2 |
| IO-Link process data (cyclical) | process value 16 device status 4 binary switching information 2 |
| process value | 16 |
| device status | 4 |
| binary switching information | 2 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter |
| Supported DeviceIDs | default 1096 |
| default | 1096 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Storage temperature[°C] [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | Class A |
| Vibration resistance | EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 106 |
| UL approval | Ta -20...70 °C power supply Class 2 File number UL E174191 |
| Ta | -20...70 °C |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 245.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 103.8 |
| Thread designation | M30 x 1.5 |
| Materials | stainless steel (316L/1.4404); PA; epoxy glass ceramics |
| Tightening torque[Nm] [Nm] | 100 |
Displays / operating elements
| Display | switching status 2 x LED, yellow echo 1 x LED, green |
|---|---|
| switching status | 2 x LED, yellow |
| echo | 1 x LED, green |
| Teach function | yes |
Accessories
| Items supplied | lock nuts: 2 x M30, stainless steel |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
