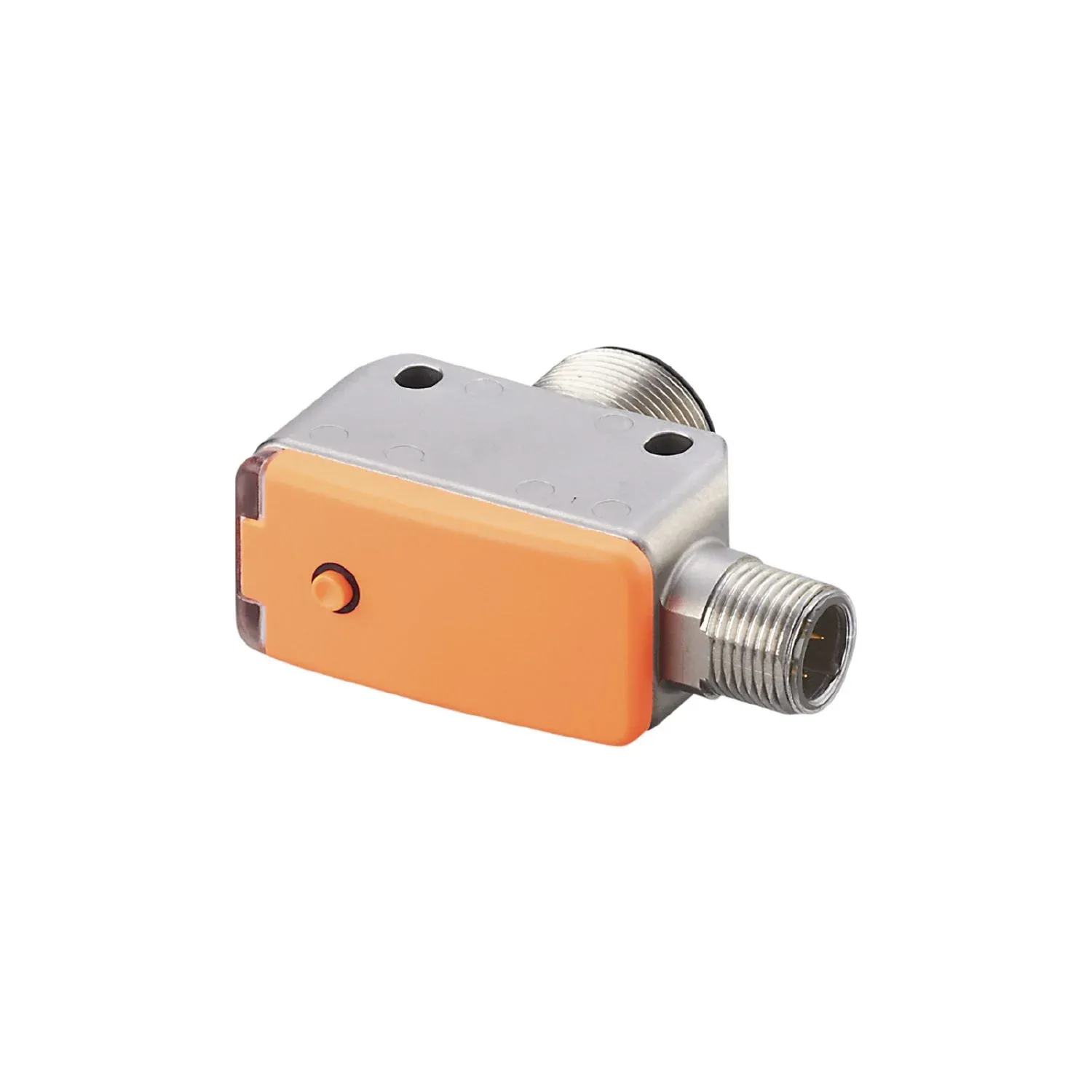

IFM UGT588
UGT588
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust rectangular metal housing with M18 thread on the side
Particularly space-saving design for use where space is restricted
With programmable switching output and scalable analogue output
Non-contact detection independent of colour, transparency or surface characteristics of the object
Intuitive setting of the detection range via pushbutton
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range[mm] [mm] | 60...800; (Target: 100 x 100 mm) |
| Housing | rectangular with M18 thread |
| Dimensions[mm] [mm] | 53 x 20 x 37.7 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.3 |
| Converter frequency[kHz] [kHz] | 230 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal |
| Electrical design | NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 5 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 60...800; (Target: 100 x 100 mm) |
|---|---|
| Blind zone[mm] [mm] | 60 |
| Angle of aperture cylindrical[°] [°] | 15; (±2) |
| Max. deviation from the 90° angle sensor/object[°] [°] | ± 4 |
Accuracy / deviations
| Temperature compensation | yes |
|---|---|
| Hysteresis[%] [%] | < 1 |
| Switch point drift[%] [%] | -5...5 |
| Linearity error of analogue output[%] [%] | ≤ 1 |
| Repeatability | 1 % |
| Resolution[mm] [mm] | 3 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
Response times
| Response time[ms] [ms] | < 450; (analogue output) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Storage temperature[°C] [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | Class A |
| Vibration resistance | EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 191 |
| UL approval | Ta -20...70 °C power supply Class 2 File number UL E174191 |
| Ta | -20...70 °C |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 99 |
|---|---|
| Housing | rectangular with M18 thread |
| Dimensions[mm] [mm] | 53 x 20 x 37.7 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (630/1.4542/17-4 PH); PBT; PA; epoxy glass ceramics |
| Tightening torque[Nm] [Nm] | 50 |
Displays / operating elements
| Display | switching status 1 x LED, yellow echo 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| echo | 1 x LED, green |
| Teach function | yes |
Accessories
| Items supplied | lock nuts: 1 x M18, stainless steel |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
Reviews
Clear filtersThere are no reviews yet.
