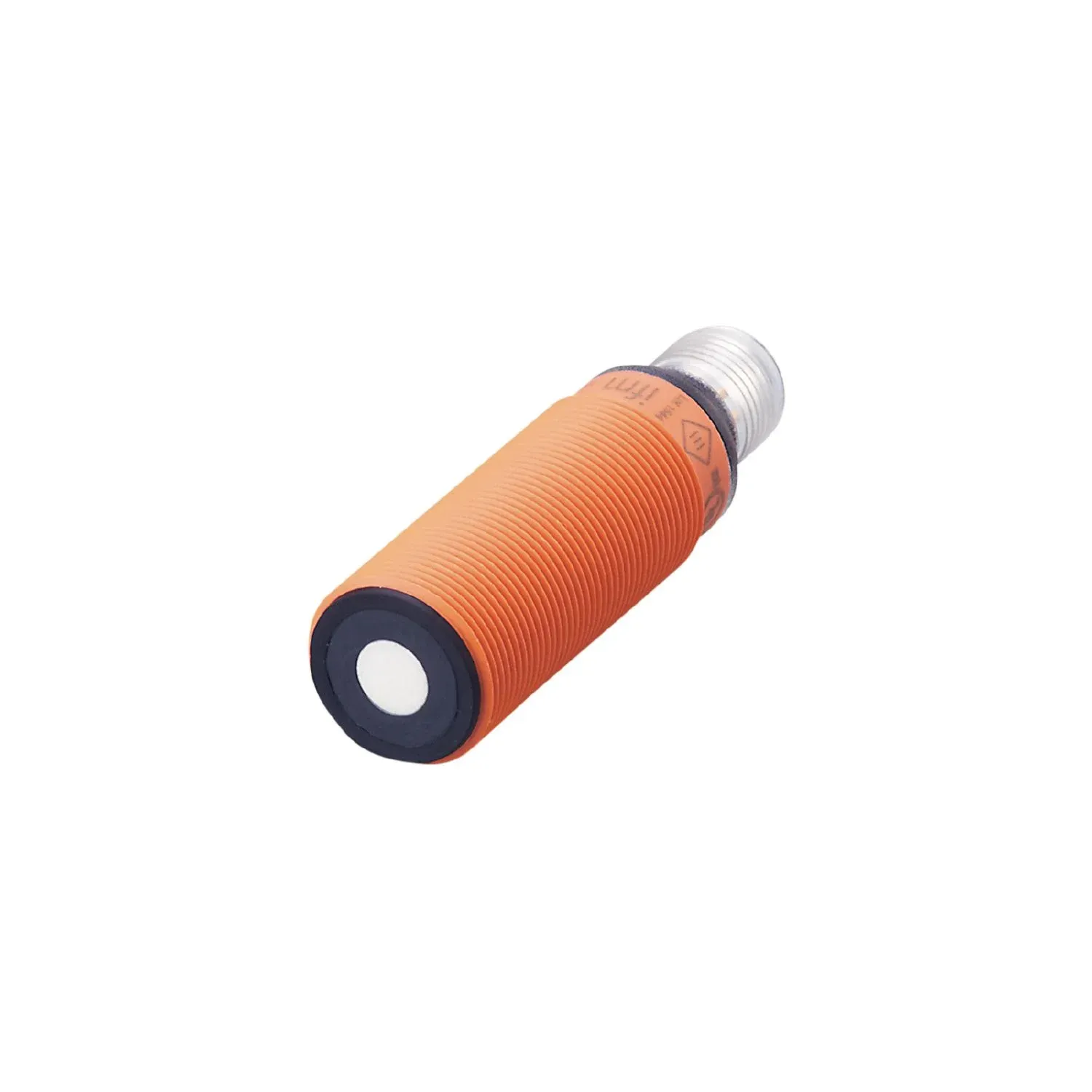

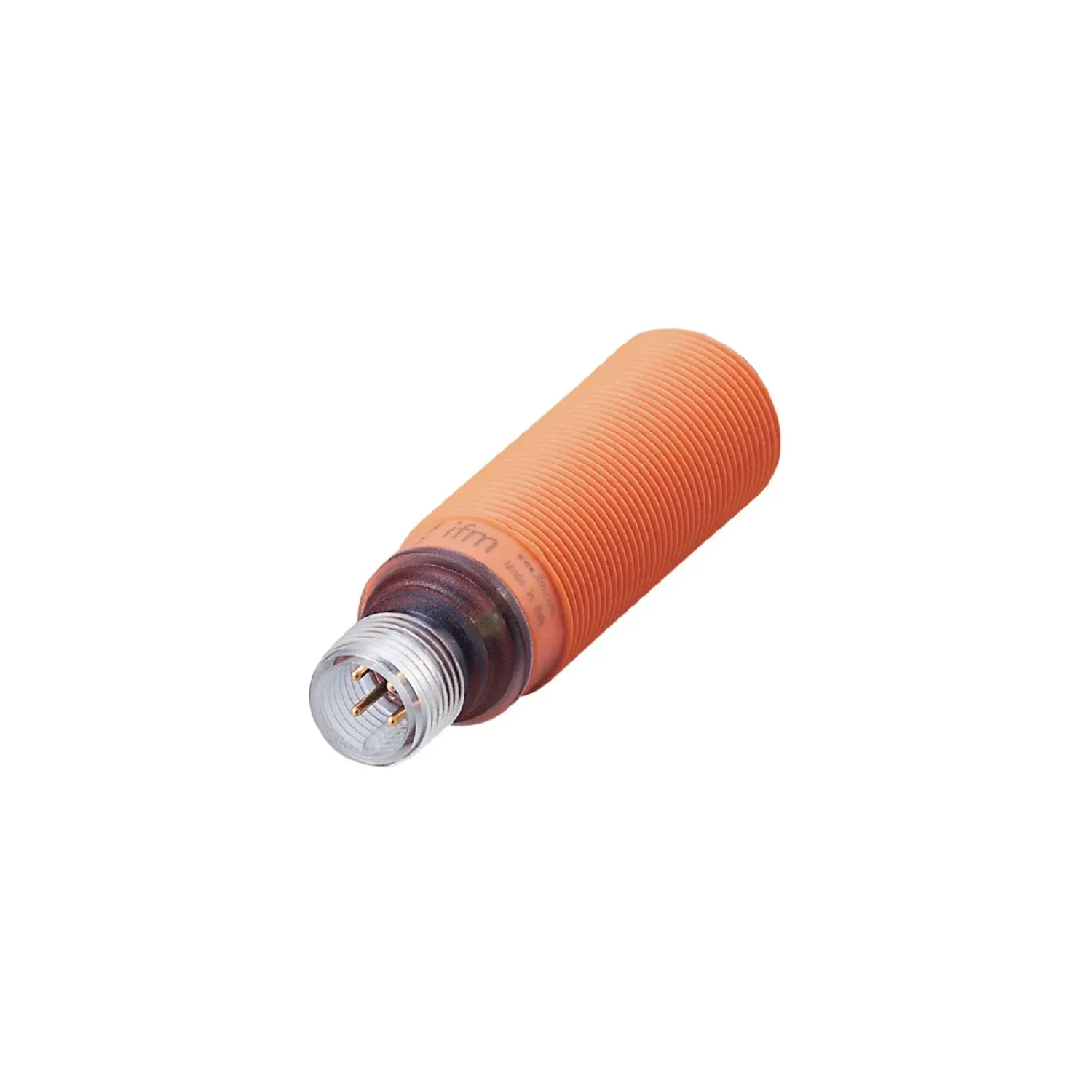

IFM UGT209
UGT209
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly space-saving design for use where space is restricted
Output function normally open / normally closed programmable
Non-contact detection independent of colour, transparency or surface characteristics of the object
Easy adjustment of the device function via programming wire
Clearly visible LED for indicating switching status and echo
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range[mm] [mm] | 40...300; (Target: 200 x 200 mm) |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 60.5 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.3 |
| Converter frequency[kHz] [kHz] | 300 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Inputs
| Synchronisation input | no |
|---|---|
| Multiplex input | no |
Outputs
| Total number of outputs | 1 |
|---|---|
| Electrical design | NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 8 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 40...300; (Target: 200 x 200 mm) |
|---|---|
| Blind zone[mm] [mm] | 40 |
| Angle of aperture cylindrical[°] [°] | 15; (±2) |
| Max. deviation from the 90° angle sensor/object[°] [°] | ± 4 |
Accuracy / deviations
| Temperature compensation | yes |
|---|---|
| Hysteresis[%] [%] | < 1 |
| Switch point drift[%] [%] | -5...5 |
| Repeatability | 1 % |
| Resolution[mm] [mm] | 2 |
| Notes on the accuracy / deviation | The indicated values are reached after a warm-up time of min. 20 minutes |
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Storage temperature[°C] [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | Class A |
| Vibration resistance | EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 202 |
| UL approval | Ta -20...70 °C power supply Class 2 File number UL E174191 |
| Ta | -20...70 °C |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 55.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 60.5 |
| Thread designation | M18 x 1 |
| Materials | PBT; PA; epoxy glass ceramics |
| Tightening torque[Nm] [Nm] | 1 |
Displays / operating elements
| Display | switching status 1 x LED, yellow echo 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| echo | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 x M18, plastics rubber washers: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
