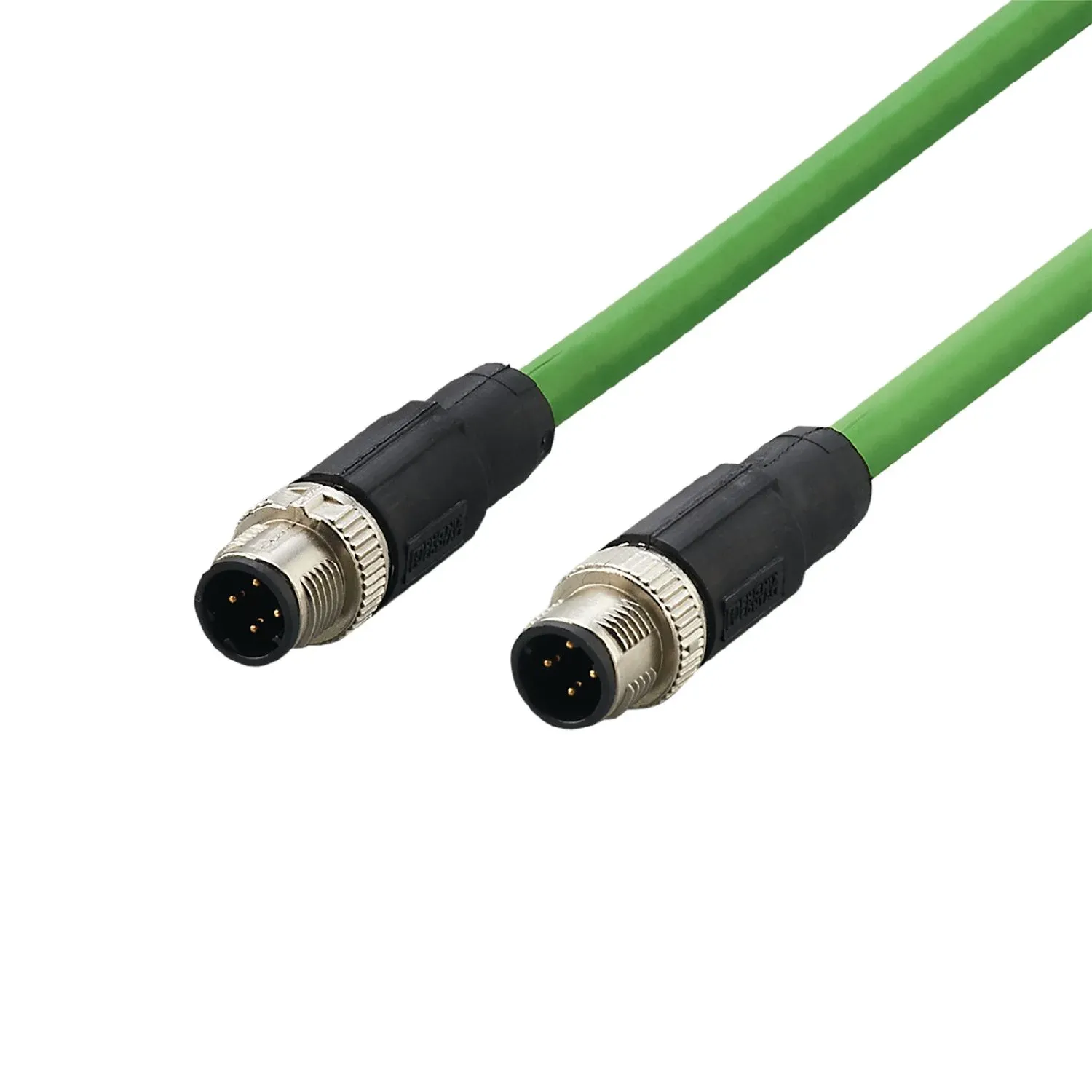

IFM UC0234
UC0234
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For connection to the parameter setting interface of the sensor
For reliable signal transmission
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Special feature | Gold-plated contacts; Screened cable |
|---|---|
| Design | Ethernet cable, D-coded |
Electrical data
| Operating voltage[V] [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 20.412 |
|---|---|
| Dimensions[mm] [mm] | 15 x 15 x 47.3 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected |
|---|
Electrical connection
| Cable | 1 m, PVC, green, shielded; 4 x 0.34 mm² |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: D; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: screen connected |
|---|
