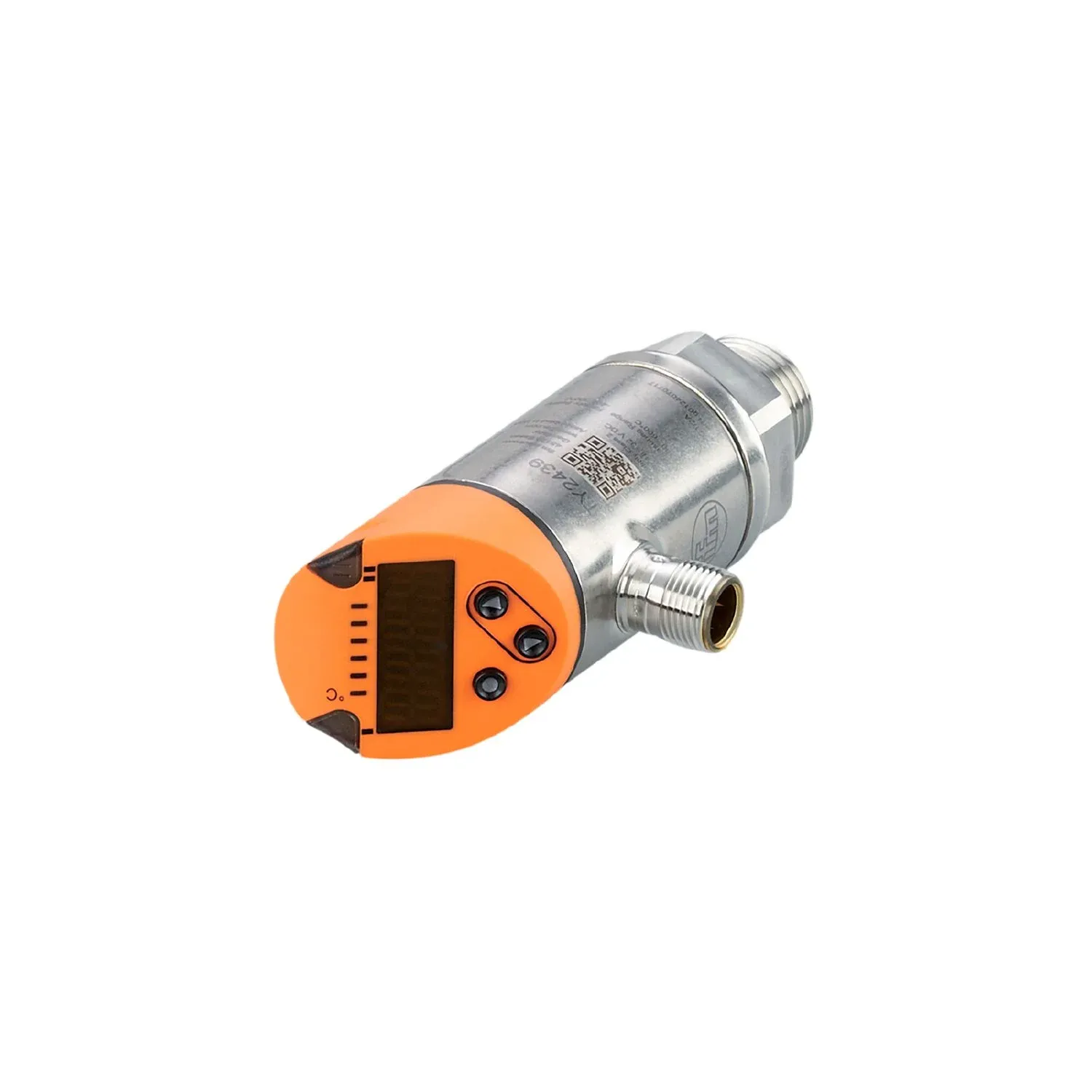

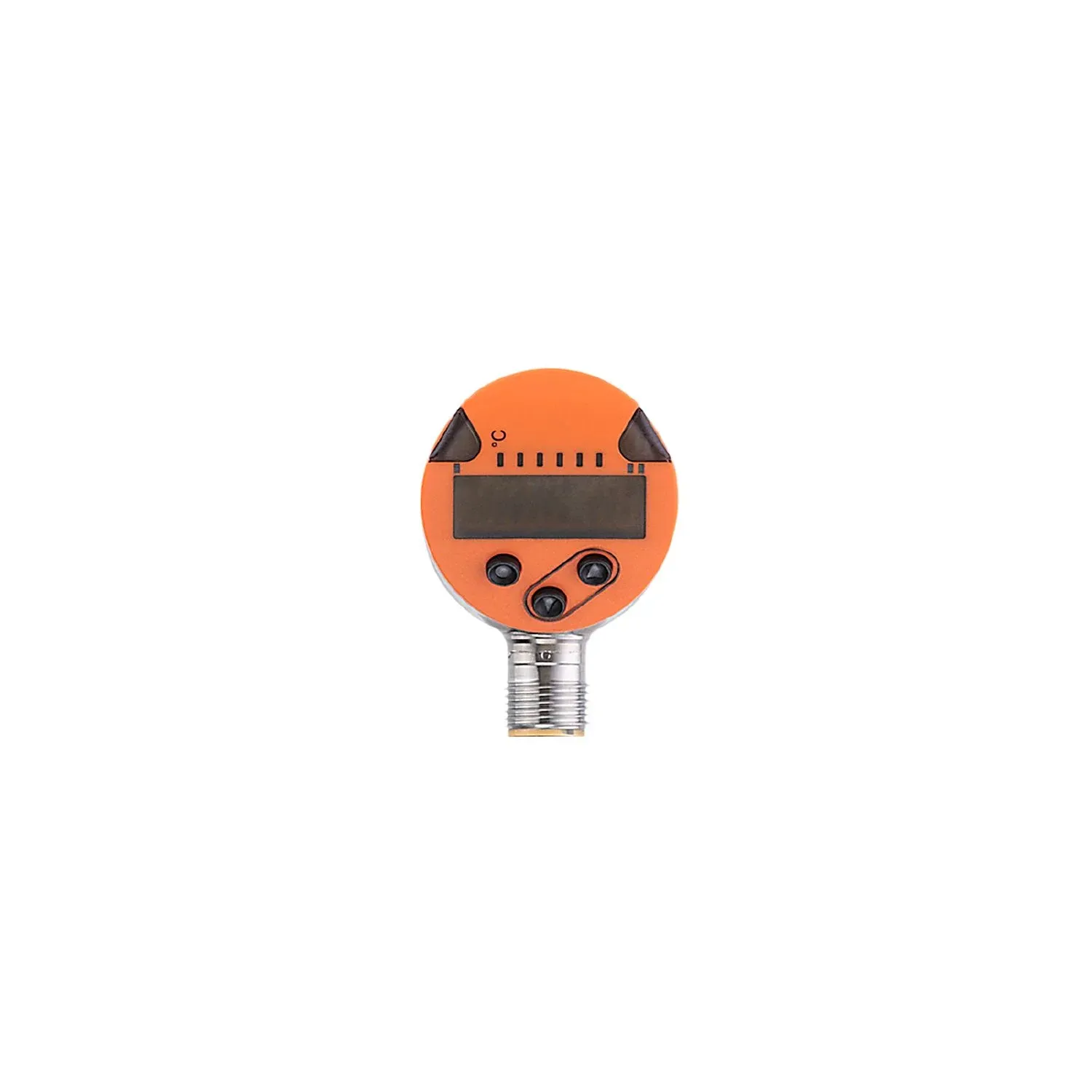

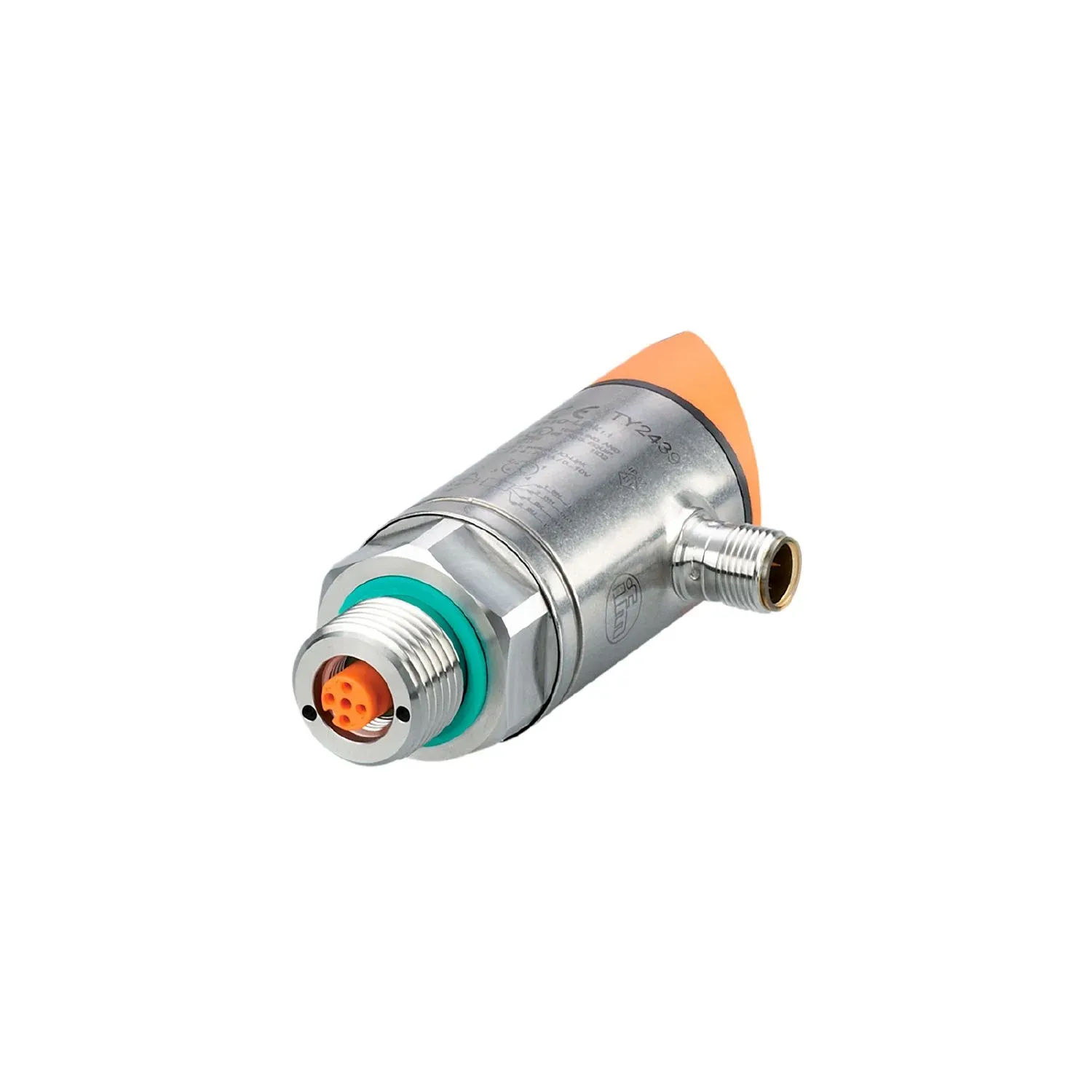

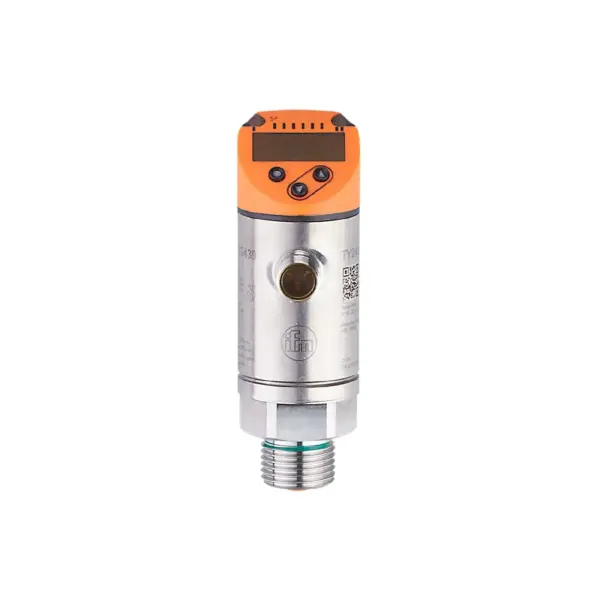

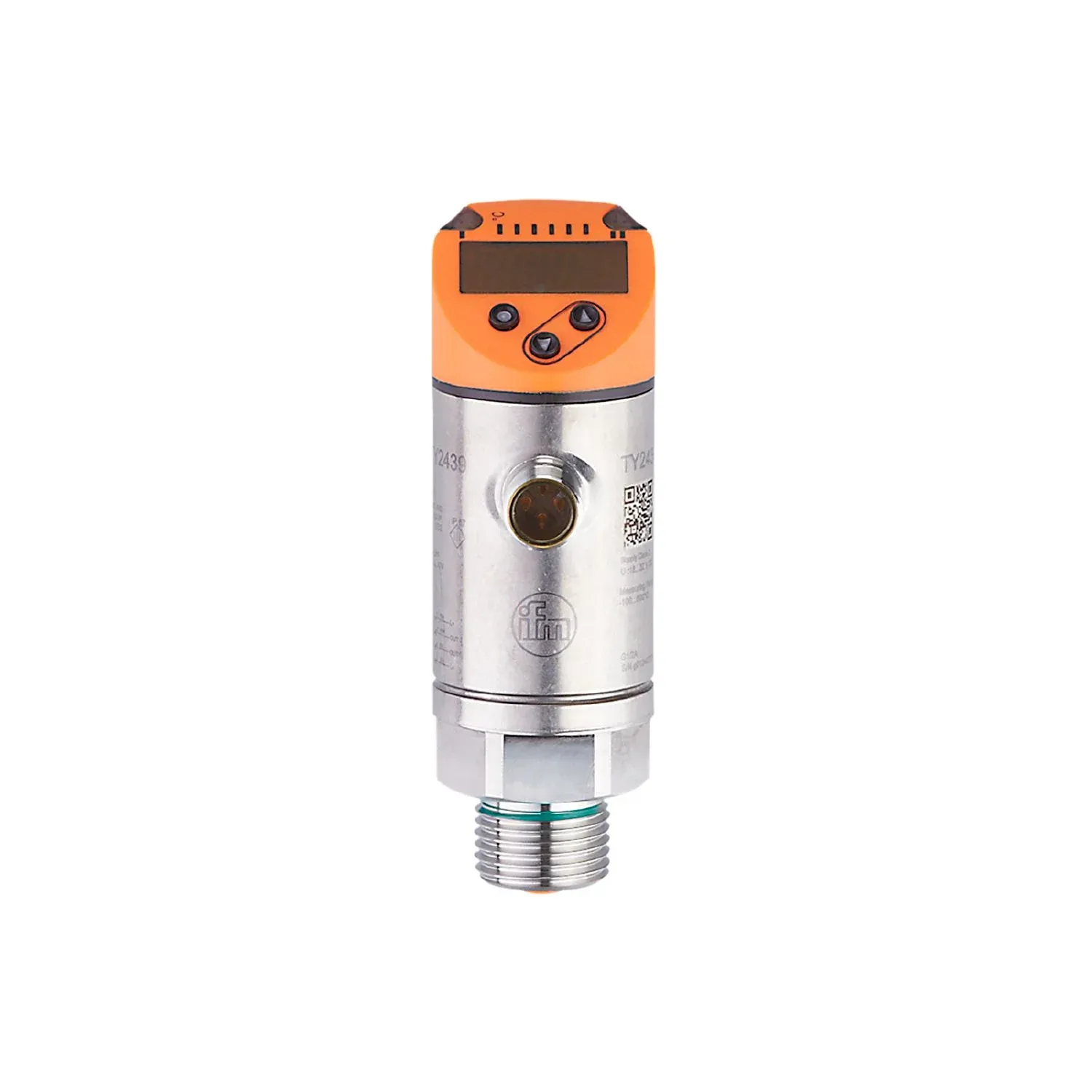

IFM TY2439
TY2439
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range[°C] [°C] | -100...600 |
| Communication interface | IO-Link |
| Process connection | threaded connection G 1/2 external thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for Pt100 and Pt1000 measuring elements |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range[°C] [°C] | -100...600 |
|---|---|
| Factory setting | -40...300 °C |
| Set point SP[°C] [°C] | -99.8...600 |
| Reset point rP[°C] [°C] | -100...599.8 |
| Analogue start point[°C] [°C] | -100...595 |
| Analogue end point[°C] [°C] | -95...600 |
| In steps of[°C] [°C] | 0.1 |
| Resolution of switching output[K] [K] | 0.1 |
| Resolution of analogue output[K] [K] | current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display[K] [K] | 0.1 |
Accuracy / deviations
| Switch point accuracy[K] [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Precision analogue output[K] [K] | ± 0,3 + (± 0,1 % MS) |
| Display accuracy[K] [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | 0,1; (in case of deviation from the reference condition 25 °C) |
Response times
| Response time[ms] [ms] | 390 |
|---|---|
| Max. response time analogue output[ms] [ms] | 390 |
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; current/voltage output |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 902 |
| default | 902 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-3 DIN EN 61000-6-2 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 233 |
| UL approval | UL approval no. K011 |
| UL approval no. | K011 |
Mechanical data
| Weight[g] [g] | 191 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 34 / L = 104 |
| Materials | stainless steel (304/1.4301); EPDM/X; PC; PBT; FPM |
| Process connection | threaded connection G 1/2 external thread |
Displays / operating elements
| Display | Display unit 1 x LED, green switching status LED, yellow measured values alphanumeric display, red/green 4-digit |
|---|---|
| Display unit | 1 x LED, green |
| switching status | LED, yellow |
| measured values | alphanumeric display, red/green 4-digit |
Remarks
| Remarks | MS = set measuring span |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
