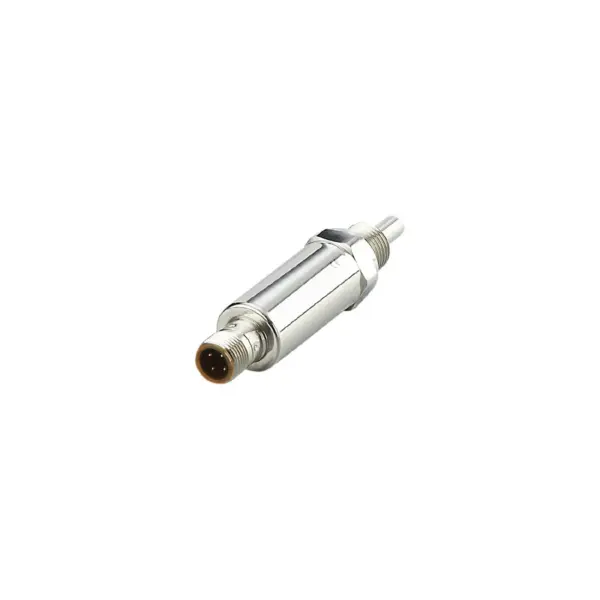

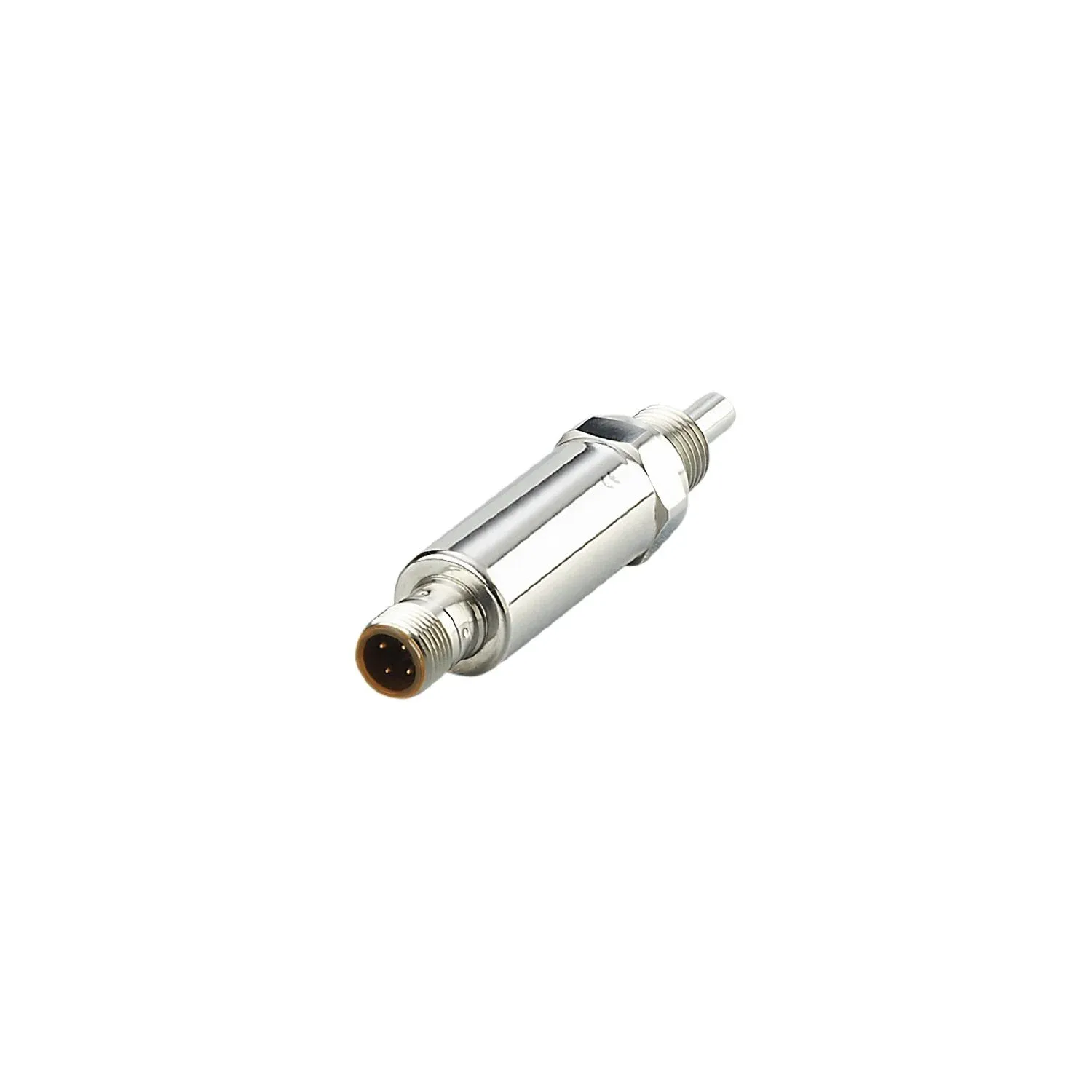

IFM TV7105
TV7105
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High precision across the entire temperature measurement range
Particularly good response dynamics and very short power-on delay time
Robust stainless steel housing with very high pressure rating
Two programmable switching outputs
Continuous transmission of process values via IO-Link
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|---|
| Measuring range[°C] [°C] | -50...150 |
| Communication interface | IO-Link |
| Process connection | threaded connection G 1/4 external thread |
| Installation length EL[mm] [mm] | 25 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Pressure rating | 400 bar 40 MPa |
| 400 bar | 40 MPa |
| Note on pressure rating | sensor When mounted in adapters the specifications of the adapter data sheet apply. |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
Measuring/setting range
| Probe length L[mm] [mm] | 12 |
|---|---|
| Measuring range[°C] [°C] | -50...150 |
| Set point SP[°C] [°C] | -49.8...150 |
| Reset point rP[°C] [°C] | -50...149.8 |
| In steps of[°C] [°C] | 0.1 |
| Resolution of switching output[K] [K] | 0.1 |
Accuracy / deviations
| Switch point accuracy[K] [K] | ± 0,3 |
|---|---|
| Temperature drift per 10 K[K] [K] | 0.1 **) |
Response times
| Dynamic response T05 / T09[s] [s] | 1 / 3; (to DIN EN 60751) |
|---|
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| Min. process cycle time[ms] [ms] | 3.2 |
| Supported DeviceIDs | default 733 |
| default | 733 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Note on ambient temperature | at medium temperature: < 125 °C -40...50 °C at medium temperature: < 150 °C |
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 542.6 |
| UL approval | UL approval no. K019 |
| UL approval no. | K019 |
Mechanical data
| Weight[g] [g] | 71.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 18.7 / L = 88.9 |
| Materials | stainless steel (316L/1.4404); FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); O-ring: FKM |
| Tightening torque[Nm] [Nm] | 35 |
| Process connection | threaded connection G 1/4 external thread |
| Probe diameter[mm] [mm] | 6 |
| Installation length EL[mm] [mm] | 25 |
Remarks
| Remarks | The values for accuracy apply to flowing water. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
