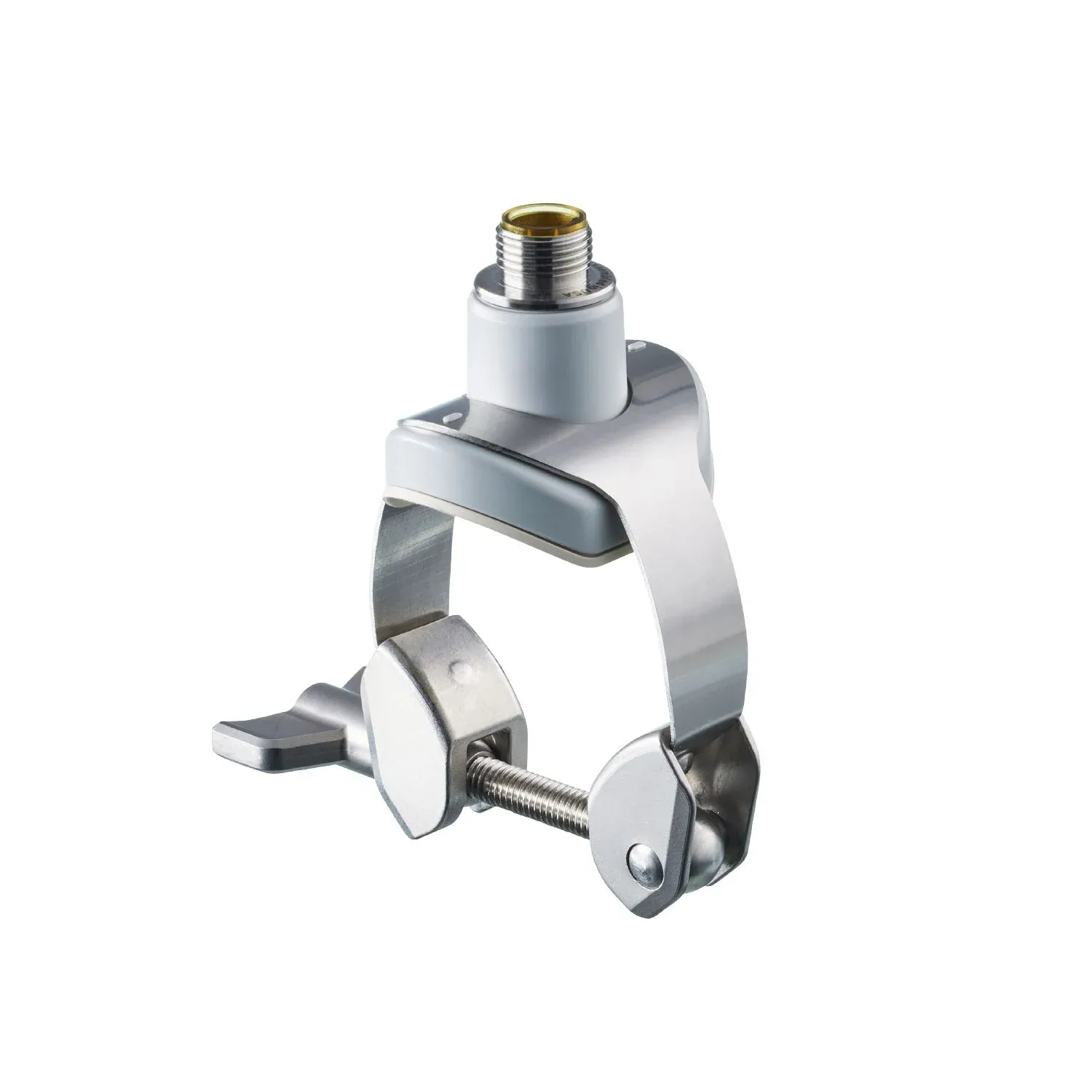

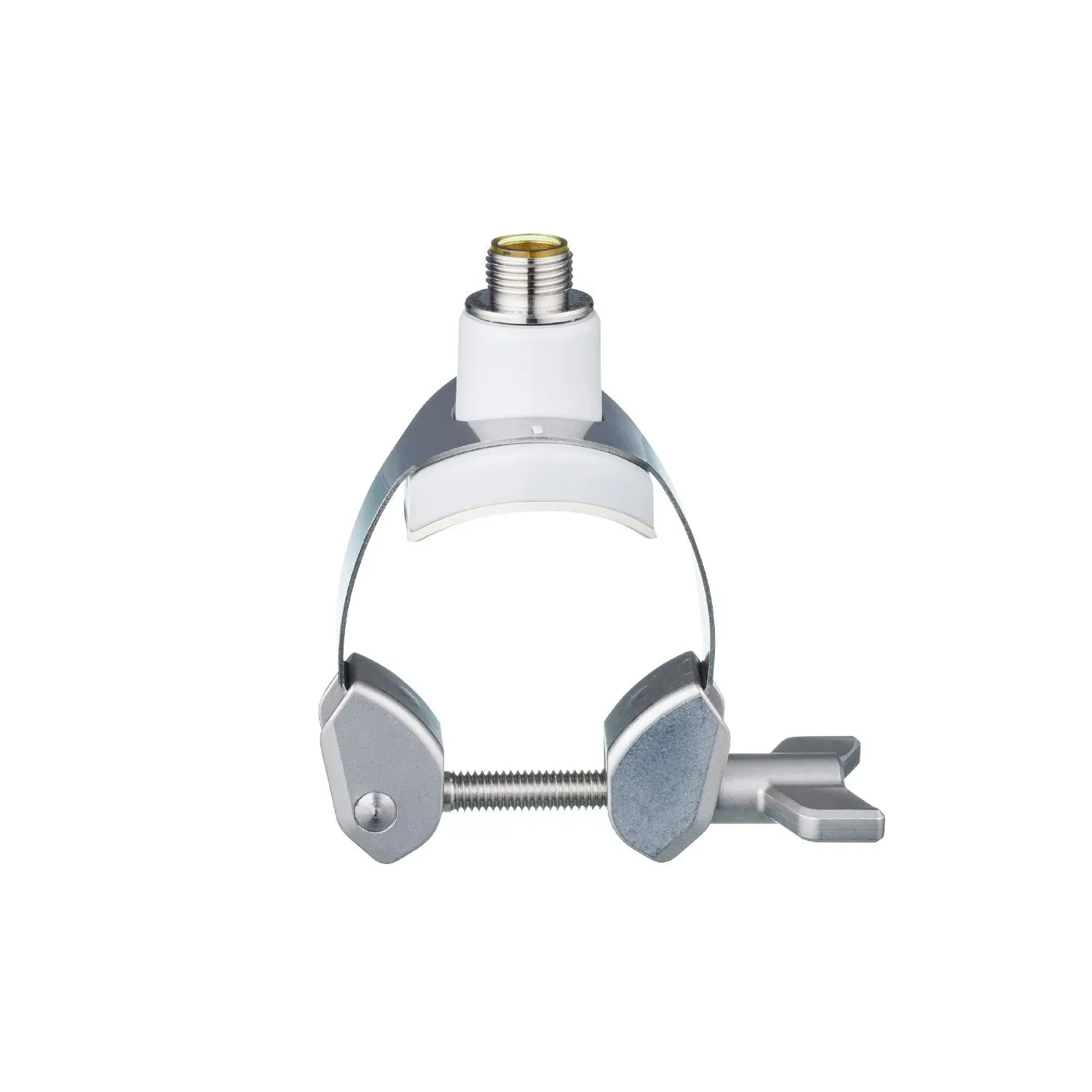

IFM TSM601
TSM601
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Clamp-on solution reduces installation costs and effort
Hygienic design with appropriate protection class for cleaning processes
Fast response time and high measurement accuracy for a clear process overview
Ideal process monitoring ensures transparency
Specification
Product characteristics
| Measuring range | -25...160 °C -13...320 °F |
|---|---|
| -25...160 °C | -13...320 °F |
| Process connection | bolt-on sensor DN40 ( Ø 38...45 mm) |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Installation | surface mount RTD for solid bodies; clamp-on solution |
Electrical data
| Protection class | III |
|---|---|
| Overvoltage category | II |
Measuring/setting range
| Measuring range | -25...160 °C -13...320 °F |
|---|---|
| -25...160 °C | -13...320 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,15 K + 0,002 x|T|); (ambient temperature influence on the accuracy: 0,02 x (Ta - T)) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 7,5 / 25; (reference values for moving water : (> 0,4 m/s)) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 69K |
| Pollution degree | 3 |
Tests / approvals
| MTTF[years] [years] | 22831 |
|---|
Mechanical data
| Weight[g] [g] | 140.9 |
|---|---|
| Design | Surface temperature probe |
| Dimensions[mm] [mm] | 87 x 84 x 45 |
| Materials | Mounting clamp: stainless steel (316L/1.4404); housing: PPSU; Gasket: FKM |
| Process connection | bolt-on sensor DN40 ( Ø 38...45 mm) |
Remarks
| Remarks | Ta = Ambient temperature T = Process temperature |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
