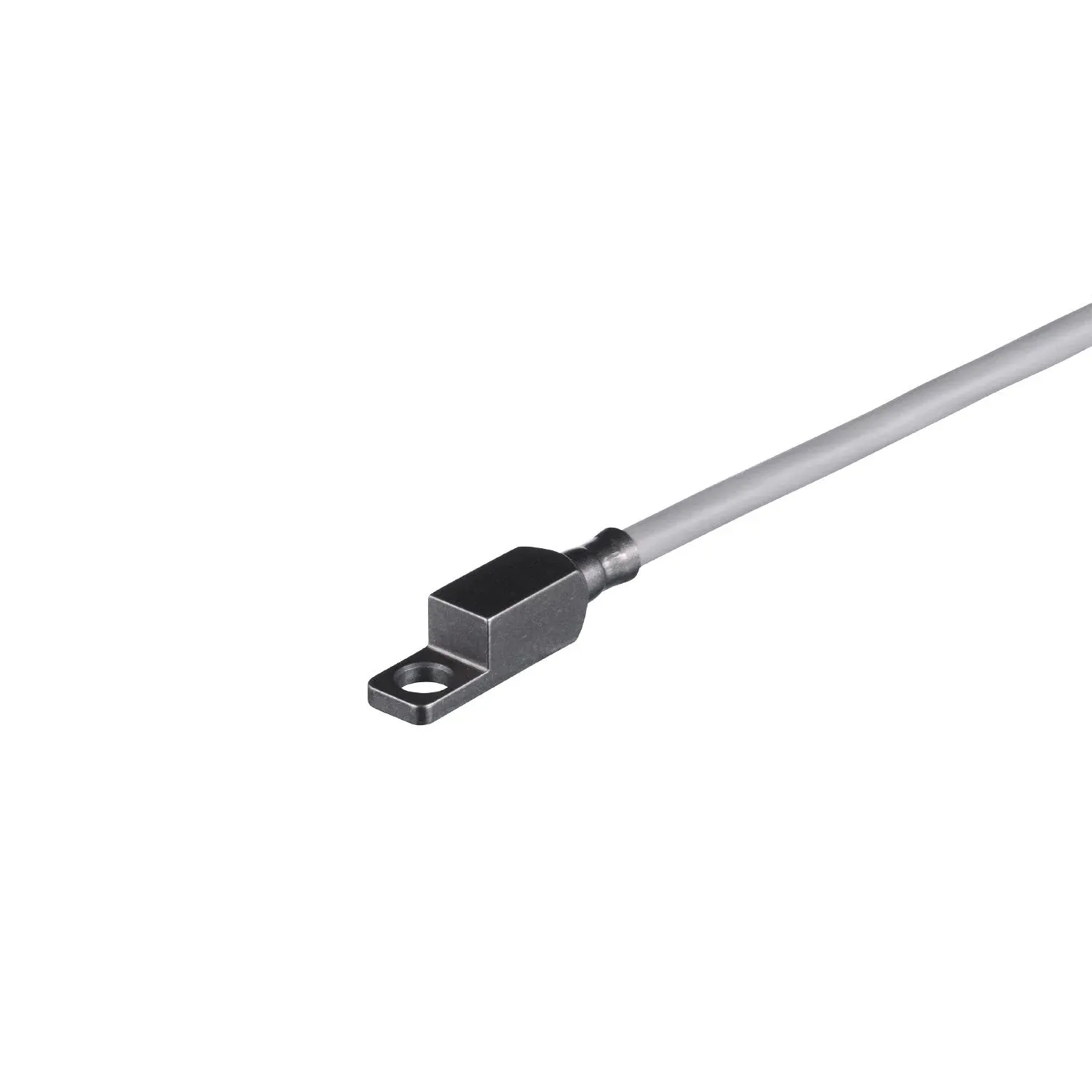

IFM TS325A
TS325A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise temperature measurement in containers, tanks and pipes
For applications in hazardous areas
Easy process adaptation via clamp fitting or protective tube
High precision across the entire temperature measurement range
Specification
Product characteristics
| Measuring range | -20...80 °C -4...176 °F |
|---|---|
| -20...80 °C | -4...176 °F |
| Process connection | clamp adapter Ø 5 mm |
Application
| Special feature | Screened cable |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class B; operating current max. 10 mA) |
| Media | liquids and gases |
| Minimum installation depth[mm] [mm] | 15 |
Electrical data
| Insulation rating[V] [V] | 2500; (insulation between sensor housing and internal structure of the sensor) |
|---|---|
| Protection class | III |
Measuring/setting range
| Measuring range | -20...80 °C -4...176 °F |
|---|---|
| -20...80 °C | -4...176 °F |
| Note on measuring range | measuring range for non-ATEX applications: -20...180 °C / -4...356 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,30 K + 0,005 x|t|) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 4 / 10; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T100°C Dc X |
|---|---|
| MTTF[years] [years] | 19025.9 |
Mechanical data
| Weight[g] [g] | 88.6 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 5 / L = 40 |
| Materials | stainless steel (316L/1.4404) |
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Process connection | clamp adapter Ø 5 mm |
| Probe diameter[mm] [mm] | 5 |
Remarks
| Remarks | The values for accuracy apply to flowing water. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 3 m, silicone, shielded |
|---|
