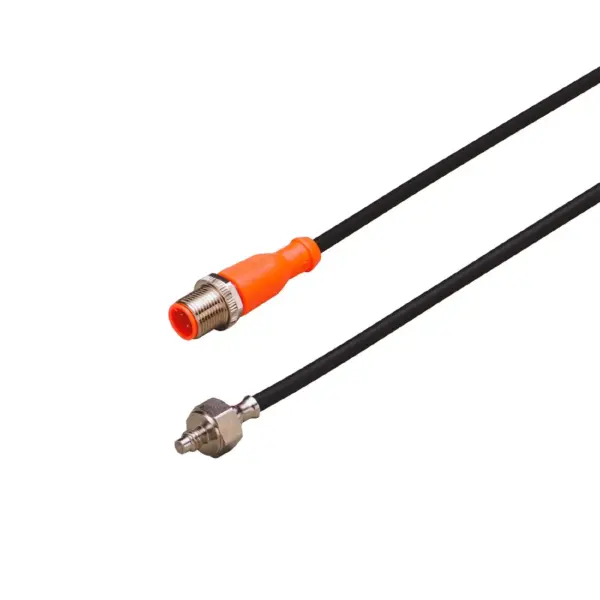

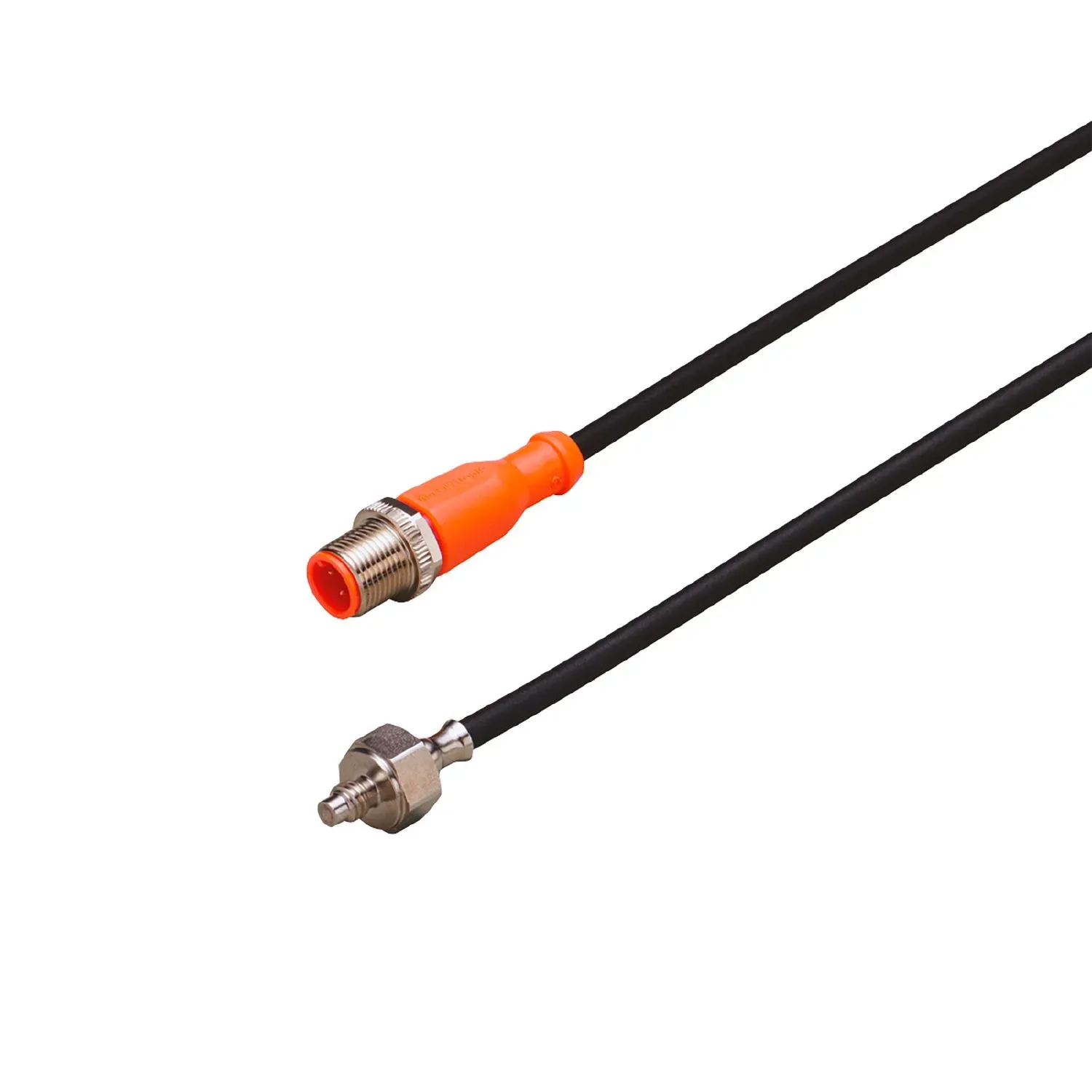

IFM TS2989
TS2989
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise temperature measurement on machine surfaces
For the connection to an evaluation unit
Compact housing for installation where space is restricted
High precision across the entire temperature measurement range
Simple and 100% sealed connection via M12 connector
Specification
Product characteristics
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
| Process connection | threaded connection M6 external thread |
Application
| Special feature | Screened cable |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Installation | surface mount RTD for solid bodies |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 3 / 9; (to DIN EN 60751) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF[years] [years] | 9927 |
|---|
Mechanical data
| Weight[g] [g] | 148 |
|---|---|
| Housing | cylindrical |
| Design | screw-in sensor |
| Dimensions[mm] [mm] | Ø 13 / L = 26 |
| Materials | stainless steel (316L/1.4404) |
| Process connection | threaded connection M6 external thread |
| Probe diameter[mm] [mm] | 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, shielded |
|---|---|
| Connector | 1 x M12; coding: A; Shielded connection cable: screen connected |
