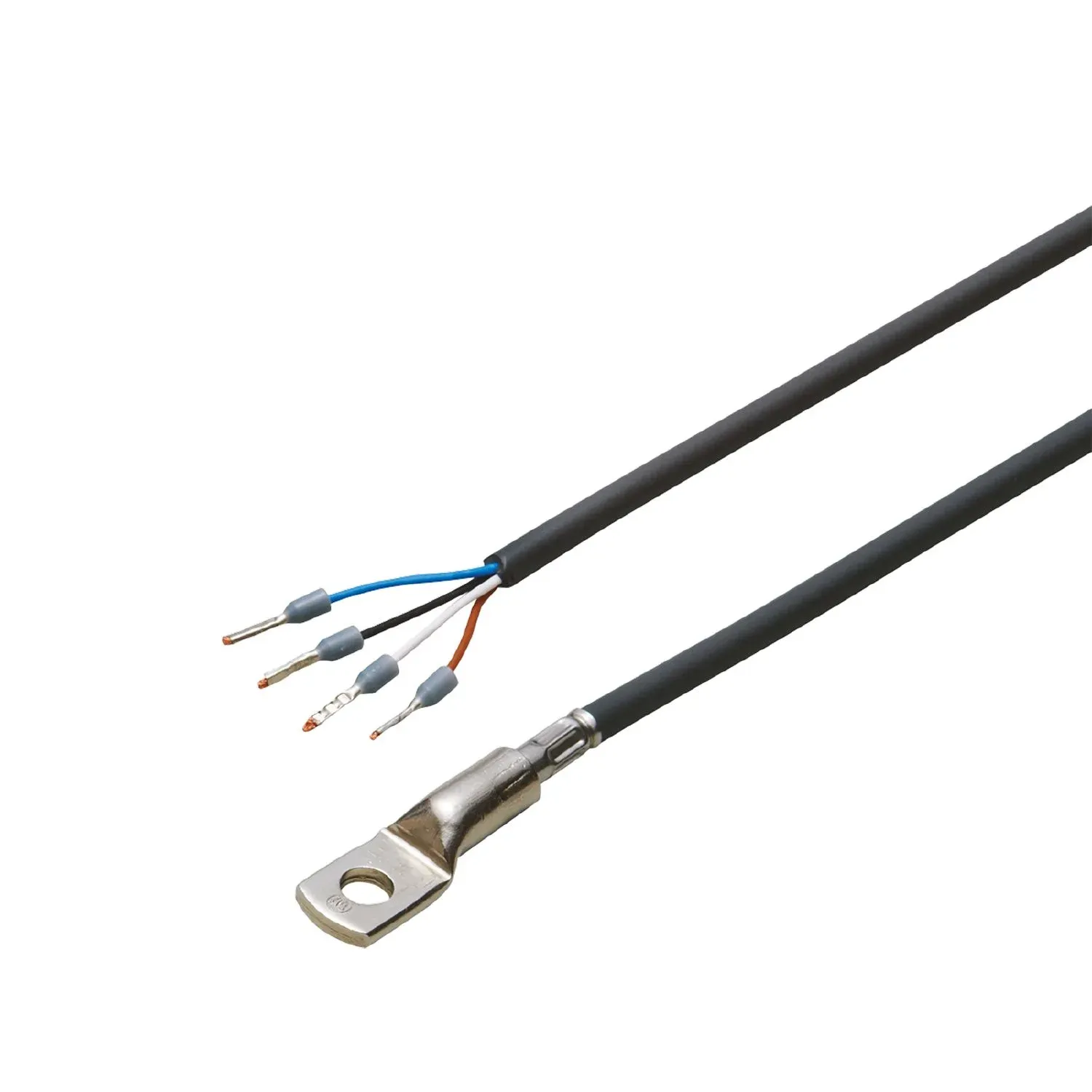

IFM TS2239
TS2239
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise temperature measurement on machine surfaces
For the connection to an evaluation unit
Compact housing for installation where space is restricted
High precision across the entire temperature measurement range
Gold-plated contacts for reliable electrical connections
Specification
Product characteristics
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
| Process connection | 12,5 x 8,7 x 49,5 mm |
Application
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
|---|---|
| Installation | surface mount RTD for solid bodies |
Electrical data
| Insulation rating[V] [V] | 500 |
|---|---|
| Protection class | III |
Measuring/setting range
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 12 / 39; (values for a flat aluminium surface (anodised) using a conductive heat paste; reference values for moving water : 10 / 24 (< 0,1 m/s)) |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF[years] [years] | 12683.9 |
|---|
Mechanical data
| Weight[g] [g] | 101.4 |
|---|---|
| Housing | rectangular |
| Design | bolt-on sensor |
| Dimensions[mm] [mm] | 12.5 x 8.7 x 49.5 |
| Materials | Sleeve: stainless steel (316Ti/1.4571); crimps: copper nickel-plated |
| Process connection | 12,5 x 8,7 x 49,5 mm |
Remarks
| Remarks | applications according to UL S"supply class 2" |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PUR, Ø 4.9 mm; with wire end ferrules; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
