Description

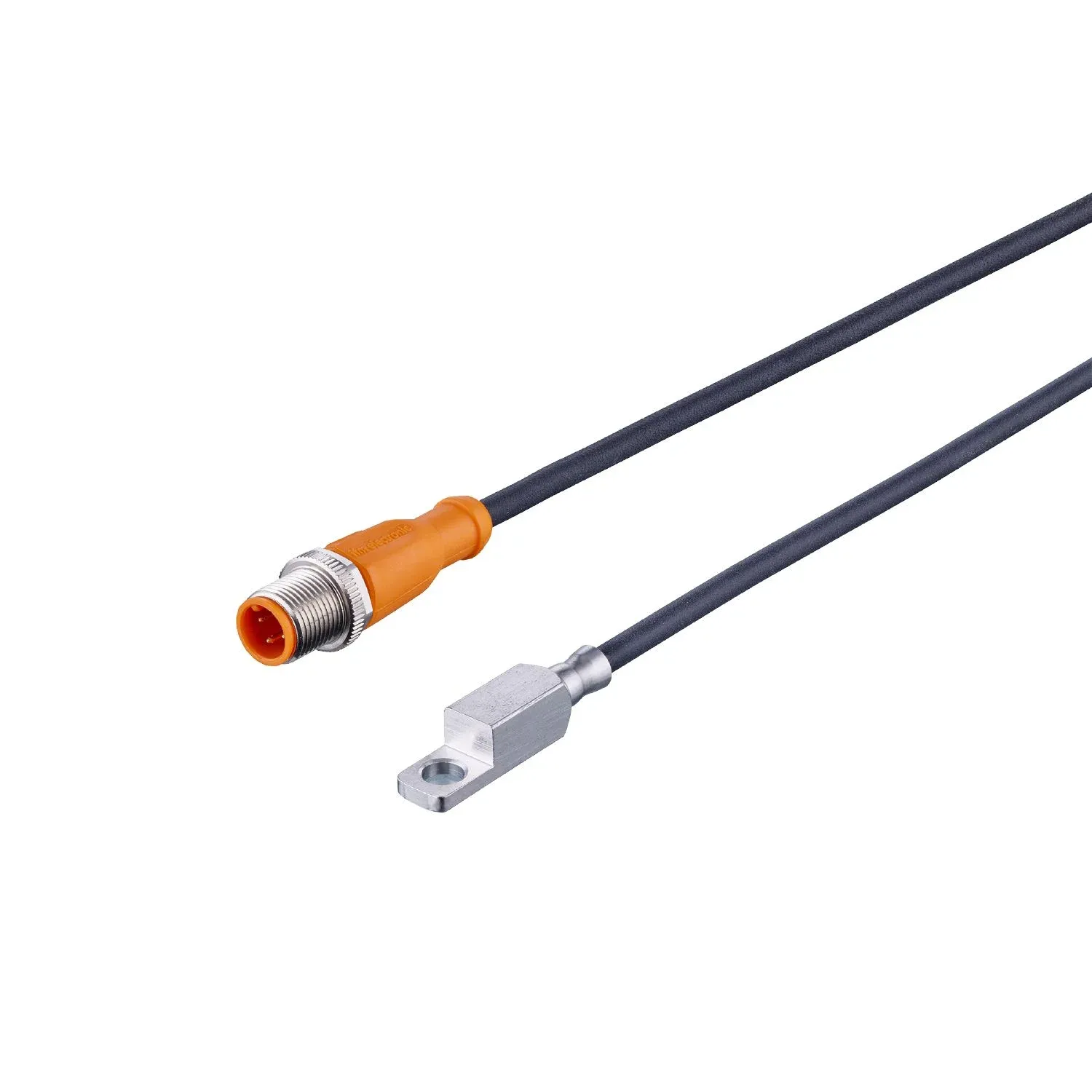

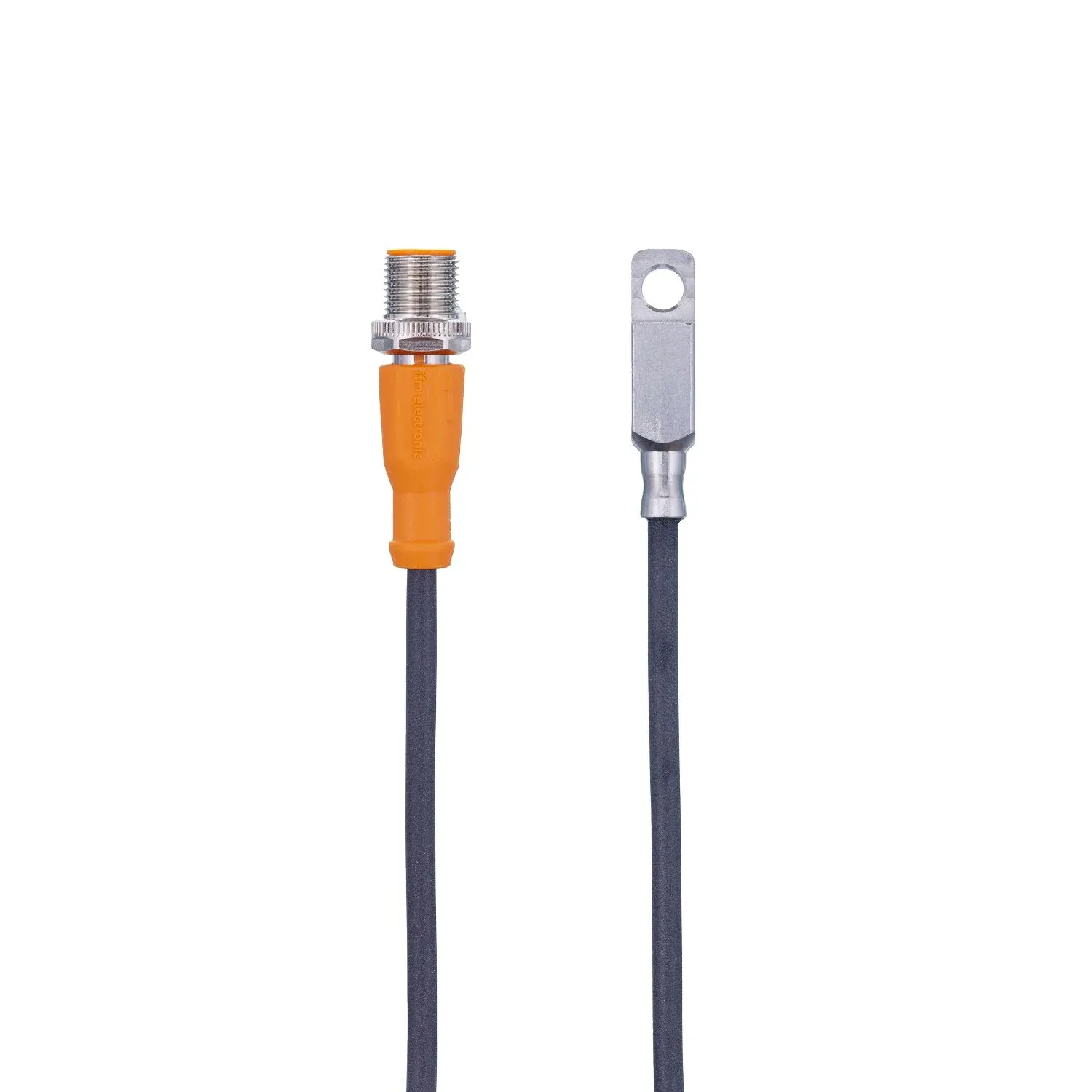

Precise temperature measurement on machine surfaces
For the connection to an evaluation unit
Compact housing for installation where space is restricted
High precision across the entire temperature measurement range
Gold-plated contacts for reliable electrical connections
Specification
Product characteristics
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Installation | surface mount RTD for solid bodies |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Measuring range | -40...90 °C -40...194 °F |
|---|---|
| -40...90 °C | -40...194 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 18 / 44 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| MTTF[years] [years] | 11415.5 |
|---|
Mechanical data
| Weight[g] [g] | 67.8 |
|---|---|
| Housing | rectangular |
| Design | bolt-on sensor |
| Dimensions[mm] [mm] | 10 x 10 x 42 |
| Materials | stainless steel (316L/1.4404) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 1 m, PUR, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|---|
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
