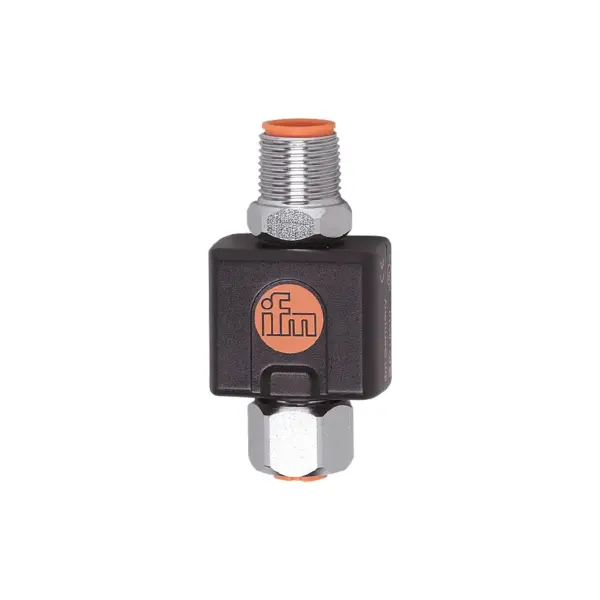

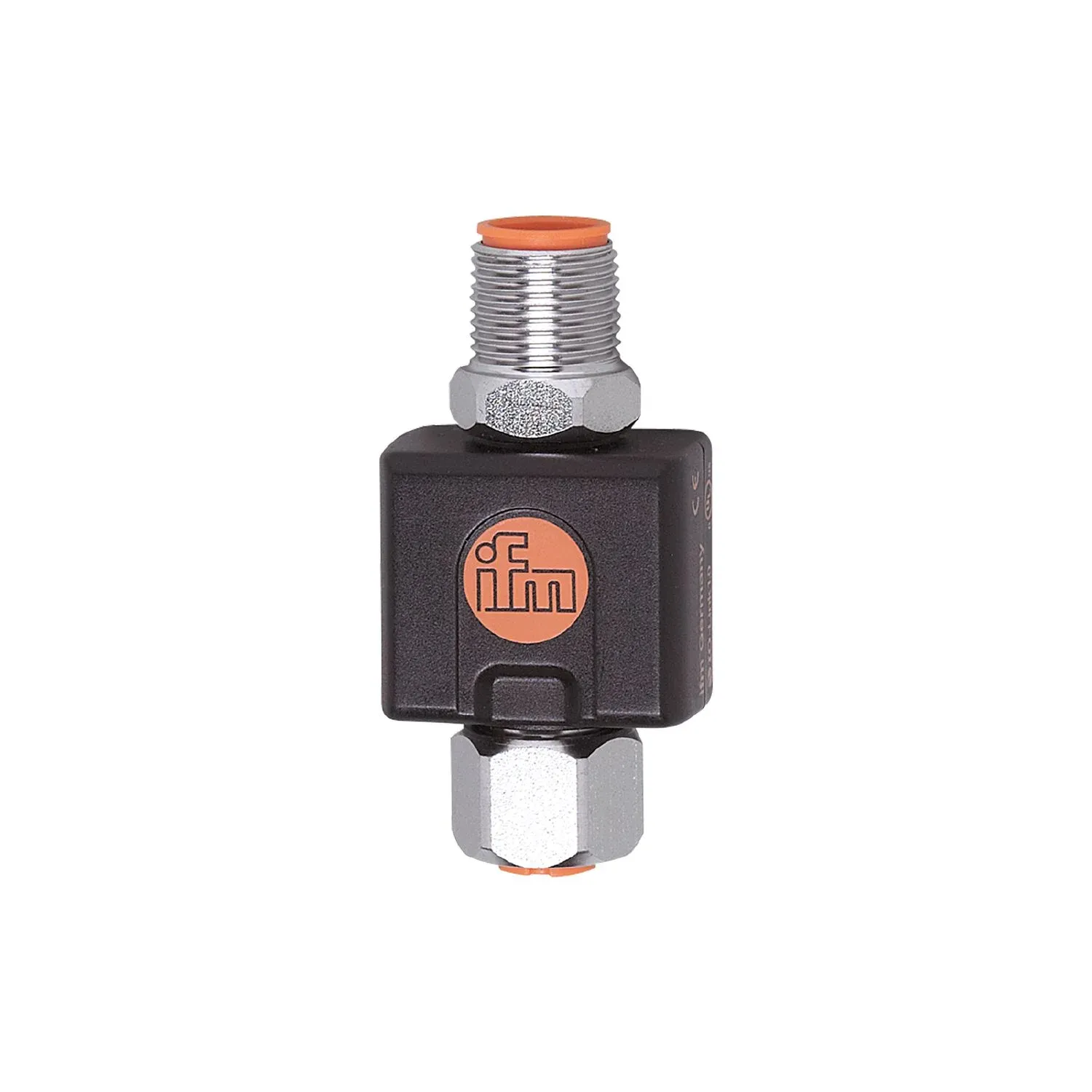

IFM TP3237
TP3237
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the signal evaluation of temperature sensors and resistance thermometers
Reduced mounting complexity and error sources compared to head transmitters
Automatic recognition of the connected sensor type
Full potting and robust connection technology for high vibration resistance
Precise analogue output and user-friendly communication via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | -50...300 °C -58...572 °F |
| -50...300 °C | -58...572 °F |
| Communication interface | IO-Link |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for Pt100 and Pt1000 measuring elements |
Electrical data
| Operating voltage[V] [V] | 20...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal; IO-Link; (configurable) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | -50...300 °C -58...572 °F |
|---|---|
| -50...300 °C | -58...572 °F |
| Factory setting | 0...100 °C |
Accuracy / deviations
| Precision analogue output[K] [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | 0,1 |
Response times
| Max. measuring/display cycle[ms] [ms] | 100 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.0 |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 139 |
| default | 139 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61326-1 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 506 |
Mechanical data
| Weight[g] [g] | 41 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 52 x 25 x 18 |
| Materials | PA; PET |
| Sealing material | FKM |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus MS = set measuring span |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Moulded body: TPU; Locking: stainless steel (316L/1.4404); Sealing: FKM; Contacts: gold-plated |
|---|
