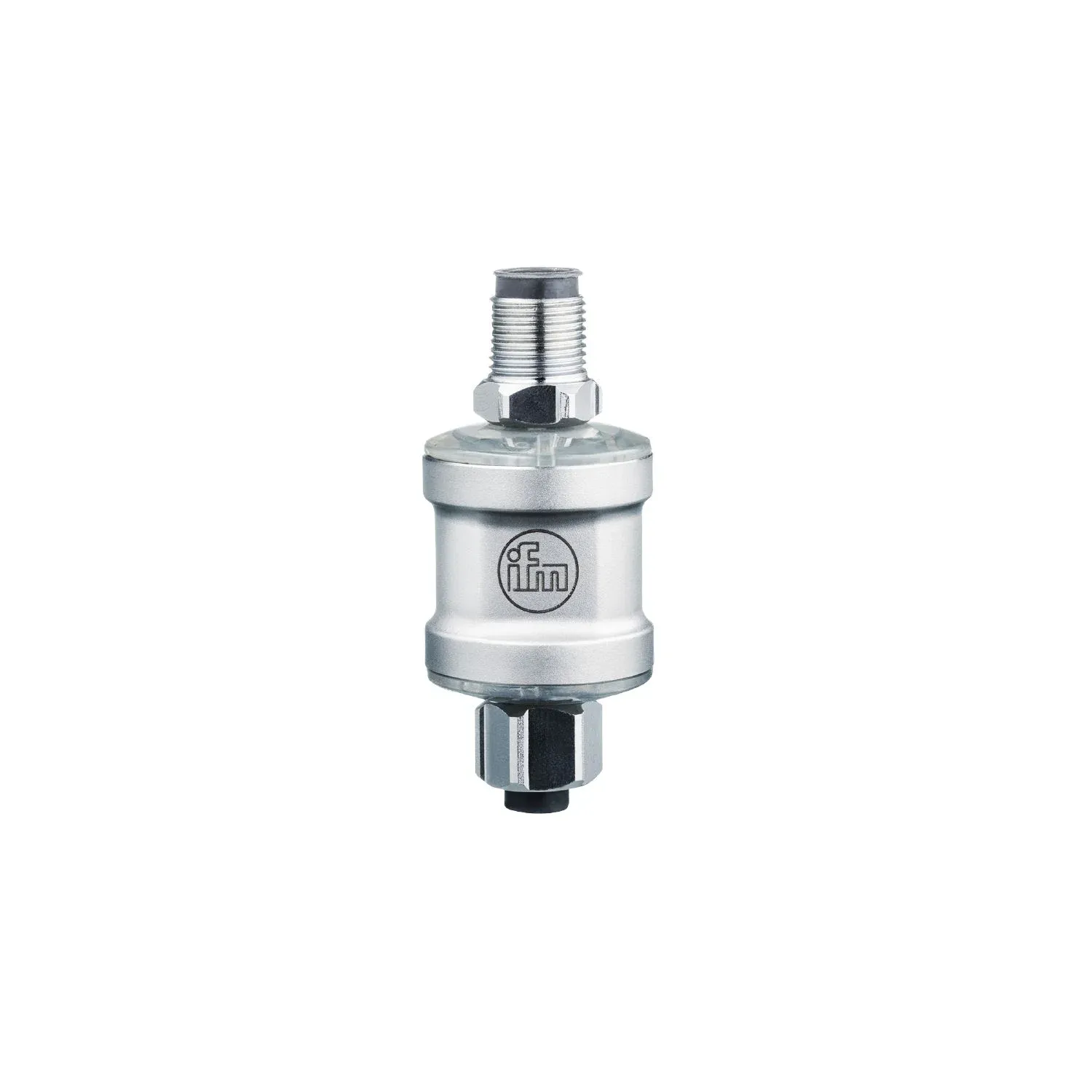

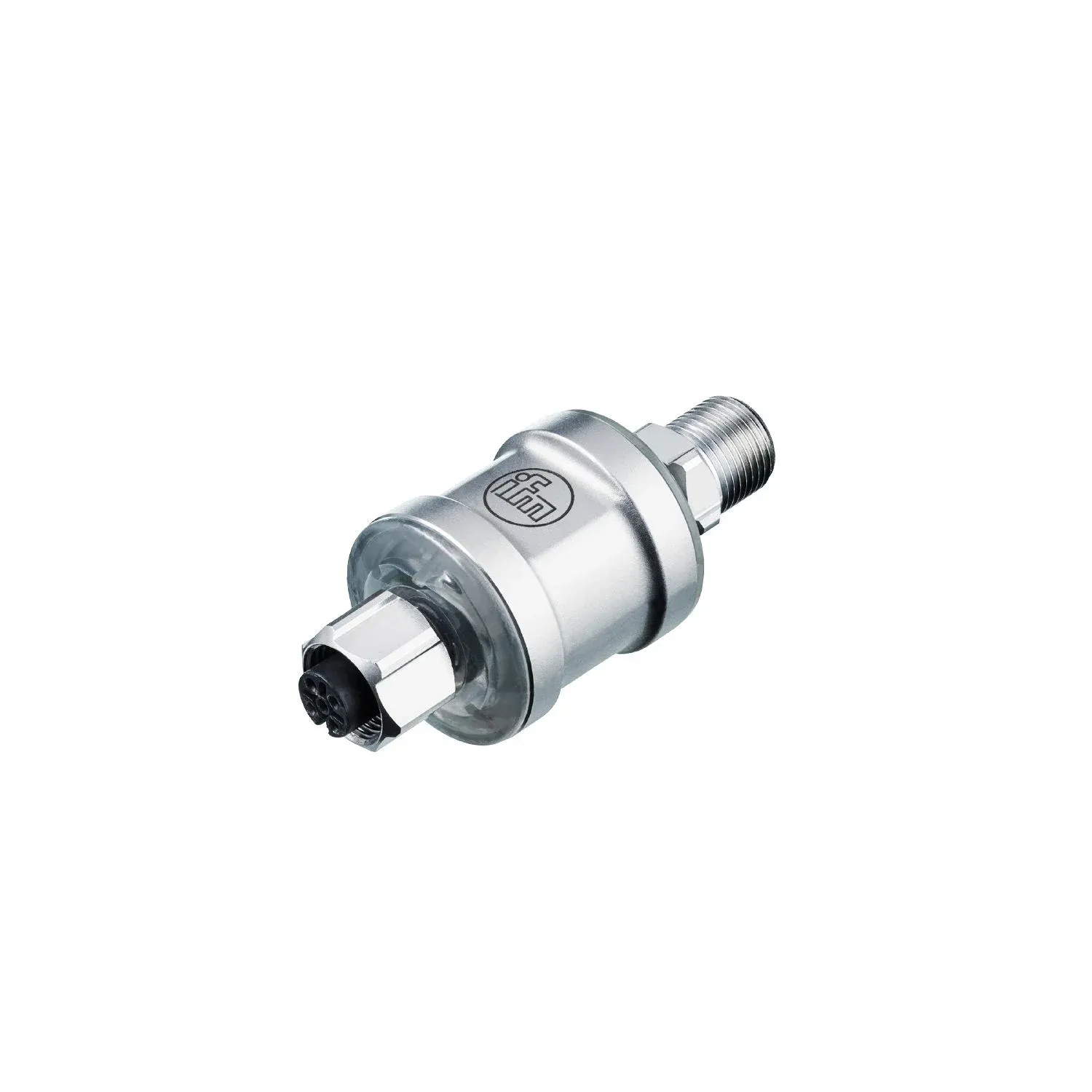

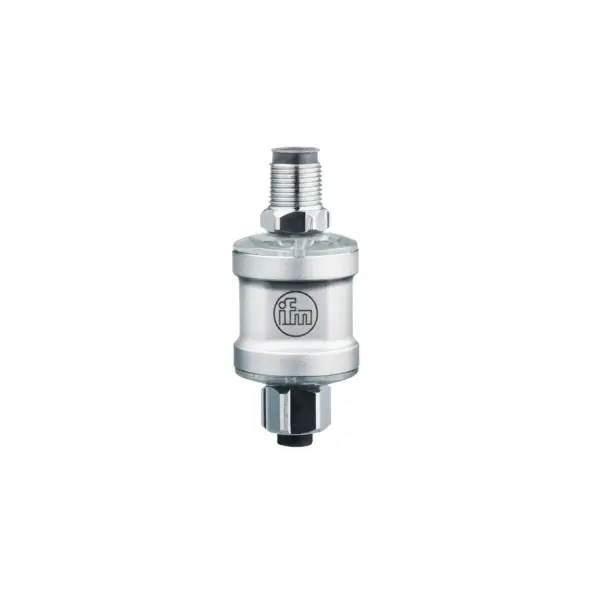

For the signal evaluation of temperature sensors and resistance thermometers
Ideal for demanding control tasks thanks to high resolution
Hygienic stainless steel housing with status LED
Large temperature measurement range
Analogue and switching output as well as IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range[°F] [°F] | -148...572 |
| Communication interface | IO-Link |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for Pt100 and Pt1000 measuring elements |
Electrical data
| Operating voltage[V] [V] | 18...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Overvoltage category | II |
| Power-on delay time[s] [s] | 2 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal; IO-Link; switching signal; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub-13,5)/0,0215 |
| Short-circuit protection | yes |
| Type of short-circuit protection | not locked in place |
| Overload protection | yes |
Measuring/setting range
| Measuring range[°F] [°F] | -148...572 |
|---|---|
| Factory setting | 0...300 °F |
| Resolution of analogue output[K] [K] | 0.032; (MS: 0...300 °F) |
Accuracy / deviations
| Precision analogue output[K] [K] | ± 0,18; (MS: 0...300 °F) ; or ± (0,067 % MS) |
|---|---|
| Precision IO-Link[K] [K] | ± 0,09 |
| Temperature coefficient analogue output[% of the span / 10 K] [% of the span / 10 K] | < 0,1 |
| Temperature coefficient IO-Link[% of the span / 10 K] [% of the span / 10 K] | < 0,06 |
Response times
| Max. measuring/display cycle[ms] [ms] | 350 |
|---|
Software / programming
| Parameter setting options | scaling of the analogue output; calibration adjustment; hysteresis / window; switching logic; simulation mode |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| Profiles | Smart Sensor - SSP 3.1 Measuring Sensor BLOB Binary Large Object transfer Common - I&D Identification and Diagnosis Function ProductURI |
| Smart Sensor - SSP 3.1 | Measuring Sensor |
| BLOB | Binary Large Object transfer |
| Common - I&D | Identification and Diagnosis |
| Function | ProductURI |
| Min. process cycle time[ms] [ms] | 3.2 |
| IO-Link resolution temperature[K] [K] | 0.02 |
| Supported DeviceIDs | default 1327 |
| default | 1327 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 68; IP 69K |
| Pollution degree | 3 |
Tests / approvals
| EMC | DIN EN 61000-6-2 if frequencies above 40 MHz occur, the housing must be grounded DIN EN 61000-6-3 |
|---|---|
| DIN EN 61000-6-2 | if frequencies above 40 MHz occur, the housing must be grounded |
| Shock resistance | DIN EN 68000-2-27 50 g (11 ms) |
| DIN EN 68000-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 462 |
Mechanical data
| Weight[g] [g] | 53.7 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 27.4 / L = 65 |
| Materials | LED: PA; housing: stainless steel (316L/1.4404) |
| Sealing material | FKM |
Displays / operating elements
| Display | status 1 x LED, green switching status 1 x LED, orange |
|---|---|
| status | 1 x LED, green |
| switching status | 1 x LED, orange |
Remarks
| Remarks | MS = set measuring span |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Sensor connection
| Connector | 1 x M12; coding: A; Locking: stainless steel (316L/1.4404); Sealing: FKM; Contacts: gold-plated |
|---|
