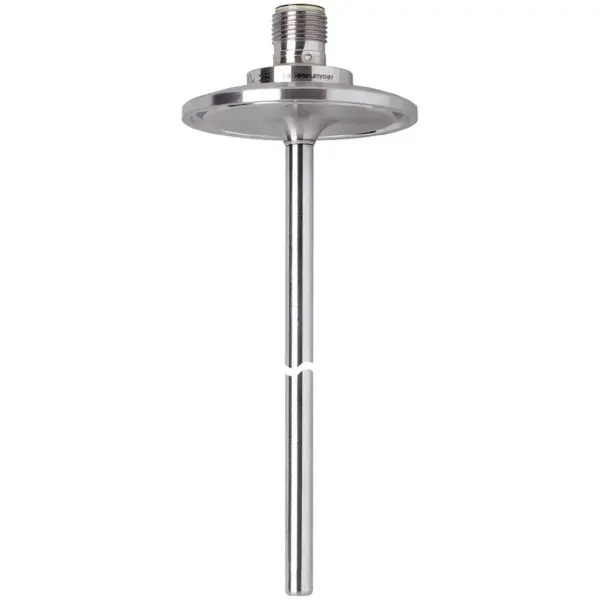

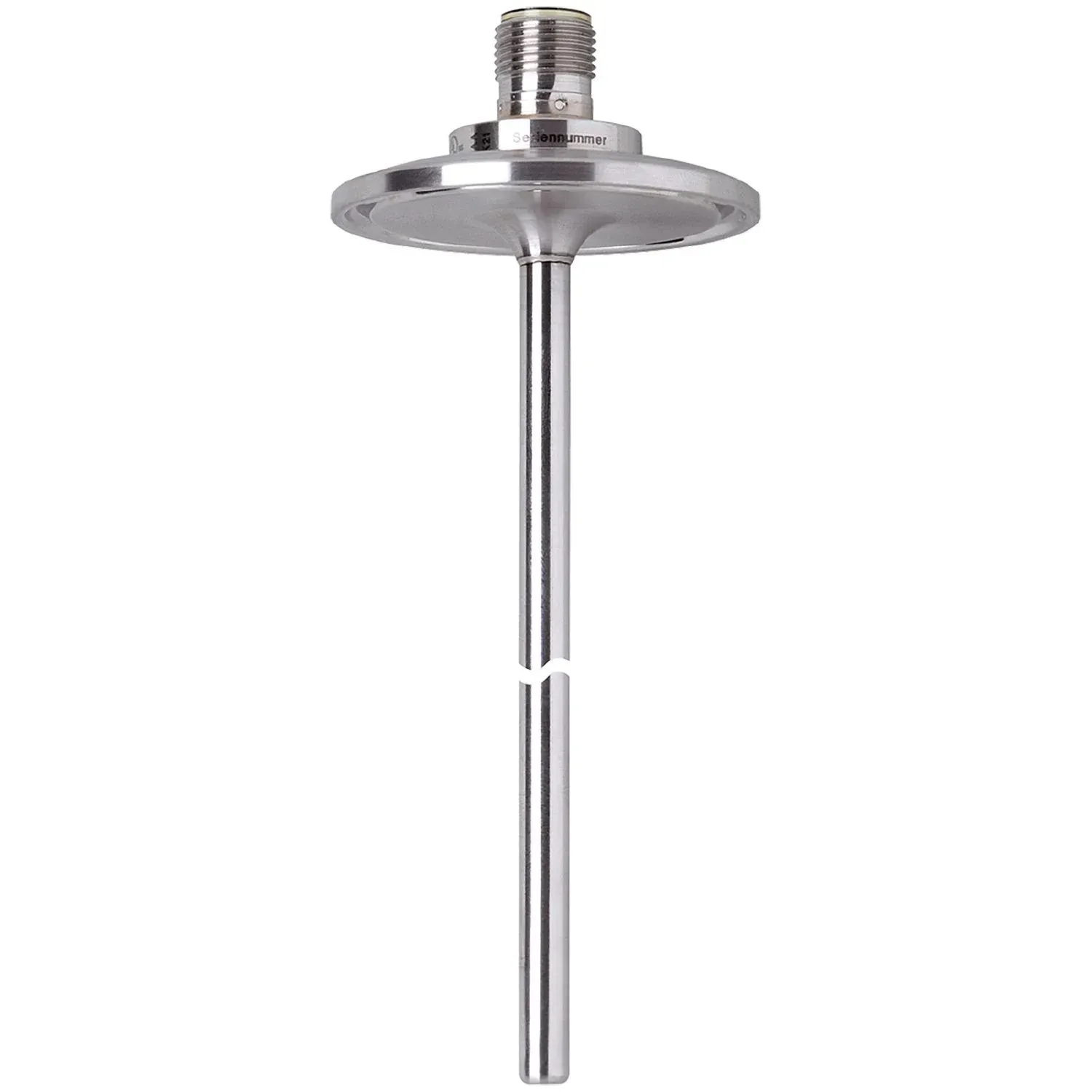

IFM TM4811
TM4811
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise temperature measurement in containers, tanks and pipes
For the connection to an evaluation unit
Very short response time for use in processes with fast temperature fluctuations
Hygienic design for the requirements of the food and beverage industry
Variable process connection using adapters
Specification
Product characteristics
| Measuring range | -40...150 °C -40...302 °F |
|---|---|
| -40...150 °C | -40...302 °F |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Installation length EL[mm] [mm] | 50 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Application | hygienic systems |
| Media | liquids and gases |
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
| Minimum installation depth[mm] [mm] | 15 |
| MAWP for applications according to CRN[bar] [bar] | 50 |
Electrical data
| Protection class | III |
|---|
Measuring/setting range
| Probe length L[mm] [mm] | 50 |
|---|---|
| Measuring range | -40...150 °C -40...302 °F |
| -40...150 °C | -40...302 °F |
Accuracy / deviations
| Accuracy[K] [K] | ± (0,15 K + 0,002 x|t|) |
|---|
Response times
| Dynamic response T05 / T09[s] [s] | 1 / 3; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance | DIN EN 60068-2-2-27 50 g (11 ms) |
|---|---|
| DIN EN 60068-2-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
| MTTF[years] [years] | 22831 |
Mechanical data
| Weight[g] [g] | 184 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 49.8 / L = 74 |
| Materials | stainless steel (316L/1.4404) |
| Materials (wetted parts) | stainless steel (316L/1.4404) electropolished |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm |
| Probe diameter[mm] [mm] | 6 |
| Installation length EL[mm] [mm] | 50 |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus The values for accuracy apply to flowing water. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
