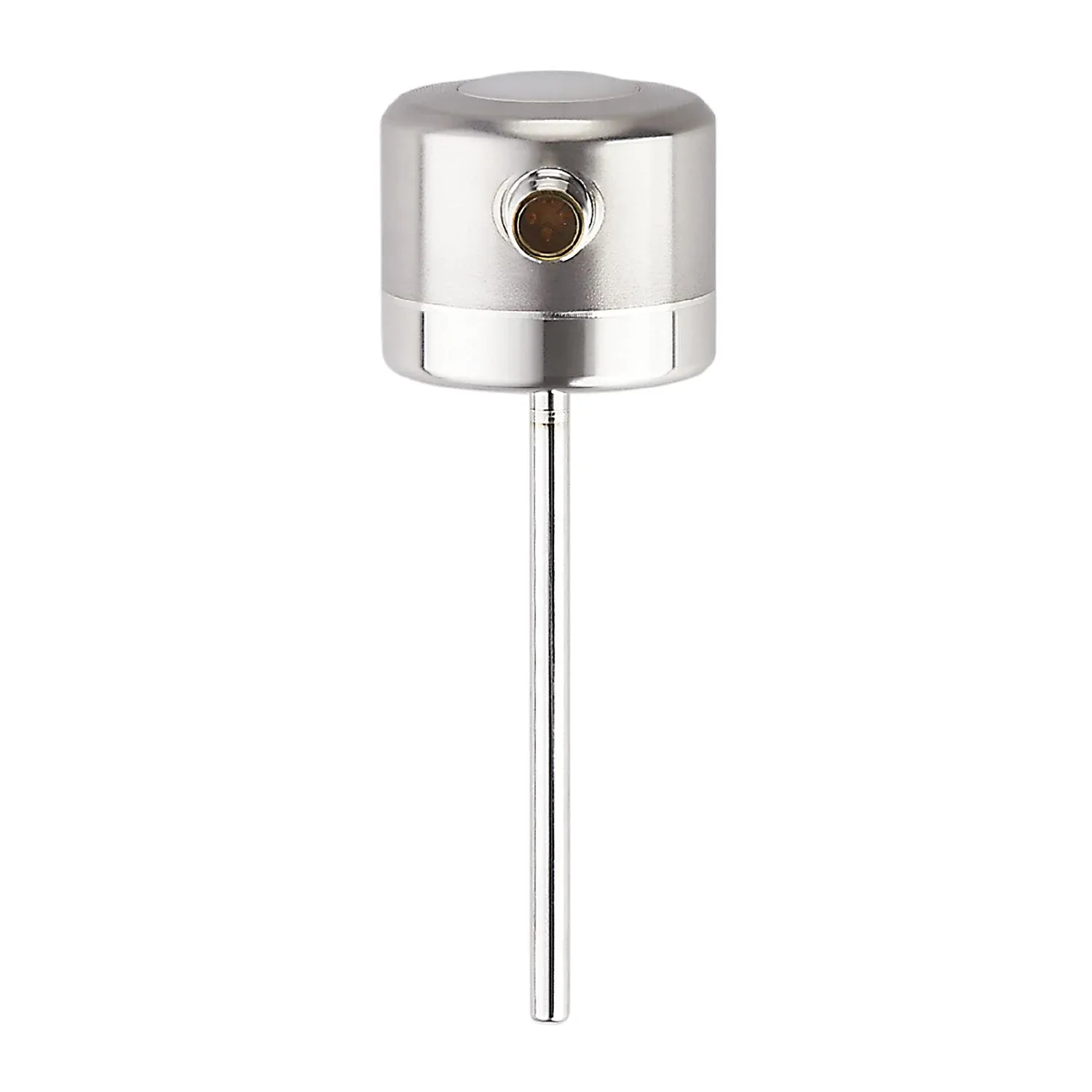

IFM TCC231
TCC231
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Immediate notification of deviations in accuracy
Improved quality assurance in between calibration intervals
Robust design for permanently precise measurements even in demanding environments
Transparent sensor monitoring thanks to logging of the diagnostic values
Simulation function simplifies installation
Precise analogue output and user-friendly communication via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range | -25...160 °C -13...320 °F |
| -25...160 °C | -13...320 °F |
| Communication interface | IO-Link |
| Process connection | clamp adapter Ø 6 mm |
| Installation length EL[mm] [mm] | 100 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000 |
| Reference element | 1 x NTC |
| Media | liquids and gases |
| Pressure rating | 160 bar 16 MPa |
| 160 bar | 16 MPa |
| Minimum installation depth[mm] [mm] | 15 |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 10; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 6 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal; IO-Link; (calibration check status) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally closed; (diagnostic signal) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Diagnostic output | calibration check status and error diagnostics |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub - 15 V) x 50 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Probe length L[mm] [mm] | 100 |
|---|---|
| Measuring range | -25...160 °C -13...320 °F |
| -25...160 °C | -13...320 °F |
| Note on measuring range | scalable |
| Factory setting | -10...150 °C / 14...302 °F |
| Calibration check limit[K] [K] | 0.5...3 |
| In steps of[K] [K] | 0.05 |
| Resolution of analogue output[K] [K] | 0.05 |
Accuracy / deviations
| Precision analogue output[K] [K] | ± 0,2 |
|---|---|
| Precision IO-Link[K] [K] | ± 0,2 |
| Temperature coefficient analogue output[% of the span / 10 K] [% of the span / 10 K] | < ± 0,02; (in case of deviation from the reference condition 25 ± 5 °C) |
| Temperature coefficient IO-Link[% of the span / 10 K] [% of the span / 10 K] | < ± 0,01; (in case of deviation from the reference condition 25 ± 5 °C) |
Response times
| Dynamic response T05 / T09[s] [s] | 1,5 / 4 |
|---|
Software / programming
| Parameter setting options | Display unit; scaling of the analogue output; calibration check limit; switching logic diagnostic output; simulation mode |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | BLOB Binary Large Object transfer Common - I&D Identification and Diagnosis Function Measurement data, standard resolution |
| BLOB | Binary Large Object transfer |
| Common - I&D | Identification and Diagnosis |
| Function | Measurement data, standard resolution |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 1 |
| Min. process cycle time[ms] [ms] | 4.4 |
| IO-Link resolution temperature[K] [K] | 0.01 |
| Supported DeviceIDs | default 1129 |
| default | 1129 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Note on ambient temperature | max. internal device temperature: 125 °C |
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 68000-2-27 50 g (11 ms) |
| DIN EN 68000-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 35 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 35 g (10...2000 Hz) |
| MTTF[years] [years] | 329 |
| Note on approval | factory certificate available as download at www.factory-certificate.ifm |
| UL approval | UL approval no. K021 File number UL E217884 |
| UL approval no. | K021 |
| File number UL | E217884 |
Mechanical data
| Weight[g] [g] | 275.6 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 50 / L = 143.5 |
| Materials | stainless steel (316L/1.4404); PEI; FKM; PFA |
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Process connection | clamp adapter Ø 6 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm |
| Probe diameter[mm] [mm] | 6 |
| Installation length EL[mm] [mm] | 100 |
Remarks
| Remarks | MS = set measuring span operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
