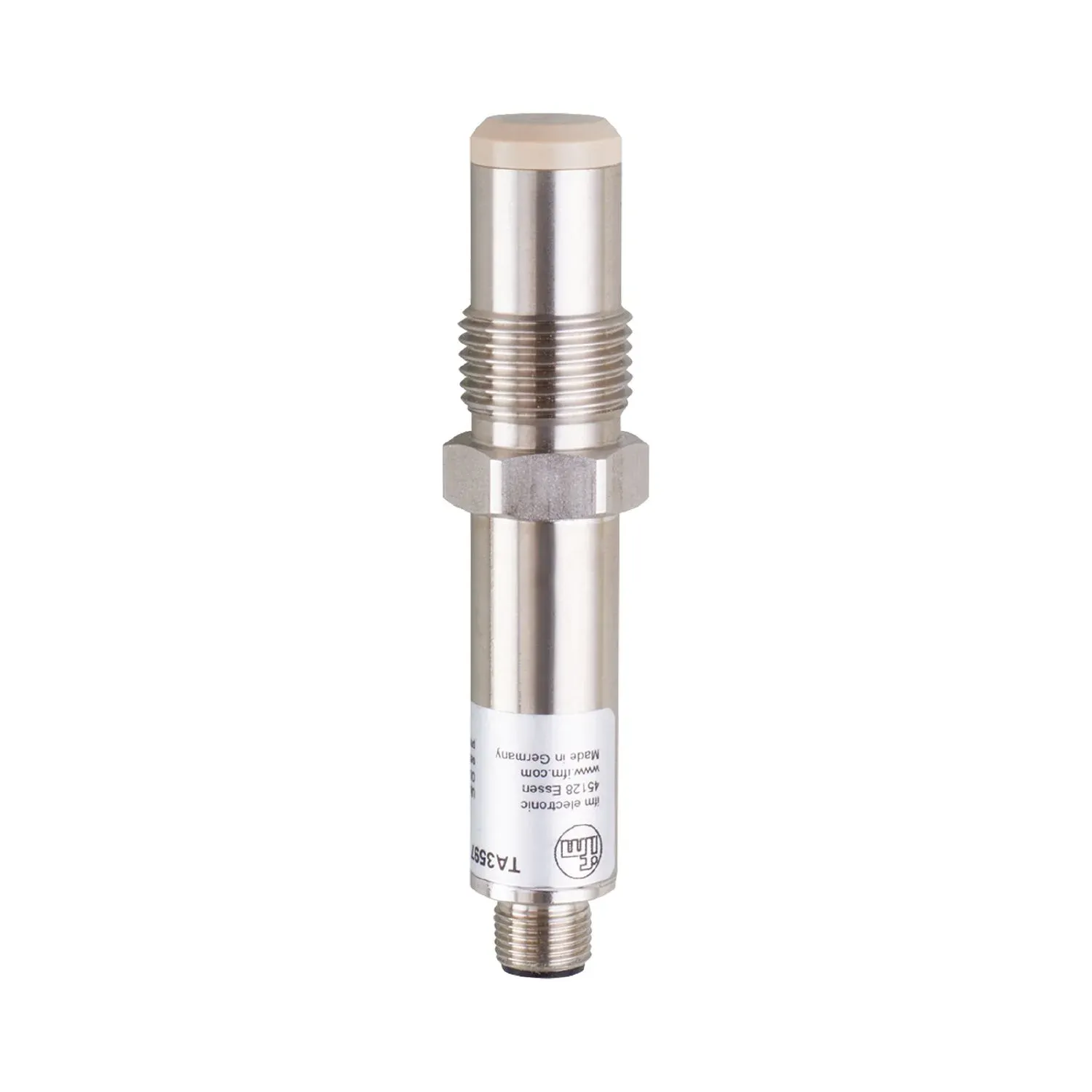

IFM TA3597
TA3597
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Hygienic and robust design
Particularly space-saving design
Safe sealing in the process
Adapters for all standard process connections
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range[°C] [°C] | 0...100 |
| Process connection | threaded connection G 1/2 external thread sealing cone flush mountable |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | < 100; (< 5 min: 150) |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Electrical data
| Operating voltage[V] [V] | 18...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
Measuring/setting range
| Measuring range[°C] [°C] | 0...100 |
|---|
Accuracy / deviations
| Precision analogue output[K] [K] | ± (0,25 K + 0,002 x|t|) |
|---|---|
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | 0,1 |
Response times
| Dynamic response T05 / T09[s] [s] | 10 / 40; (for water (70 °C; 0,04 m/s)) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 69K; (in conjunction with a corresponding connector) |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|
Mechanical data
| Weight[g] [g] | 146.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 18 / L = 102 |
| Materials | stainless steel (316L/1.4404); PEEK |
| Materials (wetted parts) | stainless steel (316L/1.4404); PEEK |
| Tightening torque[Nm] [Nm] | 10 |
| Process connection | threaded connection G 1/2 external thread sealing cone flush mountable |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
