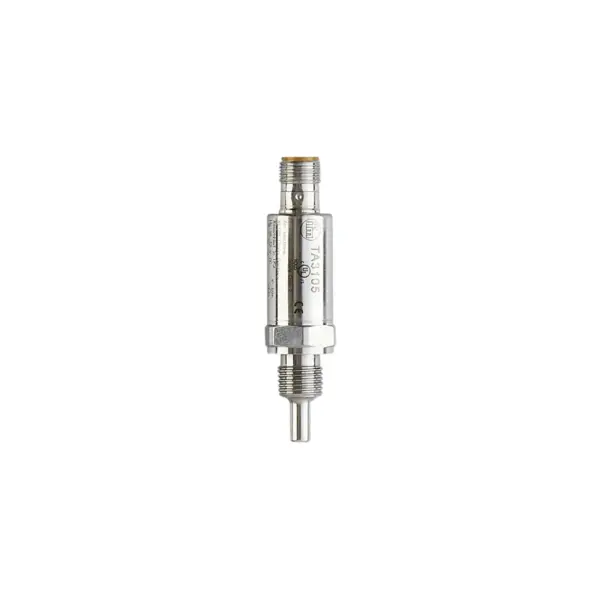

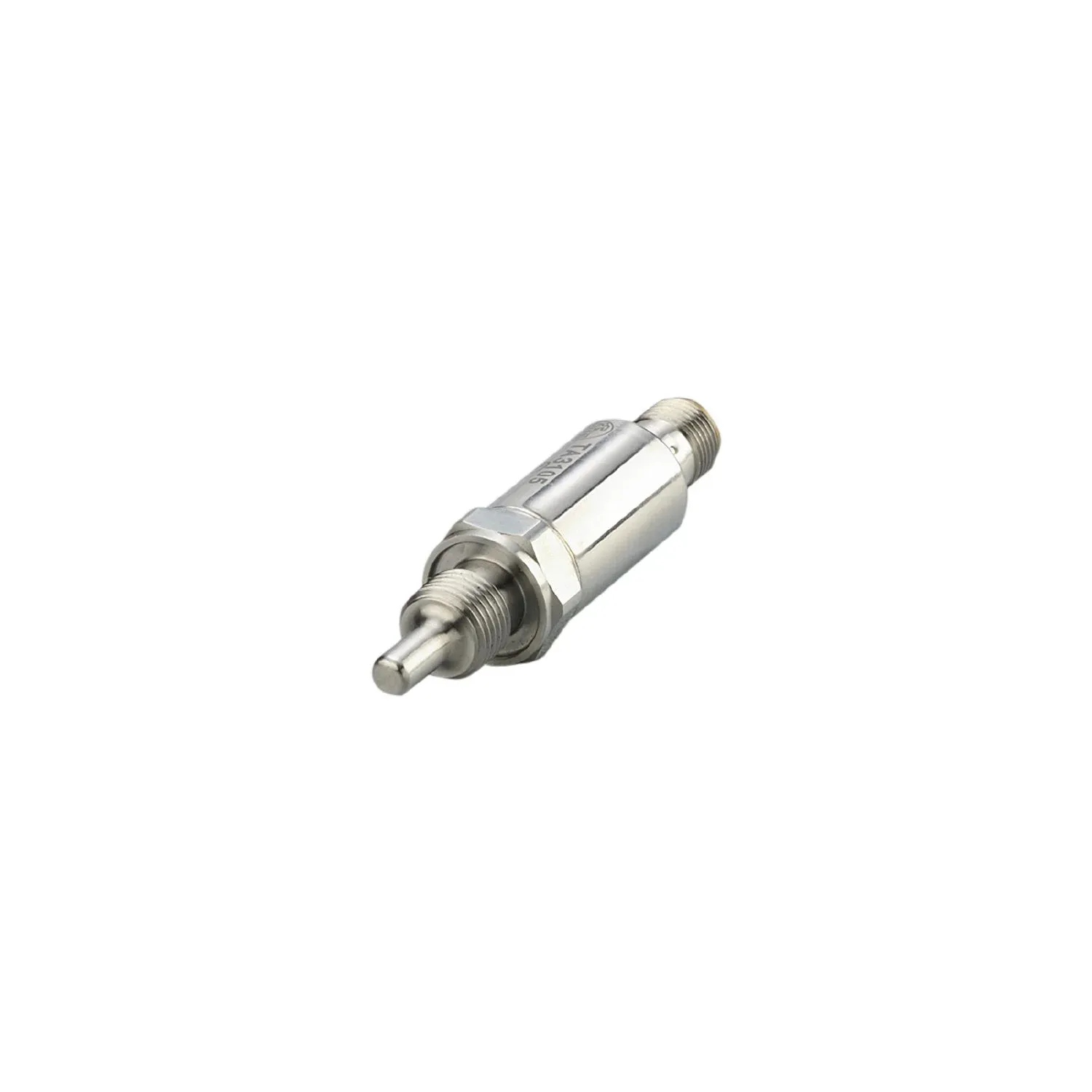

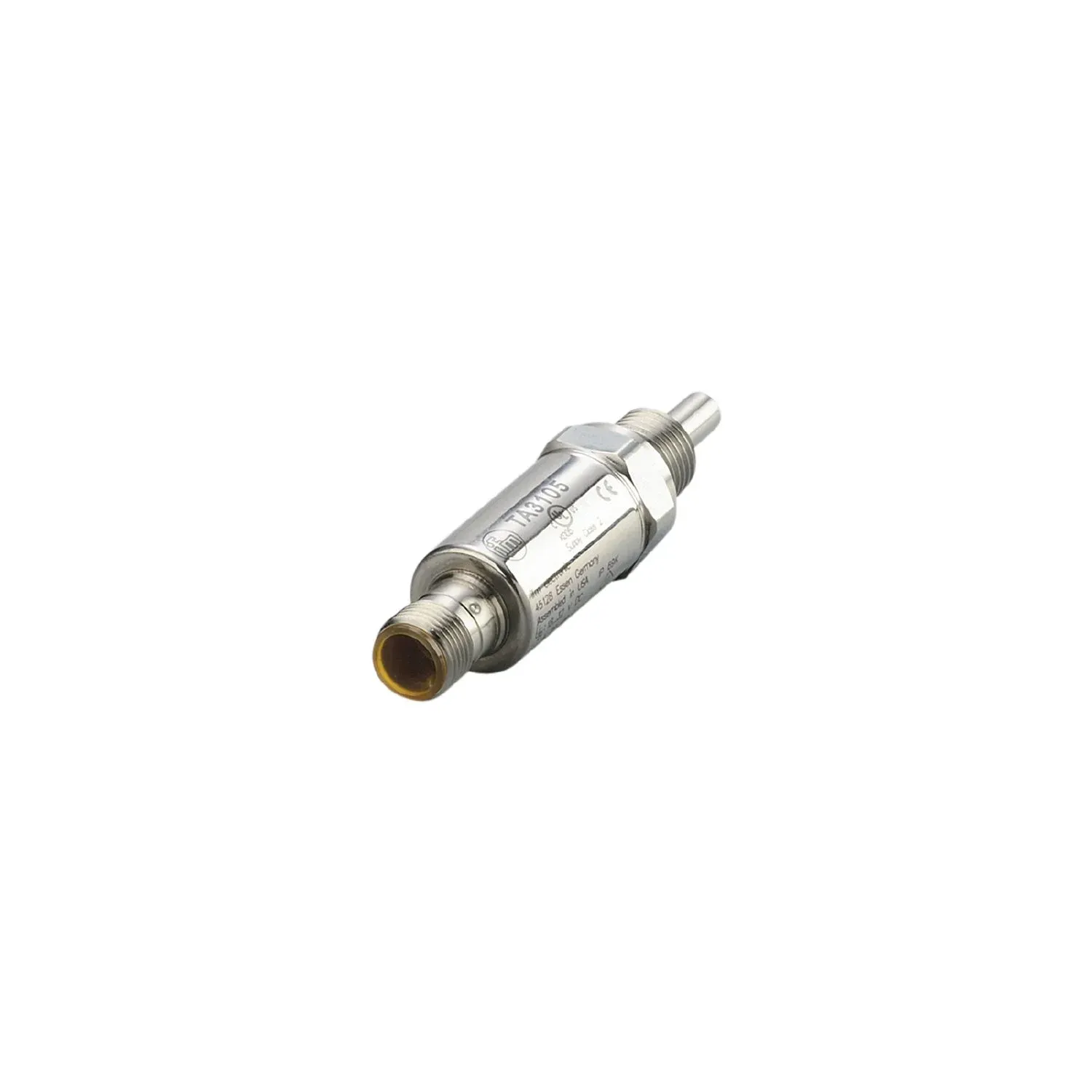

IFM TA3105
TA3105
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High precision across the entire temperature measurement range
Wide operating temperature range
Particularly good response dynamics and very short power-on delay time
Robust stainless steel housing with very high pressure rating
High protection rating for the requirements of mobile machines
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | -50...150 °C -58...302 °F |
| -50...150 °C | -58...302 °F |
| Process connection | threaded connection G 1/4 external thread |
| Installation length EL[mm] [mm] | 25 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Pressure rating[bar] [bar] | 400 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub - 8,5 V) / 21,5 mA; 24 V: 720 Ω |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Probe length L[mm] [mm] | 13 |
|---|---|
| Measuring range | -50...150 °C -58...302 °F |
| -50...150 °C | -58...302 °F |
| Resolution of analogue output[K] [K] | 0.04 |
Accuracy / deviations
| Precision analogue output[K] [K] | ± 0,3 + (± 0,1 % MS) |
|---|---|
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | 0,1; (in case of deviation from the reference condition 25 ± 5 °C) |
Response times
| Dynamic response T05 / T09[s] [s] | 1 / 3; (to DIN EN 60751) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...100 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 1092 |
| UL approval | UL approval no. K005 |
| UL approval no. | K005 |
Mechanical data
| Weight[g] [g] | 89 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 18.8 / L = 80.3 |
| Materials | stainless steel (316L/1.4404); PEI; FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); FKM |
| Process connection | threaded connection G 1/4 external thread |
| Probe diameter[mm] [mm] | 6 |
| Installation length EL[mm] [mm] | 25 |
Remarks
| Remarks | The values for accuracy apply to flowing water. referring to UL: for use on a low voltage circuit with overcurrent protection in accordance with UL873 tab. 28.1 or Imax = 100/Ub (Ub = voltage of the circuit) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
