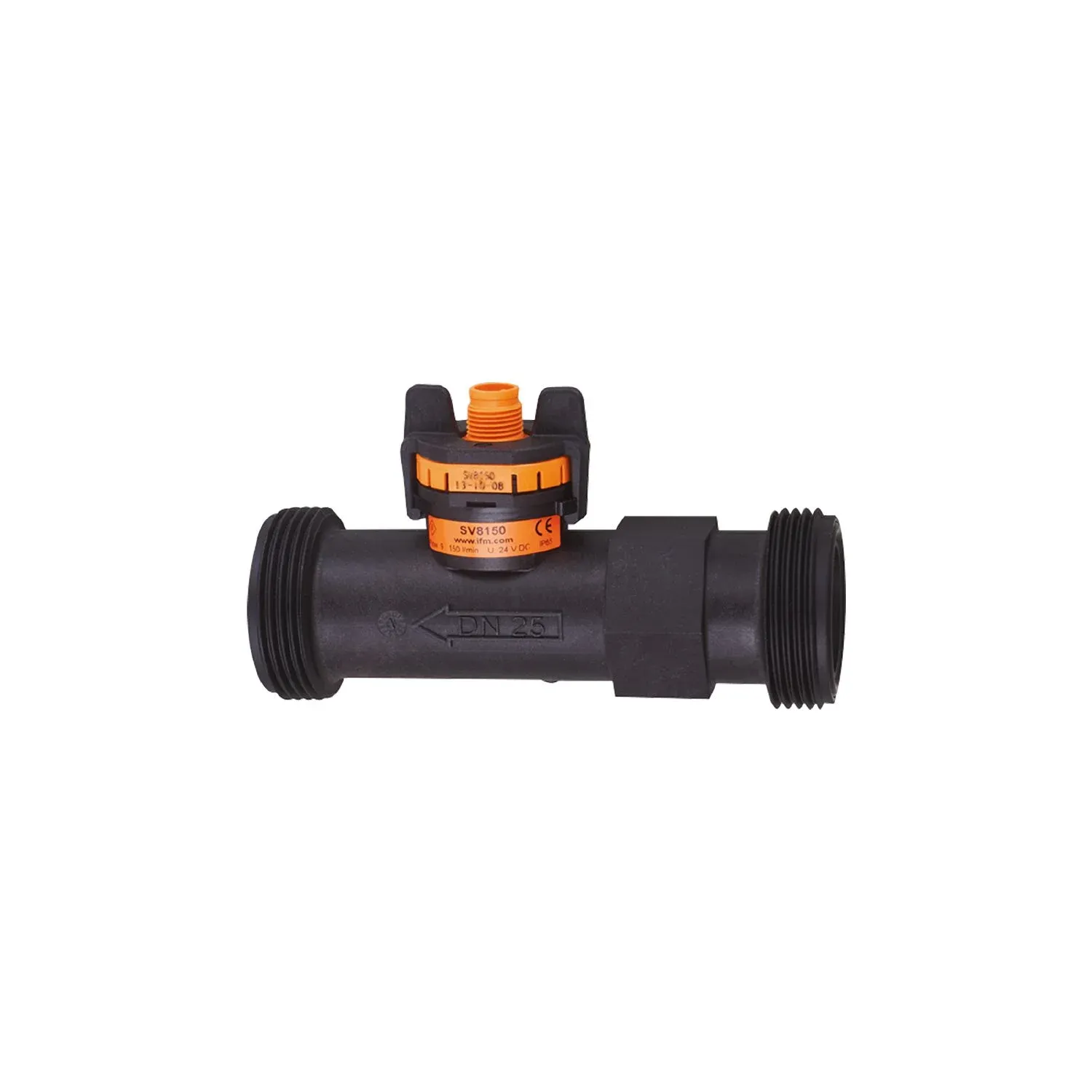

IFM SV8050
SV8050
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of flow and medium temperature
Precise linearized analogue output
Suitable for water and water-based media
For installation in pipes
High precision of flow and temperature monitoring
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 9...150 l/min 0.283...4.709 m/s |
| 9...150 l/min | 0.283...4.709 m/s |
| Process connection | threaded connection G 1 1/4 external thread DN25 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class B) |
| Application | for industrial applications |
| Installation | connection to pipe by means of an adapter |
| Media | water; glycol solutions; coolants |
| Medium temperature[°C] [°C] | -40...100 |
| Min. burst pressure | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
| Pressure rating | 12 bar 1.2 MPa |
| 12 bar | 1.2 MPa |
| Note on pressure rating | up to 40 °C |
Electrical data
| Operating voltage[V] [V] | 8...33 DC |
|---|---|
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Power-on delay time[s] [s] | < 2 |
| Measuring principle | Vortex |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (water: Q [l/min] = 9,375 x (I - 4 mA); water-glycol: Q [l/min] = 9,375 x (I - 4 mA) - Qo see Figure 2) |
| Max. load[Ω] [Ω] | < (Ub - 8 V) / 20 mA; Ub = 24 V: 800 |
Measuring/setting range
| Measuring range | 9...150 l/min 0.283...4.709 m/s |
|---|---|
| 9...150 l/min | 0.283...4.709 m/s |
| Internal heating temperature probe | 1 K/mW |
| Measuring range[°C] [°C] | -40...100 |
Accuracy / deviations
| Accuracy (in the measuring range) | Q < 50 % MEW: < 1 % MEW / Q > 50 % MEW: < 2 % MW; (water) |
|---|---|
| Repeatability | 0,2; (% of the final value) |
| Accuracy[K] [K] | ± 0,3 ± 0,005 x T |
Response times
| Response time[s] [s] | 0.5 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -15...85 |
|---|---|
| Storage temperature[°C] [°C] | -30...85 |
| Protection | IP 65 |
| Cavitation | P(absolute) discharge / P(difference) > 5.5 to avoid cavitation |
Tests / approvals
| EMC | EN 61326-2-3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 30 g (11 ms) |
| DIN EN 60068-2-27 | 30 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 with water / 10...61 Hz 1 mm with water / 61...2000 Hz 2 g |
| DIN EN 60068-2-6 | with water / 10...61 Hz 1 mm |
| MTTF[years] [years] | 380 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 138.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 120 x 41.91 x 68.3 |
| Materials | PA 6T |
| Materials (wetted parts) | ETFE; PA 6T; FKM |
| Tightening torque[Nm] [Nm] | 15 |
| Process connection | threaded connection G 1 1/4 external thread DN25 |
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
