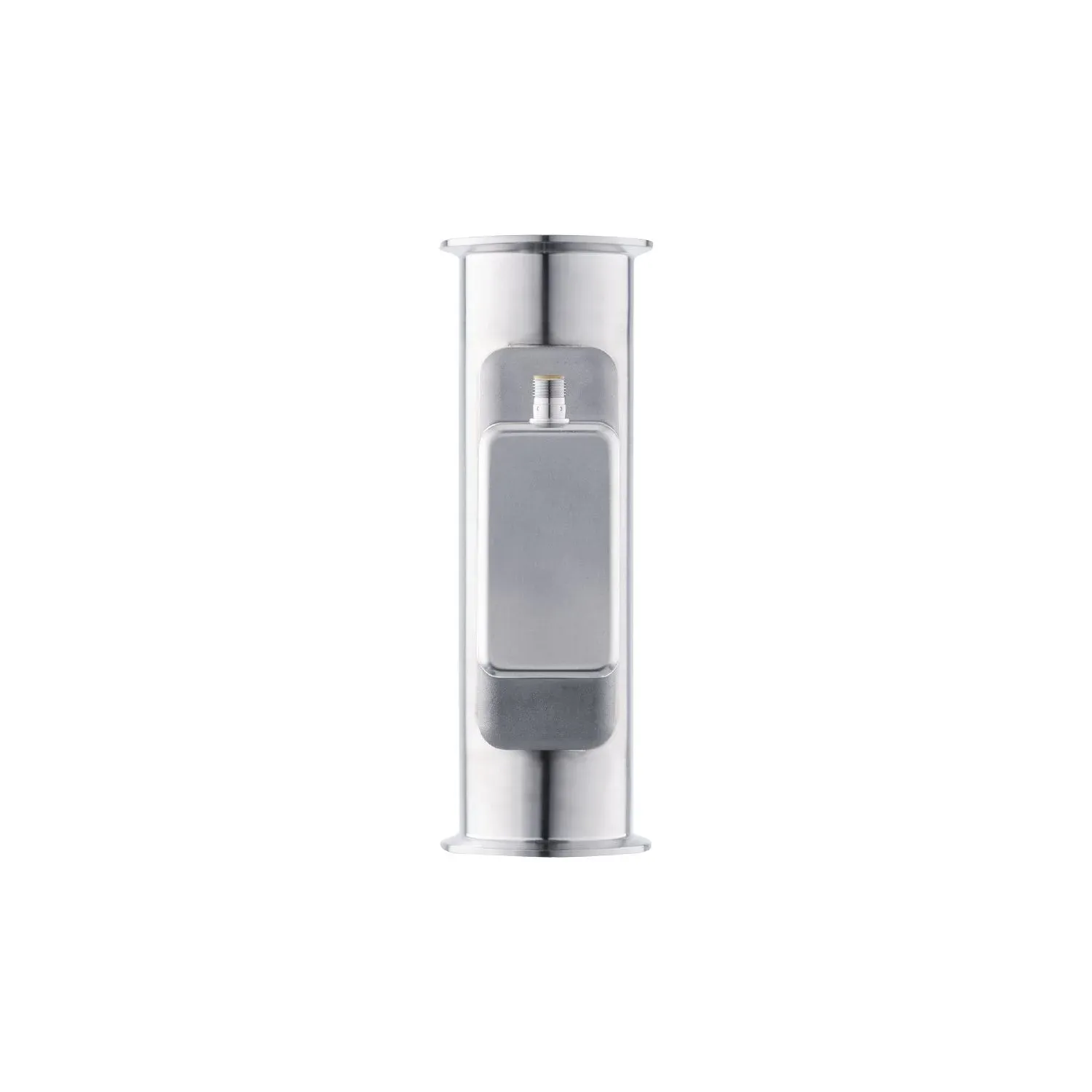

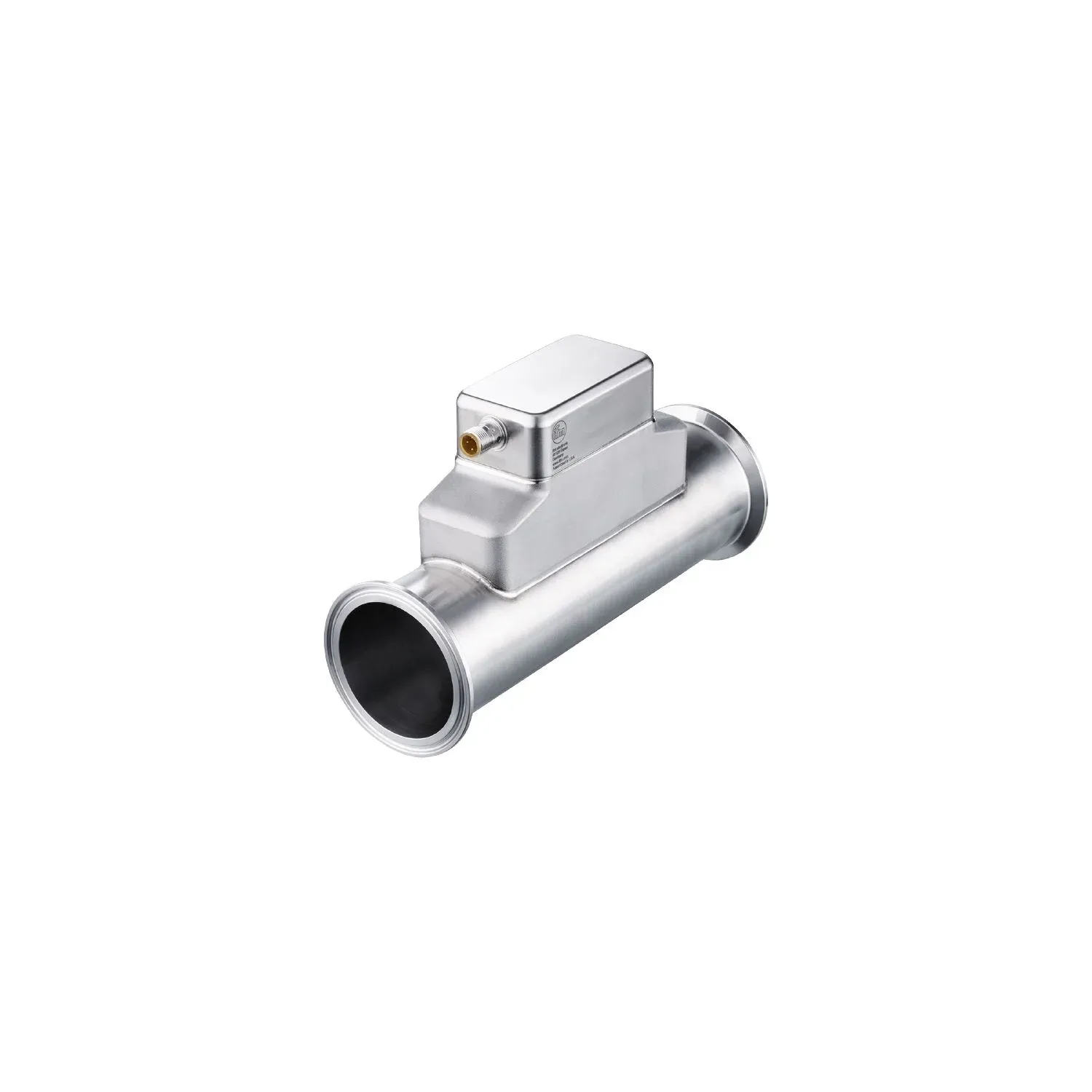

IFM SUH520

SUH520

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

A robust, component-free measuring pipe made of stainless steel offers high media resistance and permanent ingress resistance
The highly accurate inline measurement process eliminates any influence of varying wall thicknesses and pipe materials
Operating status LED signals the sensor status and allows conclusions about process quality
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Measuring range20...2400 l/min
1.2...144 m³/h
320...38040 gph
5.2...634 gpm
20...2400 l/min1.2...144 m³/h
Nominal diameterDN65 (2 1/2“)
Process connectionClamp DN65 DIN 32676 series A

Application

Special featureGold-plated contacts
Applicationfood and beverage industry
Mediaultra-pure water; water; hydrous media
Note on mediahydrous media: for media with >10 % additives, the repeatability is the only available value
Medium temperature[°C] [°C]-40...120; (< 1 h: 150)
Min. burst pressure40 bar
4 MPa
40 bar4 MPa
Pressure rating25 bar
2.5 MPa
25 bar2.5 MPa
Note on pressure ratingtake into account the pressure resistance of the bracket and the seal used for clamp connection
Vacuum resistance[mbar] [mbar]-1000

Electrical data

Operating voltage[V] [V]18...32 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 75
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principleultrasonic

Inputs / outputs

Total number of inputs and outputs2

Inputs

InputsOUT2
counter reset
OUT2counter reset

Outputs

Total number of outputs2
Output signalOUT1
switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link
OUT2
switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal
OUT1switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link
OUT2switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal
Electrical designPNP/NPN
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Number of analogue outputs1
Analogue current output[mA] [mA]4...20
Max. load[Ω] [Ω]500
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]0...10000

Measuring/setting range

Measuring range-40...120 °C
-40...248 °F
20...2400 l/min1.2...144 m³/h
Resolution0.1 °C
0.1 °F
0.1 l/min0.001 m³/h
Note on factory settingl/min, °C
Set point SP-39.4...120 °C
-39...248 °F
33.2...2400 l/min1.99...144 m³/h
Reset point rP-40...119.4 °C
-40...247 °F
20.7...2387.5 l/min1.24...143.25 m³/h
Analogue start point ASP-2400...1920 l/min
-144...115.2 m³/h
-38041...30433 gph
-634...507.2 gpm
-2400...1920 l/min-144...115.2 m³/h
Analogue end point AEP-1920...2400 l/min
-115.2...144 m³/h
-30433...38041 gph
-507.2...634 gpm
-1920...2400 l/min-115.2...144 m³/h
Low flow cut-off LFC20...120 l/min
1.2...7.2 m³/h
317...1902 gph
5.3...31.7 gpm
20...120 l/min1.2...7.2 m³/h
Frequency end point, FEP-8...120 °C
17.6...248 °F
481.5...2400 l/min28.89...144 m³/h
Frequency at the end point FRP[Hz] [Hz]1...10000
Pulse length[s] [s]0.002...2
Pulse value0.1...99990000 I; 0.026…26414563.515 gal
-40...120 °C-40...248 °F
0.1 °C0.1 °F
-39.4...120 °C-39...248 °F
-40...119.4 °C-40...247 °F
Analogue start point-40...88 °C
-40...190.4 °F
-40...88 °C-40...190.4 °F
Analogue end point-8...120 °C
17.6...248 °F
-8...120 °C17.6...248 °F
Frequency start point, FSP-40...88 °C
-40...190.4 °F

Accuracy / deviations

Accuracy (in the measuring range)water
± (2,0 % MW + 0,5 % MEW)
water± (2,0 % MW + 0,5 % MEW)
Repeatability± 0,2 % MEW
Accuracy[K] [K]± 2,5 (Q > 5 % MEW)
Temperature coefficient[% of the span / 10 K] [% of the span / 10 K]0,2

Response times

Response time[s] [s]< 0.5; (dAP = 0, T09)
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]5,7 / 86

Software / programming

Diagnostic functionsdirection of flow detection; signal quality

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1.3
SDCI standardIEC 61131-9: 2013-07
ProfilesBLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]9.6
IO-Link process data (cyclical)totaliser
32
Flow monitoring
32
Temperature monitoring
32
status
4
Output 1
1
Output 2
1
totaliser32
Flow monitoring32
Temperature monitoring32
status4
Output 11
Output 21
Supported DeviceIDsdefault
1854
default1854

Operating conditions

Ambient temperature[°C] [°C]-20...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 69; (DIN EN 60529)

Tests / approvals

EMCDIN 61326-1:2021
Shock resistanceDIN IEC 68-2-27
20 g (11ms)
DIN IEC 68-2-2720 g (11ms)
Vibration resistanceDIN IEC 68-2-6
20 g (10...2000Hz)
DIN IEC 68-2-620 g (10...2000Hz)
MTTF[years] [years]136
UL approvalUL approval no.
I038
File number UL
E174189
UL approval no.I038
File number ULE174189
Pressure Equipment Directivecan be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]1830.4
Housingrectangular
Inlet pipe length15 x DN
Outlet pipe length3 x DN
Dimensions[mm] [mm]220 x 91 x 139
Materialshousing: stainless steel (316L/1.4404); connector: PEI, FKM
Materials (wetted parts)Pipe section: stainless steel (316L/1.4435); Process connection: stainless steel (316L/1.4404)
Nominal diameterDN65 (2 1/2“)
Process connectionClamp DN65 DIN 32676 series A
Process connection suitable for pipe standardDN65 / Ø 70 mm x 2 mm; (DIN 11866 series A); (DIN EN 10357 series A)
Surface characteristics Ra/Rz of the wetted partsRa < 0.4 µm (16 µin); Rz = 4 µm (157 µin)

Displays / operating elements

Displayoperating status
1 x LED, green
operating status1 x LED, green

Accessories

Items suppliedpackage insert

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
pulse and totaliser signal are only available for one of the two outputs
the specified surface characteristics Ra/Rz of the wetted surfaces do not apply to the weld seam.
Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A; Contacts: gold-plated
