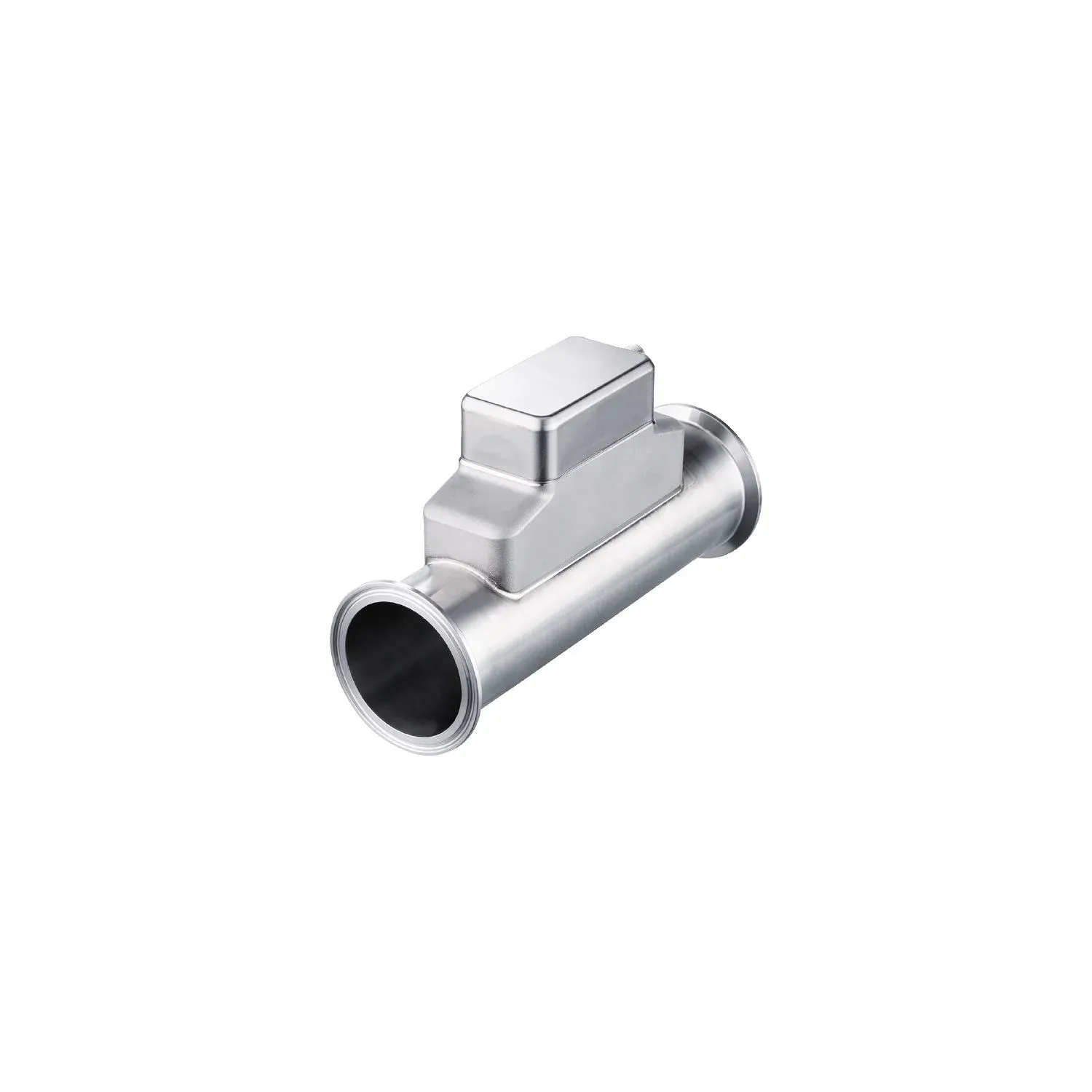

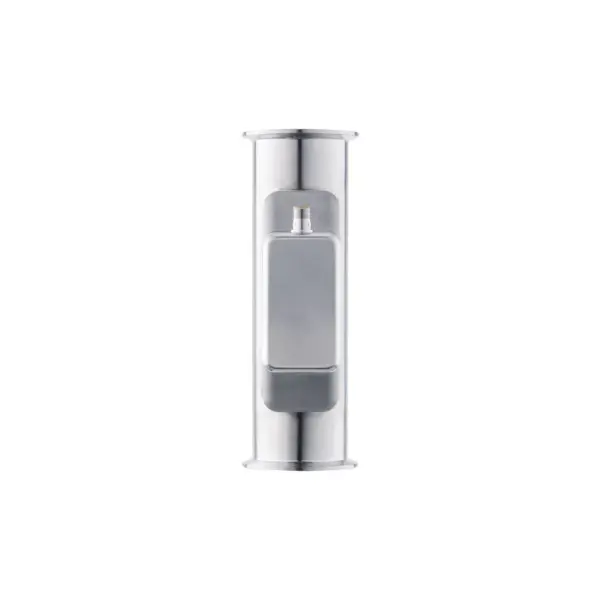

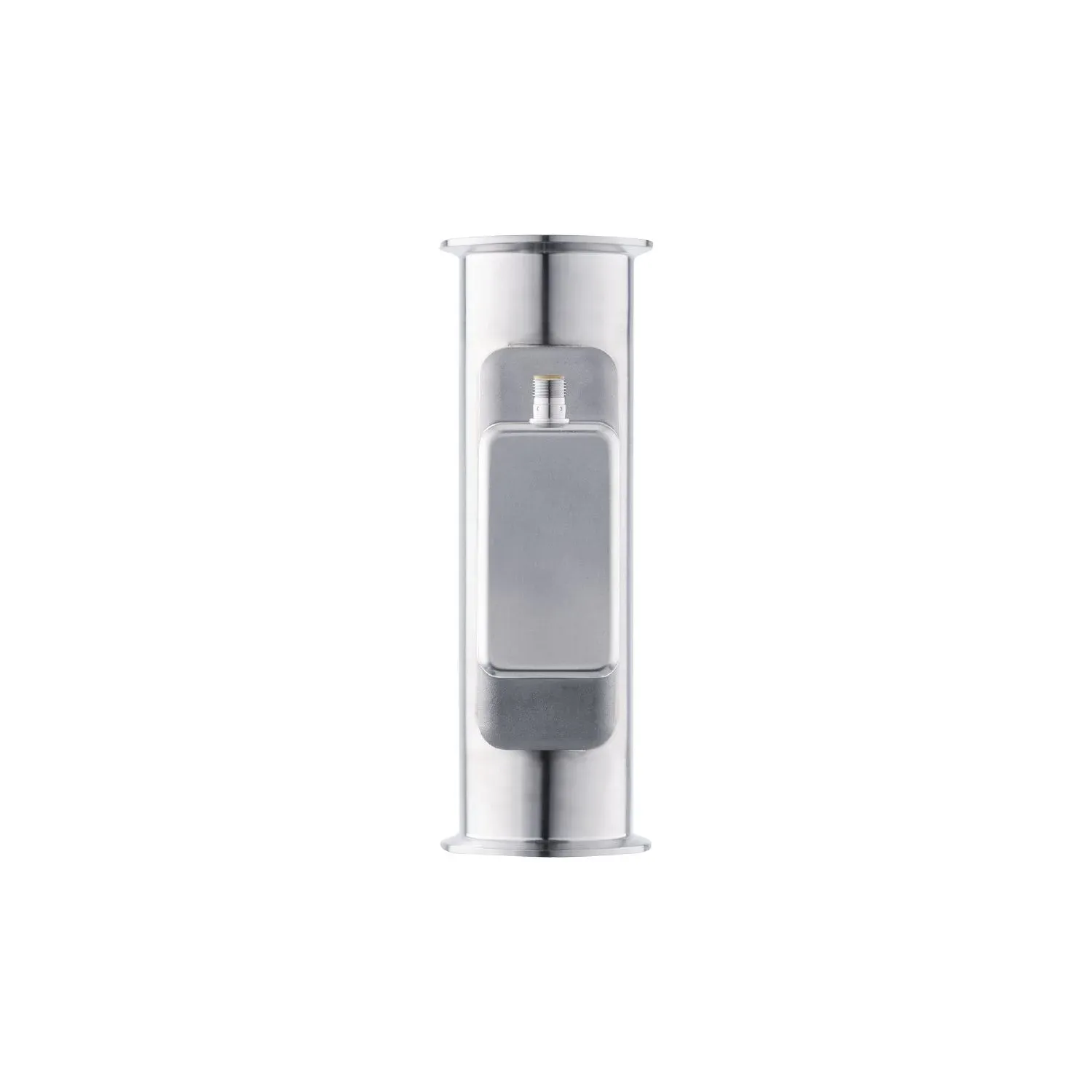

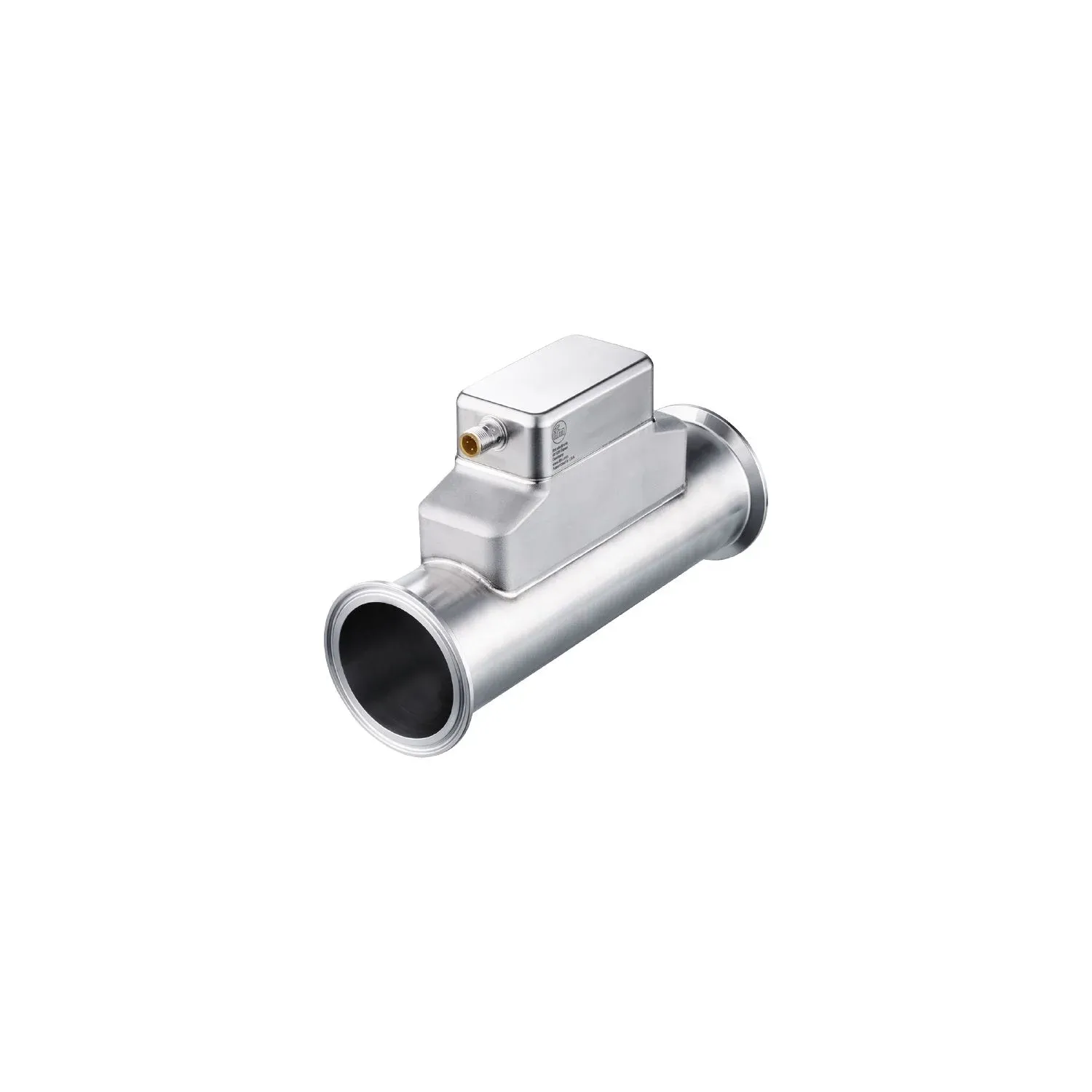

IFM SUH501
SUH501
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
A robust, component-free measuring pipe made of stainless steel offers high media resistance and permanent ingress resistance
The highly accurate inline measurement process eliminates any influence of varying wall thicknesses and pipe materials
Operating status LED signals the sensor status and allows conclusions about process quality
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Measuring range | 20...2400 l/min 1.2...144 m³/h 320...38040 gph 5.2...634 gpm |
|---|---|
| 20...2400 l/min | 1.2...144 m³/h |
| Nominal diameter | DN65 (2 1/2“) |
| Process connection | Clamp 2,5" DIN 32676 series C (ASME BPE) |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | food and beverage industry |
| Media | ultra-pure water; water; hydrous media |
| Note on media | hydrous media: for media with >10 % additives, the repeatability is the only available value |
| Medium temperature[°C] [°C] | -40...120; (< 1 h: 150) |
| Min. burst pressure | 40 bar 4 MPa |
| 40 bar | 4 MPa |
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
| Note on pressure rating | take into account the pressure resistance of the bracket and the seal used for clamp connection |
| Vacuum resistance[mbar] [mbar] | -1000 |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 75 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 5 |
| Measuring principle | ultrasonic |
Inputs / outputs
| Total number of inputs and outputs | 2 |
|---|
Inputs
| Inputs | OUT2 counter reset |
|---|---|
| OUT2 | counter reset |
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | OUT1 switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link OUT2 switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal |
| OUT1 | switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link |
| OUT2 | switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal |
| Electrical design | PNP/NPN |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 0...10000 |
Measuring/setting range
| Measuring range | -40...120 °C -40...248 °F |
|---|---|
| 20...2400 l/min | 1.2...144 m³/h |
| Resolution | 0.1 °C 0.1 °F |
| 0.1 l/min | 0.001 m³/h |
| Note on factory setting | gpm, °F |
| Set point SP | -39.4...120 °C -39...248 °F |
| 33.2...2400 l/min | 1.99...144 m³/h |
| Reset point rP | -40...119.4 °C -40...247 °F |
| 20.7...2387.5 l/min | 1.24...143.25 m³/h |
| Analogue start point ASP | -2400...1920 l/min -144...115.2 m³/h -38041...30433 gph -634...507.2 gpm |
| -2400...1920 l/min | -144...115.2 m³/h |
| Analogue end point AEP | -1920...2400 l/min -115.2...144 m³/h -30433...38041 gph -507.2...634 gpm |
| -1920...2400 l/min | -115.2...144 m³/h |
| Low flow cut-off LFC | 20...120 l/min 1.2...7.2 m³/h 317...1902 gph 5.3...31.7 gpm |
| 20...120 l/min | 1.2...7.2 m³/h |
| Frequency end point, FEP | -8...120 °C 17.6...248 °F |
| 481.5...2400 l/min | 28.89...144 m³/h |
| Frequency at the end point FRP[Hz] [Hz] | 1...10000 |
| Pulse length[s] [s] | 0.002...2 |
| Pulse value | 0.1...99990000 I; 0.026…26414563.515 gal |
| -40...120 °C | -40...248 °F |
| 0.1 °C | 0.1 °F |
| -39.4...120 °C | -39...248 °F |
| -40...119.4 °C | -40...247 °F |
| Analogue start point | -40...88 °C -40...190.4 °F |
| -40...88 °C | -40...190.4 °F |
| Analogue end point | -8...120 °C 17.6...248 °F |
| -8...120 °C | 17.6...248 °F |
| Frequency start point, FSP | -40...88 °C -40...190.4 °F |
Accuracy / deviations
| Accuracy (in the measuring range) | water ± (2,0 % MW + 0,5 % MEW) |
|---|---|
| water | ± (2,0 % MW + 0,5 % MEW) |
| Repeatability | ± 0,2 % MEW |
| Accuracy[K] [K] | ± 2,5 (Q > 5 % MEW) |
| Temperature coefficient[% of the span / 10 K] [% of the span / 10 K] | 0,2 |
Response times
| Response time[s] [s] | < 0.5; (dAP = 0, T09) |
|---|---|
| Damping process value dAP[s] [s] | 0...5 |
| Dynamic response T05 / T09[s] [s] | 5,7 / 86 |
Software / programming
| Diagnostic functions | direction of flow detection; signal quality |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| SDCI standard | IEC 61131-9: 2013-07 |
| Profiles | BLOB Binary Large Object transfer Common - I&D Identification and Diagnosis |
| BLOB | Binary Large Object transfer |
| Common - I&D | Identification and Diagnosis |
| Required master port type | A |
| Process data analogue | 3 |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 9.6 |
| IO-Link process data (cyclical) | totaliser 32 Flow monitoring 32 Temperature monitoring 32 status 4 Output 1 1 Output 2 1 |
| totaliser | 32 |
| Flow monitoring | 32 |
| Temperature monitoring | 32 |
| status | 4 |
| Output 1 | 1 |
| Output 2 | 1 |
| Supported DeviceIDs | default 1853 |
| default | 1853 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 69; (DIN EN 60529) |
Tests / approvals
| EMC | DIN 61326-1:2021 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 20 g (11ms) |
| DIN IEC 68-2-27 | 20 g (11ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000Hz) |
| MTTF[years] [years] | 136 |
| UL approval | UL approval no. I038 File number UL E174189 |
| UL approval no. | I038 |
| File number UL | E174189 |
| Pressure Equipment Directive | can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 1689.05 |
|---|---|
| Housing | rectangular |
| Inlet pipe length | 15 x DN |
| Outlet pipe length | 3 x DN |
| Dimensions[mm] [mm] | 220 x 77.5 x 132.3 |
| Materials | housing: stainless steel (316L/1.4404); connector: PEI, FKM |
| Materials (wetted parts) | Pipe section: stainless steel (316L/1.4435); Process connection: stainless steel (316L/1.4404) |
| Nominal diameter | DN65 (2 1/2“) |
| Process connection | Clamp 2,5" DIN 32676 series C (ASME BPE) |
| Process connection suitable for pipe standard | 2,5" / Ø 63,5 mm x 1,65 mm; (DIN 11866 series C); (DIN EN 10357 Series D) |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm (16 µin); Rz = 4 µm (157 µin) |
Displays / operating elements
| Display | operating status 1 x LED, green |
|---|---|
| operating status | 1 x LED, green |
Accessories
| Items supplied | package insert |
|---|
Remarks
| Remarks | MW = measured value MEW = Final value of the measuring range pulse and totaliser signal are only available for one of the two outputs the specified surface characteristics Ra/Rz of the wetted surfaces do not apply to the weld seam. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
