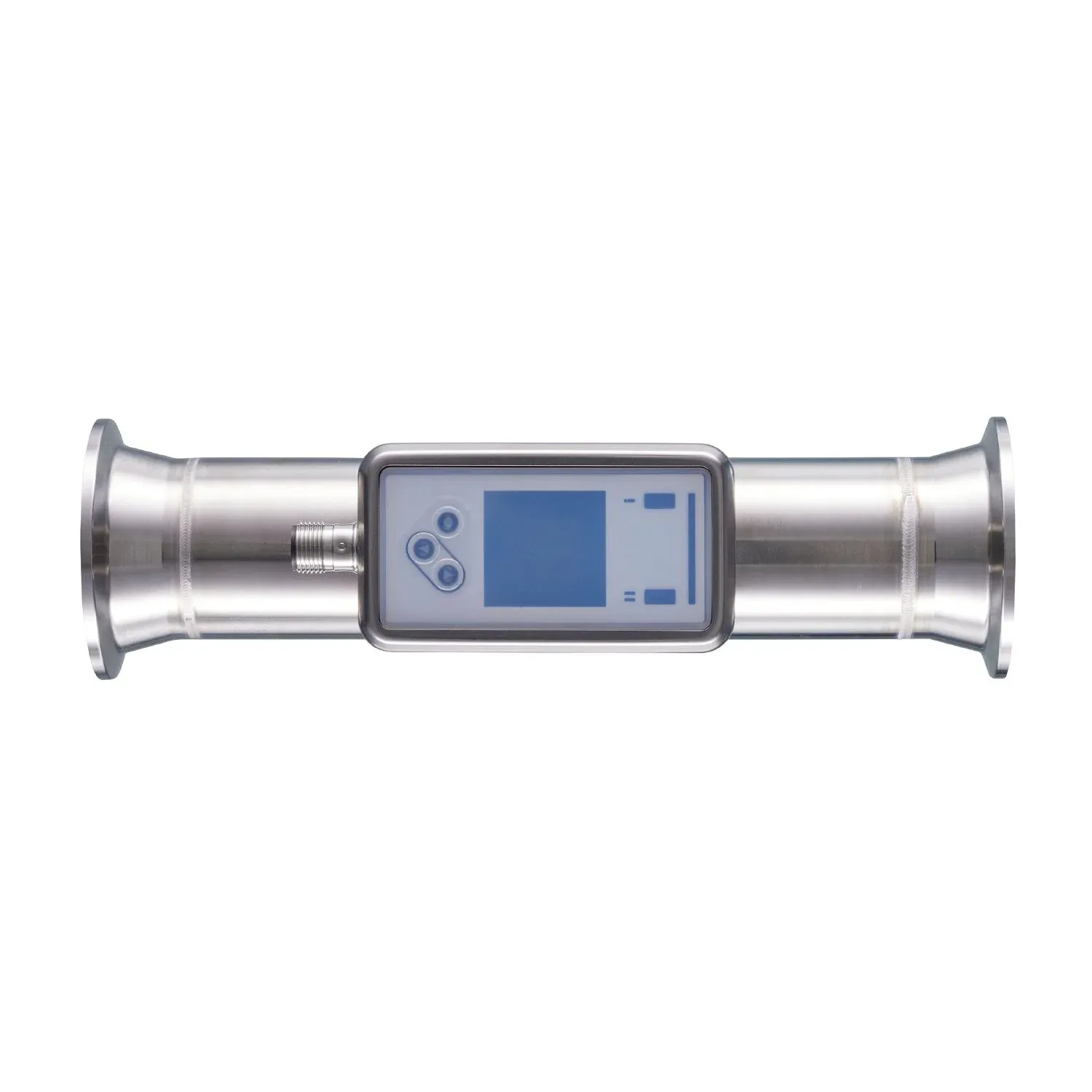

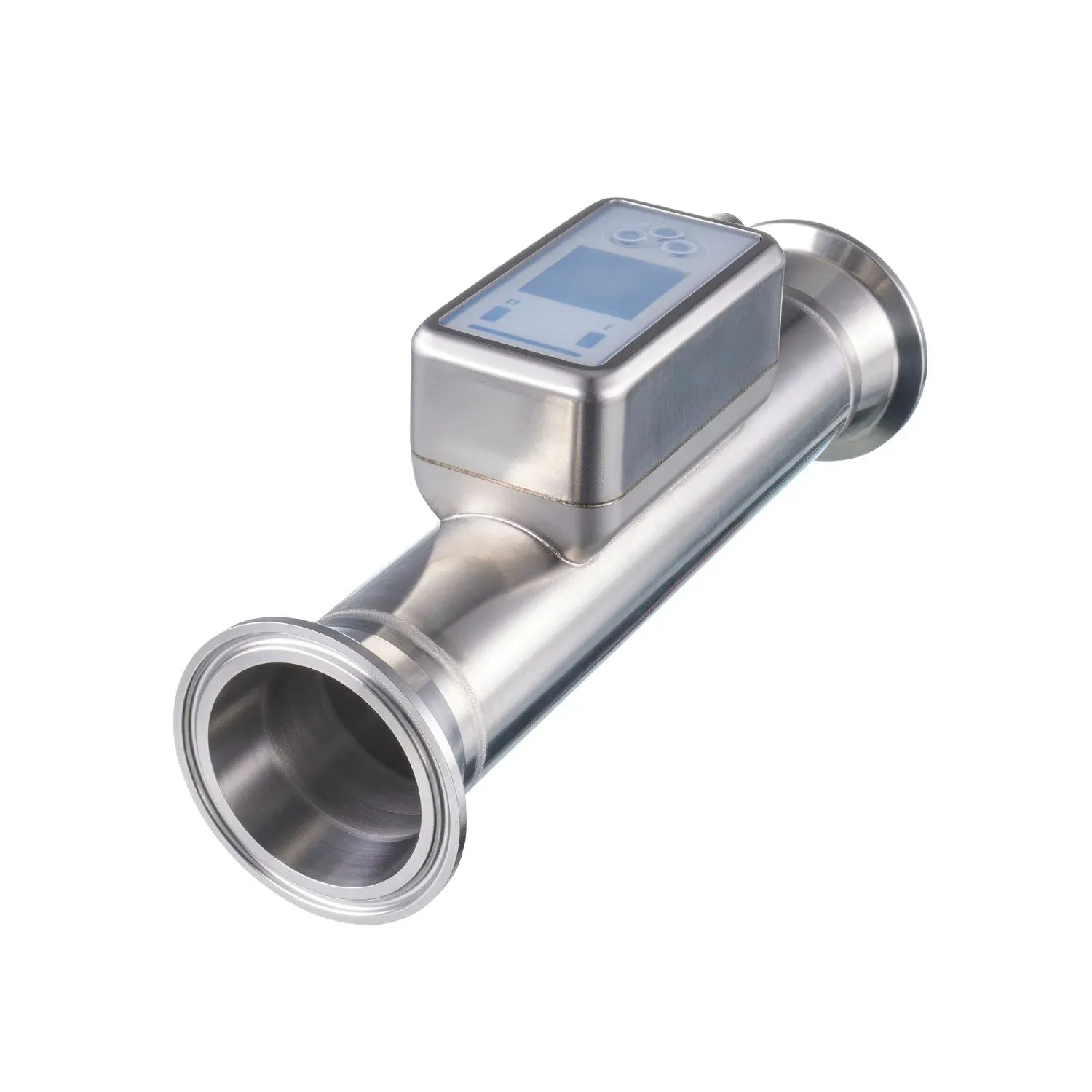

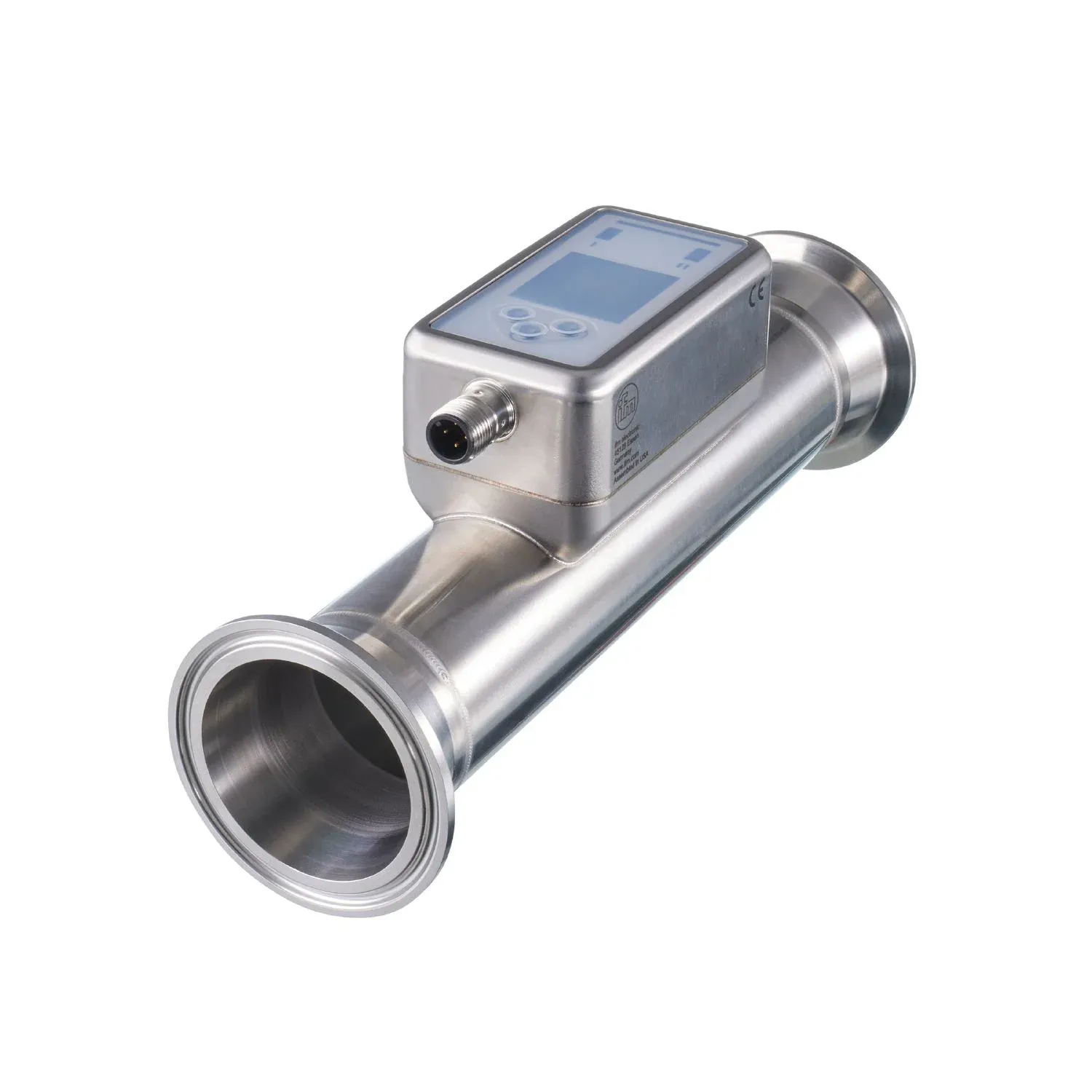

IFM SUH400

SUH400

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Accurate flow measurement of ultrapure water, water and edible oils
A robust, component-free measuring pipe made of stainless steel offers high media resistance and permanent ingress resistance
The highly accurate inline measurement process eliminates any influence of varying wall thicknesses and pipe materials
Operating status LED signals the sensor status and allows conclusions about process quality
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Measuring range5...1000 l/min
300...60000 l/h
0.058...11.666 m/s
0.3...60 m³/h
5...1000 l/min300...60000 l/h
Nominal diameterDN50 (2“)
Process connectionClamp 2" DIN 32676 series C (ASME BPE)

Application

Special featureGold-plated contacts
Mediaultra-pure water; water; hydrous media; edible oils
Note on mediahydrous media: for media with >10 % additives, the repeatability is the only available value
edible oils: palm oil, soy oil, rapeseed oil, sunflower oil, peanut oil, olive oil and others
Medium temperature[°C] [°C]-20...100
Min. burst pressure75 bar
7.5 MPa
75 bar7.5 MPa
Pressure rating25 bar
2.5 MPa
25 bar2.5 MPa
Note on pressure ratingtake into account the pressure resistance of the bracket and the seal used for clamp connection
Vacuum resistance[mbar] [mbar]-1000

Electrical data

Operating voltage[V] [V]18...32 DC; (to SELV/PELV)
Current consumption[mA] [mA]< 75
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]5
Measuring principleultrasonic

Inputs / outputs

Total number of inputs and outputs2

Inputs

InputsOUT2
counter reset
OUT2counter reset

Outputs

Total number of outputs2
Output signalOUT1
switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link
OUT2
switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal
OUT1switching signal; pulse signal; diagnostic signal; totaliser switching signal; frequency signal; IO-Link
OUT2switching signal; pulse signal; diagnostic signal; totaliser switching signal; analogue signal
Electrical designPNP/NPN
Min. load resistance[Ω] [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes
Number of analogue outputs1
Analogue current output[mA] [mA]4...20
Max. load[Ω] [Ω]500
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]0...10000

Measuring/setting range

Measuring range5...1000 l/min
300...60000 l/h
0.058...11.666 m/s
0.3...60 m³/h
5...1000 l/min300...60000 l/h
Display range-1200...1200 l/min
-72000...72000 l/h
-13.999...13.999 m/s
-72...72 m³/h
-1200...1200 l/min-72000...72000 l/h
Resolution0.1 l/min
1 l/h
0.001 m/s
0.002 m³/h
0.1 l/min1 l/h
Set point SP10.5...1000 l/min
630...60000 l/h
0.122...11.666 m/s
0.63...60 m³/h
10.5...1000 l/min630...60000 l/h
Reset point rP5.3...994.8 l/min
318...59688 l/h
0.062...11.605 m/s
0.318...59.688 m³/h
5.3...994.8 l/min318...59688 l/h
Analogue start point ASP-1000...800 l/min
-60000...48000 l/h
-11.666...9.333 m/s
-60...48 m³/h
-1000...800 l/min-60000...48000 l/h
Analogue end point AEP-800...1000 l/min
-48000...60000 l/h
-9.333...11.666 m/s
-48...60 m³/h
-800...1000 l/min-48000...60000 l/h
Low flow cut-off LFC5...50 l/min
300...3000 l/h
0.058...0.583 m/s
0.3...3 m³/h
5...50 l/min300...3000 l/h
Frequency end point, FEP200.6...1000 l/min
12037...60000 l/h
2.34...11.666 m/s
12.037...60 m³/h
200.6...1000 l/min12037...60000 l/h
Frequency at the end point FRP[Hz] [Hz]1...10000
Pulse length[s] [s]0.002...2
Pulse value0.1...99990000 I
Measuring range[°C] [°C]-20...100
Display range[°C] [°C]-44...124
Resolution[°C] [°C]0.1
Set point SP[°C] [°C]-19.6...100
Reset point rP[°C] [°C]-20...99.6
Analogue start point[°C] [°C]-20...76
Analogue end point[°C] [°C]4...100
Frequency start point, FSP[°C] [°C]-20...76
Frequency end point, FEP[°C] [°C]4...100

Accuracy / deviations

Accuracy (in the measuring range)edible oils
± (5,0 % MW + 1,0 % MEW)
water
± (1,0 % MW + 0,5 % MEW)
edible oils± (5,0 % MW + 1,0 % MEW)
water± (1,0 % MW + 0,5 % MEW)
Repeatability± 0,2 % MEW
Accuracy[K] [K]± 2,5 (Q > 5 % MEW)
Temperature coefficient[% of the span / 10 K] [% of the span / 10 K]0,2

Response times

Response time[s] [s]< 0.25; (dAP = 0, T09)
Damping process value dAP[s] [s]0...5
Dynamic response T05 / T09[s] [s]5,7 / 86

Software / programming

Diagnostic functionsdirection of flow detection; signal quality

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1.3
SDCI standardIEC 61131-9: 2013-07
ProfilesBLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
Required master port typeA
Process data analogue3
Process data binary2
Min. process cycle time[ms] [ms]9.6
IO-Link process data (cyclical)totaliser
32
Flow monitoring
32
Temperature monitoring
32
status
4
Output 1
1
Output 2
1
totaliser32
Flow monitoring32
Temperature monitoring32
status4
Output 11
Output 21
Supported DeviceIDsdefault
1752
default1752

Operating conditions

Ambient temperature[°C] [°C]-20...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 69K

Tests / approvals

EMCDIN 61326-1:2021
CPA approvalmodel number
003US
accuracy class
1,5
model number003US
accuracy class1,5
Shock resistanceDIN IEC 68-2-27
20 g (11ms)
DIN IEC 68-2-2720 g (11ms)
Vibration resistanceDIN IEC 68-2-6
20 g (10...2000Hz)
DIN IEC 68-2-620 g (10...2000Hz)
MTTF[years] [years]160
UL approvalUL approval no.
I033
File number UL
E174189
UL approval no.I033
File number ULE174189
Pressure Equipment Directivecan be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]933
Housingrectangular
Inlet pipe length5 x DN
Outlet pipe length1 x DN
Dimensions[mm] [mm]220 x 63.9 x 92.6
Materialshousing: stainless steel (316L/1.4404); Display: PFA; Sealing Display: FKM; connector: PBT
Materials (wetted parts)Pipe section: stainless steel (316L/1.4404)
Nominal diameterDN50 (2“)
Process connectionClamp 2" DIN 32676 series C (ASME BPE)
Process connection suitable for pipe standard2" / Ø 50,8 mm x 1,65 mm (DIN 11866 series C); (DIN EN 10357 Series D)
Surface characteristics Ra/Rz of the wetted partsRa < 0.8 μm

Displays / operating elements

Displaycolour display 1,44", 128 x 128 pixels
Switching function
2 x LED, yellow
diagnosis
1 x LED, three-colour
Switching function2 x LED, yellow
diagnosis1 x LED, three-colour

Remarks

RemarksMW = measured value
MEW = Final value of the measuring range
pulse and totaliser signal are only available for one of the two outputs
the accuracy indications are adhered to over the entire application area
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; Contacts: gold-plated
