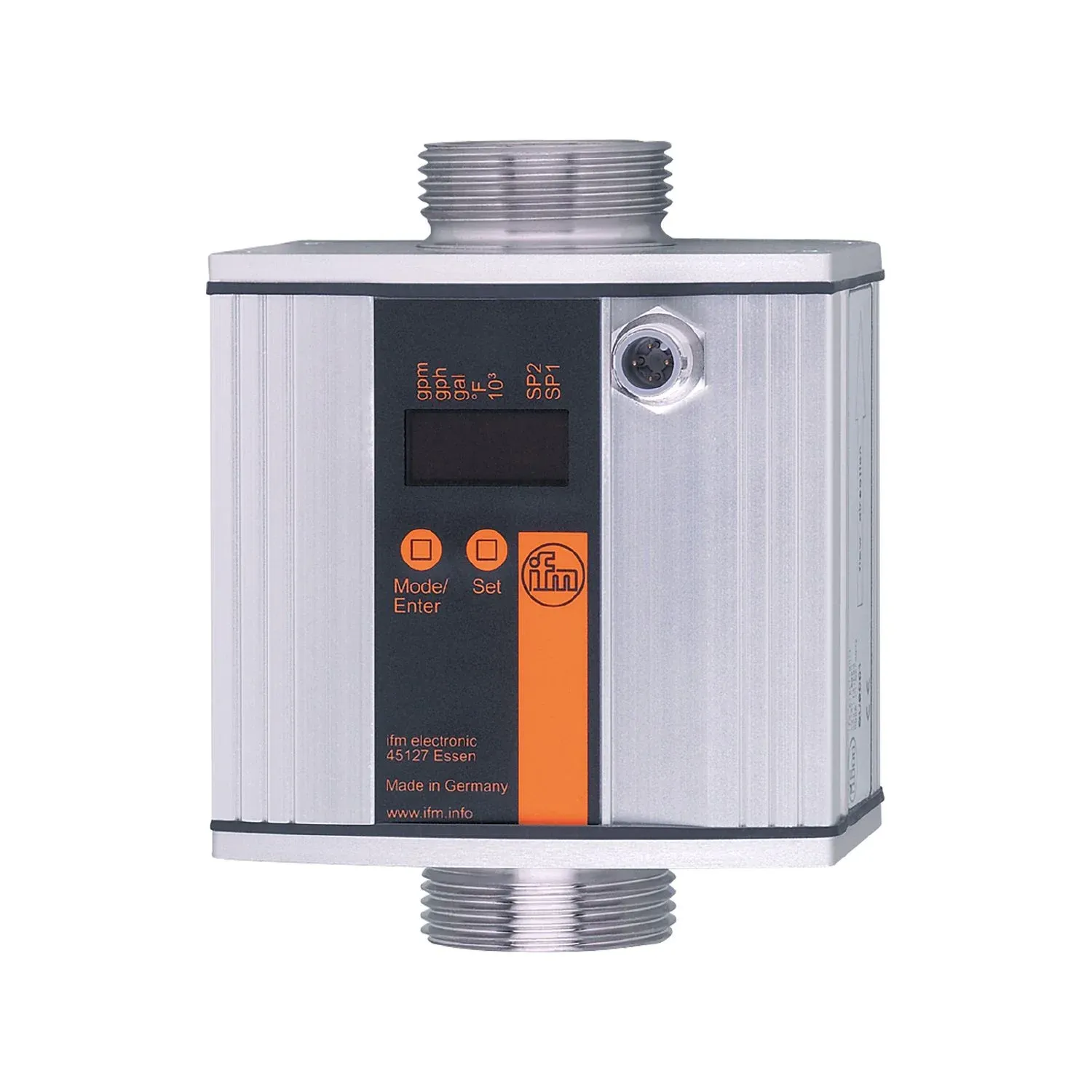

IFM SU9004
SU9004
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of flow and medium temperature
Suitable for water, oils and glycol solutions
For installation in pipes
With two scalable analogue outputs
Clearly visible 4-digit LED display
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|---|
| Measuring range | 0...200 l/min 0...52.84 gpm |
| 0...200 l/min | 0...52.84 gpm |
| Process connection | threaded connection G 1 1/4 external thread flat seal |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Installation | connection to pipe by means of an adapter |
| Media | water; glycol solutions; coolants; oils |
| Note on media | low-viscosity oils with viscosity: 7...40 mm²/s (40 °C) high-viscosity oils with viscosity: 30...68 mm²/s (40 °C) |
| Medium temperature[°C] [°C] | -10...80 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Electrical data
| Operating voltage[V] [V] | 19...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | 100 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 10 |
| Measuring principle | ultrasonic |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 2 |
| Analogue current output[mA] [mA] | 4...20; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0...200 l/min 0...52.84 gpm |
|---|---|
| 0...200 l/min | 0...52.84 gpm |
| Display range | 0...240 l/min 0...63.42 gpm |
| 0...240 l/min | 0...63.42 gpm |
| Resolution | 0.1 l/min 0.02 gpm |
| 0.1 l/min | 0.02 gpm |
| Analogue start point ASP | 0...160 l/min 0...42.28 gpm |
| 0...160 l/min | 0...42.28 gpm |
| Analogue end point AEP | 40...200 l/min 10.28...52.84 gpm |
| 40...200 l/min | 10.28...52.84 gpm |
| Max. flow rate[l/min] [l/min] | 220 |
| In steps of | 0.1 l/min 0.02 gpm |
| Measuring range[°C] [°C] | -10...80 |
| Resolution[°C] [°C] | 0.2 |
| Analogue start point[°C] [°C] | -10...62 |
| Analogue end point[°C] [°C] | 8...80 |
| In steps of[°C] [°C] | 0.2 |
Accuracy / deviations
| Accuracy (in the measuring range) | water: < ± (3 % MW + 0,2 % MEW); glycol (35 %), oil (viscosity 68 mm²/s at 40 °C): < ± (8 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | 1 l/min; 60 l/h; 0,05 gpm; 3 gph |
| Accuracy[K] [K] | ± 3 (Q > 20 l/min) |
Response times
| Response time[s] [s] | 0.25; (dAP = 0) |
|---|---|
| Damping process value dAP[s] [s] | 0...1 |
| Dynamic response T05 / T09[s] [s] | T09 = 30 (Q > 20 l/min); (water) |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV EN 61000-4-6 HF conducted 10 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5 kV |
| EN 61000-4-6 HF conducted | 10 V |
| CPA approval | model number 001US accuracy class 3 maximum allowable error - Q (min) 0,3 m³/h Q (t) 0,84 m³/h Q (max) 12 m³/h |
| model number | 001US |
| accuracy class | 3 |
| maximum allowable error | - |
| Q (min) | 0,3 m³/h |
| Q (t) | 0,84 m³/h |
| Q (max) | 12 m³/h |
| Shock resistance | DIN IEC 68-2-27 20 g (11 ms) |
| DIN IEC 68-2-27 | 20 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 5 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 5 g (10...2000 Hz) |
| MTTF[years] [years] | 203 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 1883 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 130 x 100 x 80.5 |
| Materials | housing: AlMgSi0,5 anodised; Sealing: FKM; PA 6.6; cover film: PA |
| Materials (wetted parts) | Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal; FKM; PPS |
| Process connection | threaded connection G 1 1/4 external thread flat seal |
Displays / operating elements
| Display | Display unit 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) measured values alphanumeric display, 4-digit programming alphanumeric display, 4-digit |
|---|---|
| Display unit | l/min; m³/h; gpm; gph; °C; °F |
| measured values | alphanumeric display, 4-digit |
| programming | alphanumeric display, 4-digit |
Accessories
| Items supplied | sealings: 2, Centellen |
|---|---|
| Accessories (optional) | adapter for pipe: 1 x R 1, stainless steel, E40205 adapter for pipe: 1 x 1" NPT, stainless steel, E40206 |
Remarks
| Remarks | sealing: only with supplied Centellen seals MW = measured value MEW = Final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Moulded body: brass, Optalloy-plated; Contacts: gold-plated |
|---|
