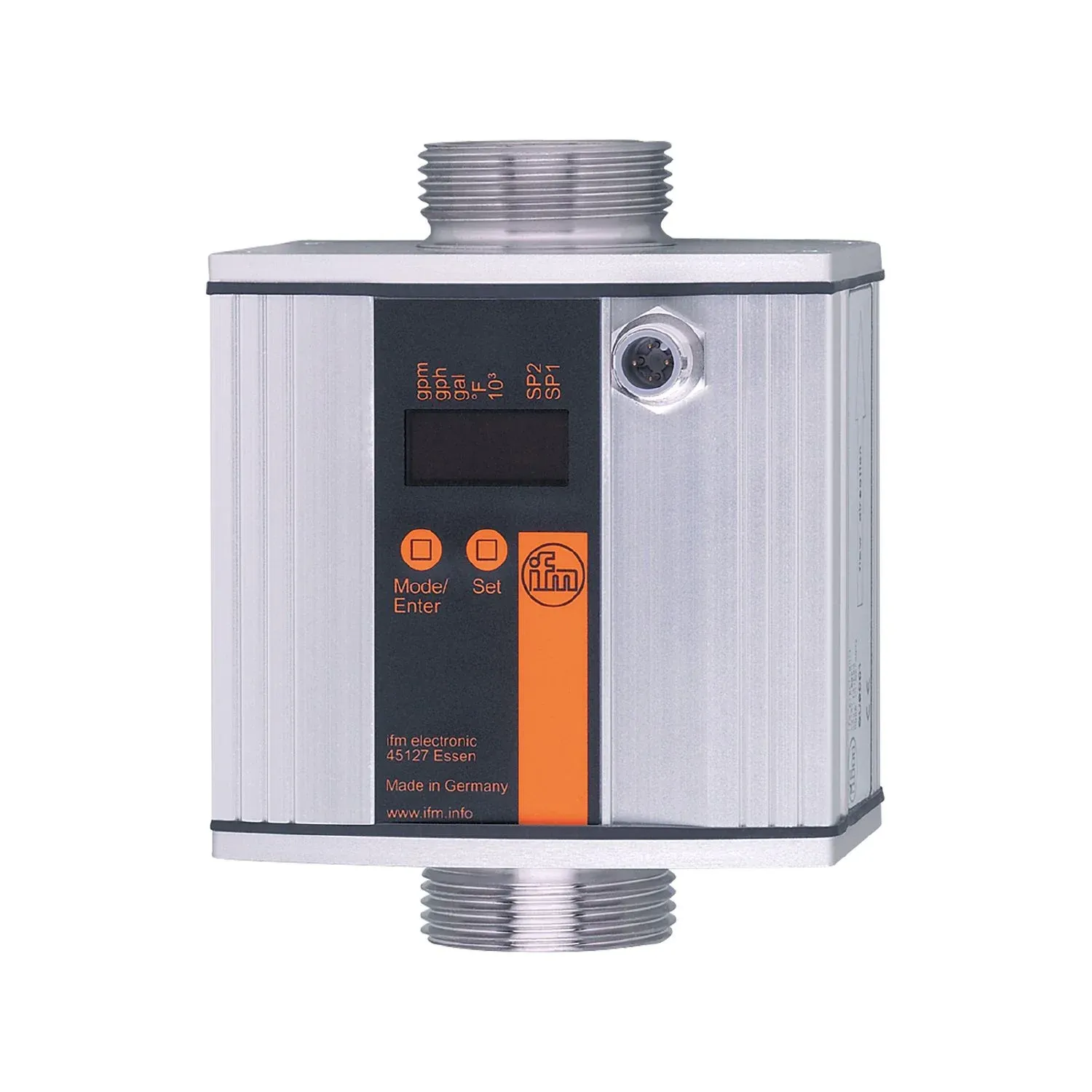

IFM SU9000

SU9000

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Precise measurement of flow, consumption and medium temperature
Suitable for water, oils and glycol solutions
For installation in pipes
With switching output, analogue output and pulse output
Clearly visible 4-digit LED display

Specification

Product characteristics

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1
Measuring range0...200 l/min
0...12 m³/h
0...200 l/min0...12 m³/h
Process connectionthreaded connection G 1 1/4 external thread flat seal

Application

Special featureGold-plated contacts
Applicationtotaliser function; for industrial applications
Installationconnection to pipe by means of an adapter
Mediawater; glycol solutions; coolants; oils
Note on medialow-viscosity oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30...68 mm²/s (40 °C)
Medium temperature[°C] [°C]-10...80
Pressure rating16 bar
1.6 MPa
16 bar1.6 MPa

Electrical data

Operating voltage[V] [V]19...30 DC; (to SELV/PELV)
Current consumption[mA] [mA]100
Min. insulation resistance[MΩ] [MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]10
Measuring principleultrasonic

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2; Number of analogue outputs: 1

Inputs

Inputscounter reset

Outputs

Total number of outputs2
Output signalswitching signal; analogue signal; pulse signal; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2
Permanent current rating of switching output DC[mA] [mA]250; (per output)
Number of analogue outputs1
Analogue current output[mA] [mA]4...20; (scalable)
Max. load[Ω] [Ω]500
Analogue voltage output[V] [V]0...10; (scalable)
Min. load resistance[Ω] [Ω]2000
Pulse outputflow rate meter
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Measuring/setting range

Measuring range0...200 l/min
0...12 m³/h
0...200 l/min0...12 m³/h
Display range0...240 l/min
0...14.4 m³/h
0...240 l/min0...14.4 m³/h
Resolution0.1 l/min
0.01 m³/h
0.1 l/min0.01 m³/h
Set point SP0.4...200 l/min
0.02...12 m³/h
0.4...200 l/min0.02...12 m³/h
Reset point rP0...199.6 l/min
0...11.98 m³/h
0...199.6 l/min0...11.98 m³/h
Analogue start point ASP0...160 l/min
0...9.6 m³/h
0...160 l/min0...9.6 m³/h
Analogue end point AEP40...200 l/min
2.4...12 m³/h
40...200 l/min2.4...12 m³/h
Max. flow rate220 l/min
13.2 m³/h
220 l/min13.2 m³/h
In steps of0.1 l/min
0.01 m³/h
Pulse value0.1 l...100000 m³
Pulse length[s] [s]0,0125...2
Measuring range[°C] [°C]-10...80
Resolution[°C] [°C]0.2
Set point SP[°C] [°C]-9.8...80
Reset point rP[°C] [°C]-10...79.8
Analogue start point[°C] [°C]-10...62
Analogue end point[°C] [°C]8...80
In steps of[°C] [°C]0.2

Accuracy / deviations

Accuracy (in the measuring range)water: < ± (3 % MW + 0,2 % MEW); glycol (35 %), oil (viscosity 68 mm²/s at 40 °C): < ± (8 % MW + 0,5 % MEW)
Repeatability1 l/min; 60 l/h; 0,06 m³ /h
Accuracy[K] [K]± 3 (Q > 20 l/min)

Response times

Response time[s] [s]0.25; (dAP = 0)
Delay time programmable dS, dr[s] [s]0...50
Damping process value dAP[s] [s]0...1
Dynamic response T05 / T09[s] [s]T09 = 30 (Q > 20 l/min); (water)

Software / programming

Parameter setting optionsFlow monitoring; quantity meter; Preset counter; Temperature monitoring

Operating conditions

Ambient temperature[°C] [°C]-10...60
Storage temperature[°C] [°C]-25...80
ProtectionIP 67

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-5 Surge0,5 kV
EN 61000-4-6 HF conducted10 V
CPA approvalmodel number
001US
accuracy class
3
maximum allowable error
-
Q (min)
0,3 m³/h
Q (t)
0,84 m³/h
Q (max)
12 m³/h
model number001US
accuracy class3
maximum allowable error-
Q (min)0,3 m³/h
Q (t)0,84 m³/h
Q (max)12 m³/h
Shock resistanceDIN IEC 68-2-27
20 g (11 ms)
DIN IEC 68-2-2720 g (11 ms)
Vibration resistanceDIN IEC 68-2-6
5 g (10...2000 Hz)
DIN IEC 68-2-65 g (10...2000 Hz)
MTTF[years] [years]185
Pressure Equipment DirectiveSound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight[g] [g]1906.5
Housingrectangular
Dimensions[mm] [mm]130 x 100 x 80.5
Materialshousing: AlMgSi0,5 anodised; Sealing: FKM; PA 6.6; cover film: PA
Materials (wetted parts)Pipe section: stainless steel (316L/1.4404); Process connection sealing: NBR reinforced fibre Flat seal; FKM; PPS
Process connectionthreaded connection G 1 1/4 external thread flat seal

Displays / operating elements

DisplayDisplay unit
6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status
2 x LED, yellow
measured values
alphanumeric display, 4-digit
programming
alphanumeric display, 4-digit
Display unit6 x LED, green (l/min, m³/h, l, m³, 10³, °C)
switching status2 x LED, yellow
measured valuesalphanumeric display, 4-digit
programmingalphanumeric display, 4-digit

Accessories

Items suppliedsealings: 2, Centellen
Accessories (optional)adapter for pipe: 1 x R 1, stainless steel, E40205

Remarks

Remarkssealing: only with supplied Centellen seals
MW = measured value
MEW = Final value of the measuring range
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A; Moulded body: brass, Optalloy-plated; Contacts: gold-plated
